Northtech NT 12-1100RP Dual Head Wide Belt Sander
Overview
Description
This is a very robust machine. It weighs more than most 3 head machines. With its 12″ diameter 30 hp first head, 25 hp combination second head, and feed speeds of 20-90 FPM it will sand efficiently and cost-effectively.
Specifications
Machine Hp. = 60 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 72 Amps
Configuration = Roller, Pad
1st Head = 30 Hp. 12” Spiral Fluted 70 D
2nd Head = 25 Hp. 3-1/4” Pad
Brush Motor Hp. = 1 Hp.
Feed Hp. = 3 Hp.

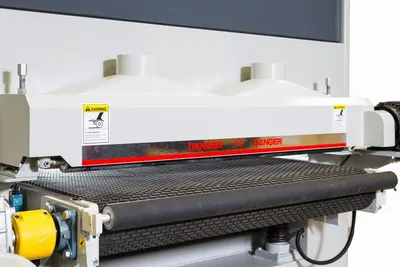

Feed System = 43” Rubber Feed Mat
Drive System = Gear Box Inverter Controlled
Feed Speed = 20 – 90 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 3 Hp.
Elevation Sys. = (4) Post Jack Screw
Elevation Style = Auto Touch Screen Control
Total Hp. = 60 Hp.

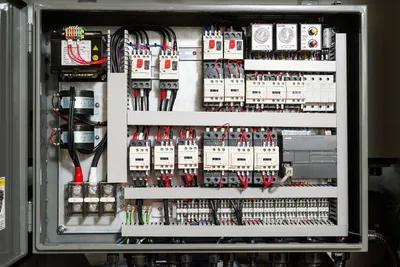

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 230 Volt
Programmable = Elevation
Touch Screen = 8” Digital Touch Screen
Min. Length = 20”
Max. Width = 43”
Min. Thickness = .196”
Max. Thickness = 4-7/8”
Sandpaper Size = 43” x 103”
Platen Specs. = 4” x 43” with 8” Graphite
1st Belt Speed = 4850 FPM
2nd Belt Speed = 2950 FPM
Oscillation Sty = Pneumatic Controlled
Oscillation Rte = 20 Cycles/Minute
Oscillation Trv = 1/2”
Cleaning System = Oscillating Jet Blow Off

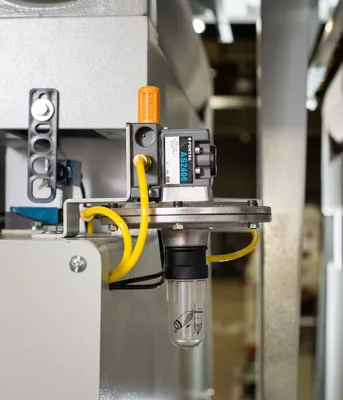

Tracking Style = Pneumatic Dust Proof Eye
Tension Style = Pneumatic
Dust Collection = (10) 5” @ 6810 CFM
Dust Port Out = 5”
Digital Display = Touch Screen 8”
Idle Rollers = (8) Idle Rollers
Pressure Shoes = (3) Sets
Hold Down Style = Spring Loaded Pressure Shoes
Emergency Stop = (1) Push Putton (2) Bars

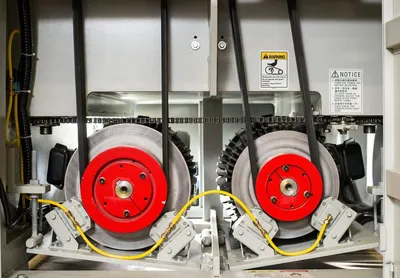

Brake System = (3) Pneumatic Dual Caliper Dis
Frame Const. = 1/2” Steel Construction
Decible Rating = 77 dB
Net Weight = 6,661 Lbs.
Gross Weight = 7,276 Lbs.
Machine Dims. = 88” x 74” x 92”
Packaging Dims = 95” x 79” x 93”
