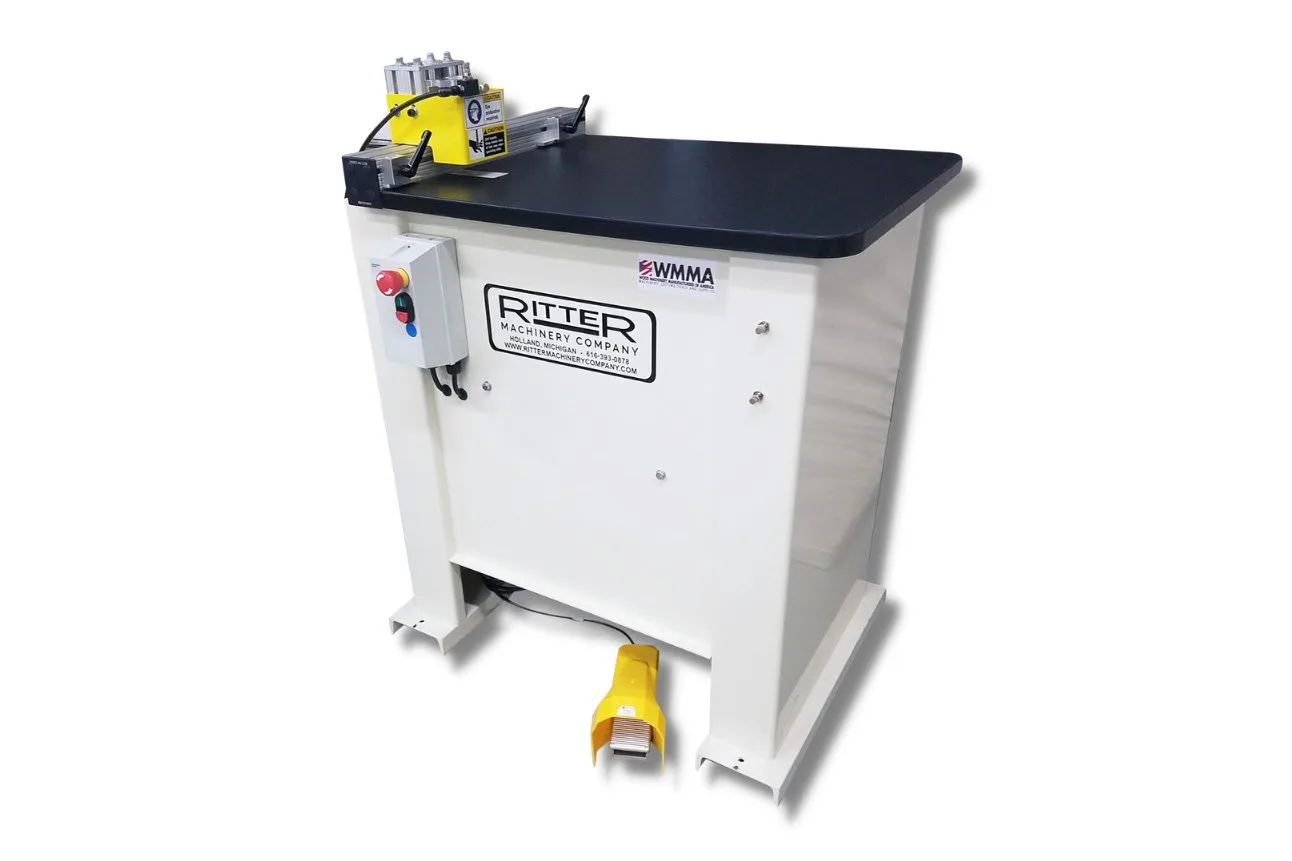

Ritter R200T – Single Spindle Pocket Hole Machine
Overview
Efficient and precise, the RITTER R200T enhances pocket hole joinery with its single spindle design.
1.5 HP Spindle Drive Motor, TEFC
Manual Controls, 1-Phase, 110 V, 60 Hz
Foot Actuated Boring Cycle
14 Degree Single Spindle
6,100 RPM Spindle Speed
Ball Bearing Collet Guide Bushing Block
24” x 30” Table Area
Adjustable Fence with (2) Stops
Tooling Included
Designed and Manufactured in the USA
Additional options for this machine include:
R200T3 – 1.5 HP 3-Phase 230/460 Volt
This machine is used for drilling a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.
Need 2 Spindles? Check out the R220T!
Specs
1.5 HP Spindle Drive Motor: Ensures high performance with consistent power output.
Foot Actuated Boring Cycle: Increases operational efficiency and safety by allowing hands-free use.
14 Degree Single Spindle: Delivers precise and clean pocket holes, ideal for frame joinery.
6,100 RPM Spindle Speed: Provides quick and efficient drilling, reducing project time significantly.
Interchangeable Head with R220T: Offers flexibility and adaptability across different woodworking projects.
