23-Horizontal Gear Driven Spindles
32mm Spindle Centers
10 Mm Bored Collets
(12) Right Hand, (11) Left Hand
3,450 Spindle Rpm
3 H.P. Spindle Drive Motor, TEFC
0-2″ Adjustable Boring Depth
20″ X 42″ Precision Ground Table
Back Fence Lip
(2) End Boring Fences
(1) 5-Ton Carriage Adjusting Jack
(4) 2.00″ Bore Clamping Cylinder
Wired 3-Phase 480 Volt, 60 Hz. (optional single-phase)
Foot Pedal Actuated Boring Cycle
No Tooling Included
Designed And Manufactured In The USA
Crate Dimensions: 54″ X 54″ X 55″ Weight: 1,485 Lbs

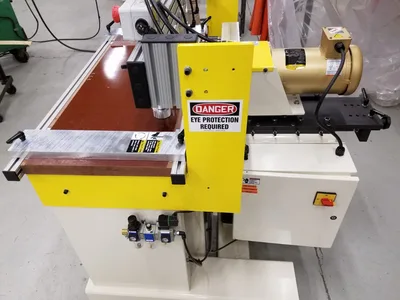

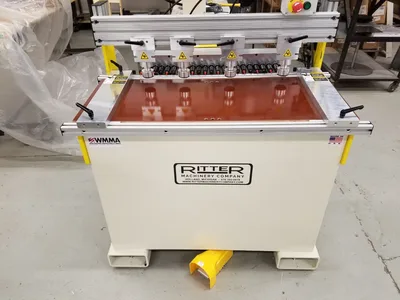

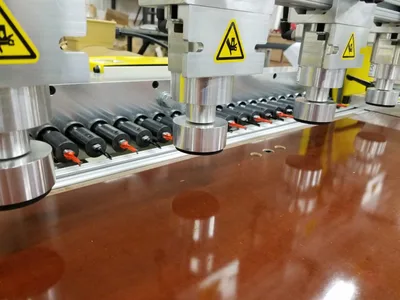

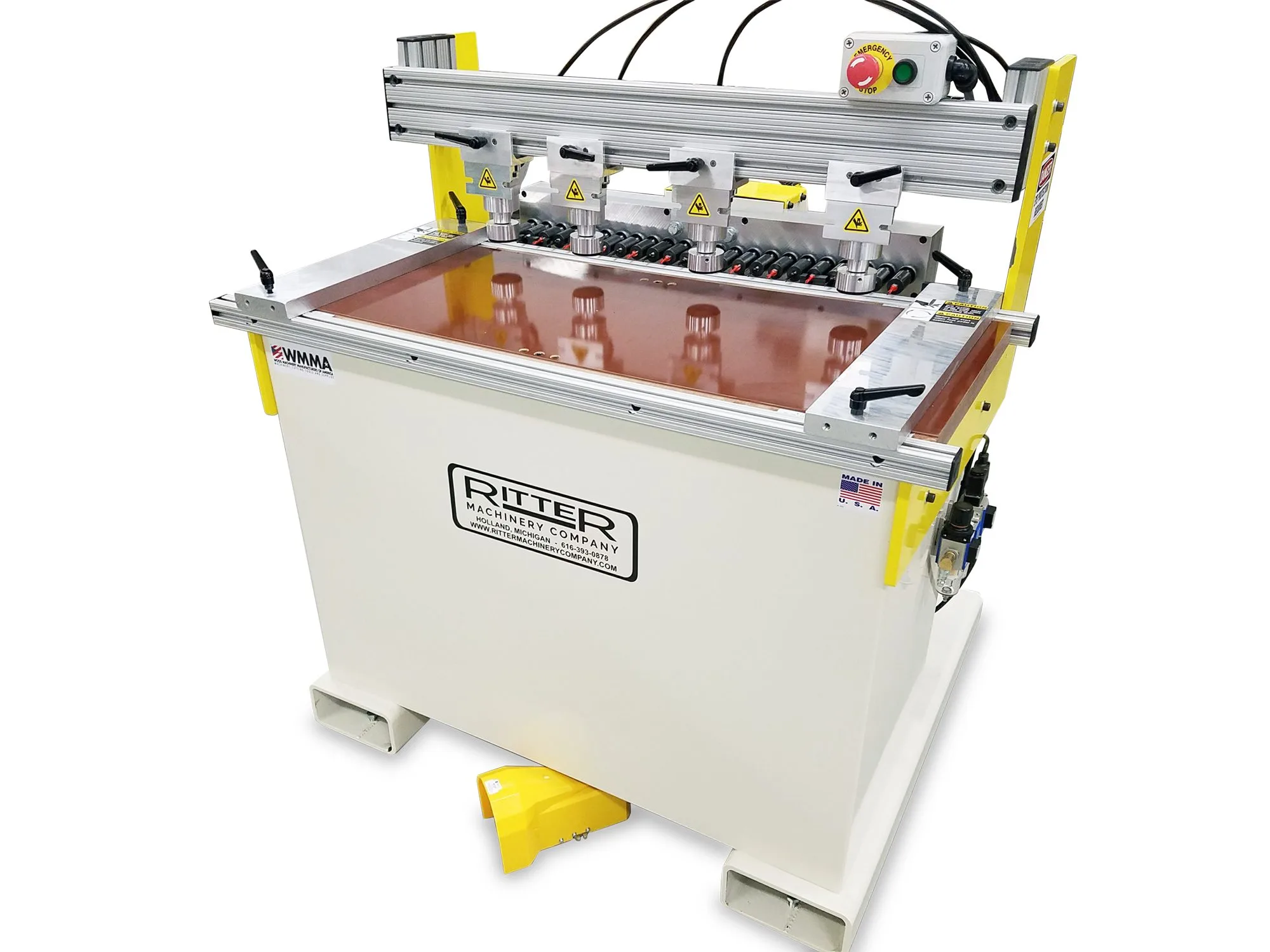

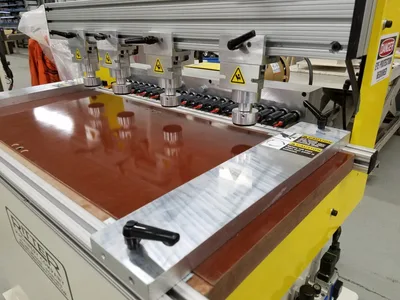

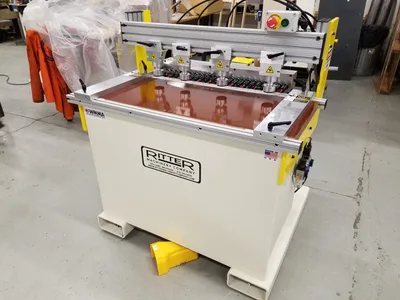

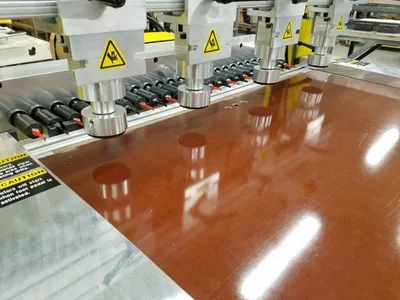

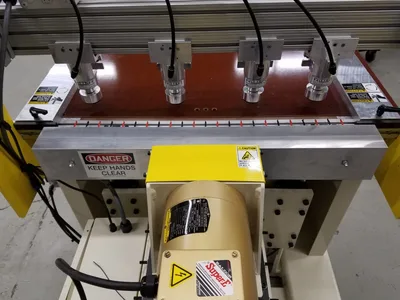

The Ritter R823 is a robust, 23 spindle horizontal borer, designed to be used as a supplemental borer for CNC nested based router and point-to-point borer applications, producing clean and accurate drilling of wood components. The workpiece is held firmly against the table by a pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.
