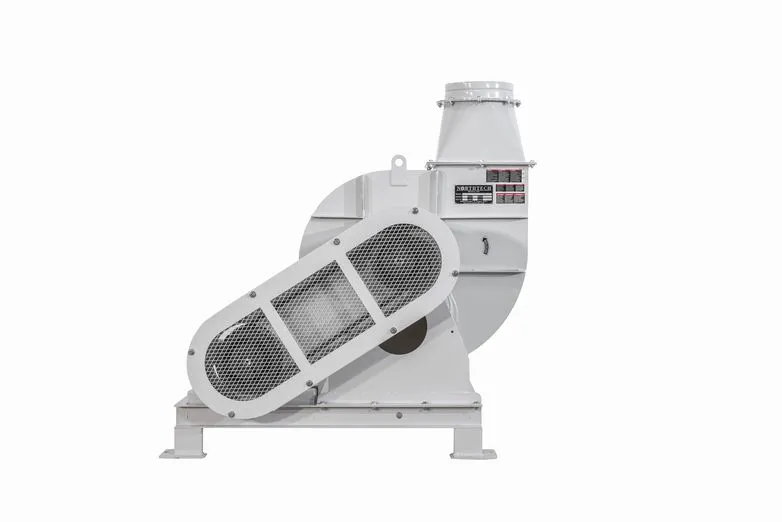

The NT TB5XL-34 5 HP Transfer Blower is a pneumatic conveyance system to transfer bulk waste away from the dust collector—often used in conjunction with a rotary feeder valve. This allows you to feed dust and debris to a remote location of your choosing (e.g. tilt truck, hopper, truck, etc.) — ideal for large commercial shops that produce continuous amounts of waste.
System reliability depends on correctly specifying the flow rate and pressure levels needed to efficiently move the material. Pipe size, distance, and weight of the material being moved must also be considered. Contact us today for help choosing the best system for your need!
Machine Hp. = 5 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 12.9/6.45 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage
Assisted Start = Wye Delta
Dust Port In = 10” Inlet
Dust Port Out = 12” Inlet
Impeller = 6” x 20”
Decible Rating = 77 dB
Net Weight = 606 Lbs.
Gross Weight = 730 Lbs.
Machine Dims. = 53” x 42” x 55”
Packaging Dims = 59” x 43” x 50”
