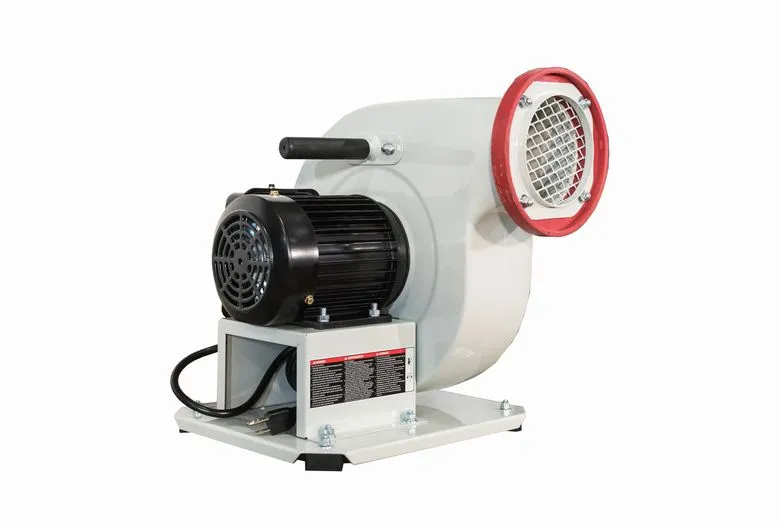

The NT TB1-1 1 HP Transfer Blower is a pneumatic conveyance system to transfer bulk waste away from the dust collector—often used in conjunction with a rotary feeder valve. This allows you to feed dust and debris to a remote location of your choosing (e.g. tilt truck, hopper, truck, etc.) — ideal for large commercial shops that produce continuous amounts of waste.
System reliability depends on correctly specifying the flow rate and pressure levels needed to efficiently move the material. Pipe size, distance, and weight of the material being moved must also be considered. Contact us today for help choosing the best system for your need!
Machine Hp. = 1 hp.
Voltage/ Freq. = 110 Volt 60Hz
Phase = 1 Phase
Amp Requirement = 9.4 Amps
Electronics = CE Approved Components
Control Voltage = 110 Volt
Transfer Inlet = 4” Inlet
Transfer Outlet = 5” Outlet
Frame Const. = Steel Construction
Mobile Unit = Carrying Handle
Decible Rating = 665 dB
Net Weight = 40 Lbs.
Gross Weight = 42 Lbs.
Machine Dims. = 16” x 15” x 18”
Packaging Dims = 16” x 15” x 18”
