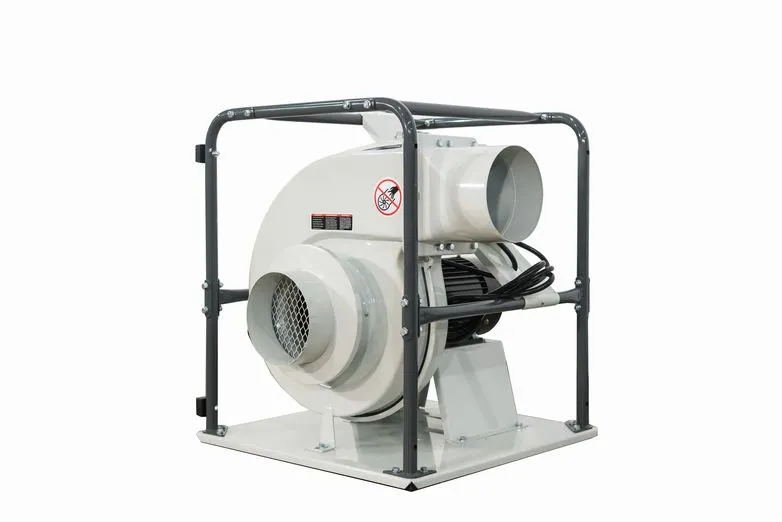

The NT TB2-1 2 HPP Transfer Blower is a pneumatic conveyance system to transfer bulk waste away from the dust collector—often used in conjunction with a rotary feeder valve. This allows you to feed dust and debris to a remote location of your choosing (e.g. tilt truck, hopper, truck, etc.) — ideal for large commercial shops that produce continuous amounts of waste.
System reliability depends on correctly specifying the flow rate and pressure levels needed to efficiently move the material. Pipe size, distance, and weight of the material being moved must also be considered. Contact us today for help choosing the best system for your need!
Machine Hp. = 2 hp.
Voltage/ Freq. = 110 Volt 60Hz
Phase = 1 Phase
Amp Requirement = 20 Amps

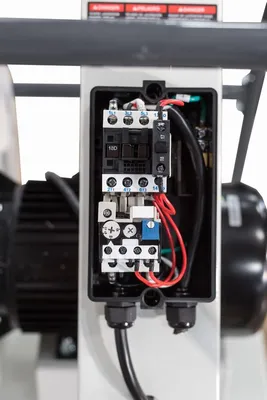

Electronics = CE Approved Components

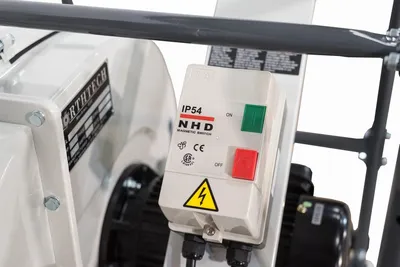

Control Voltage = 110 Volt
Dust Port In = 7” Inlet
Dust Port Out = 7” Outlet
Impeller = 3-1/2” x 12”
Frame Const. = Steel Construction
Decible Rating = 75 dB
Net Weight = 120 Lbs.
Gross Weight = 130 Lbs.
Machine Dims. = 24” x 24” x 28”
Packaging Dims = 25” x 25” x 29”
