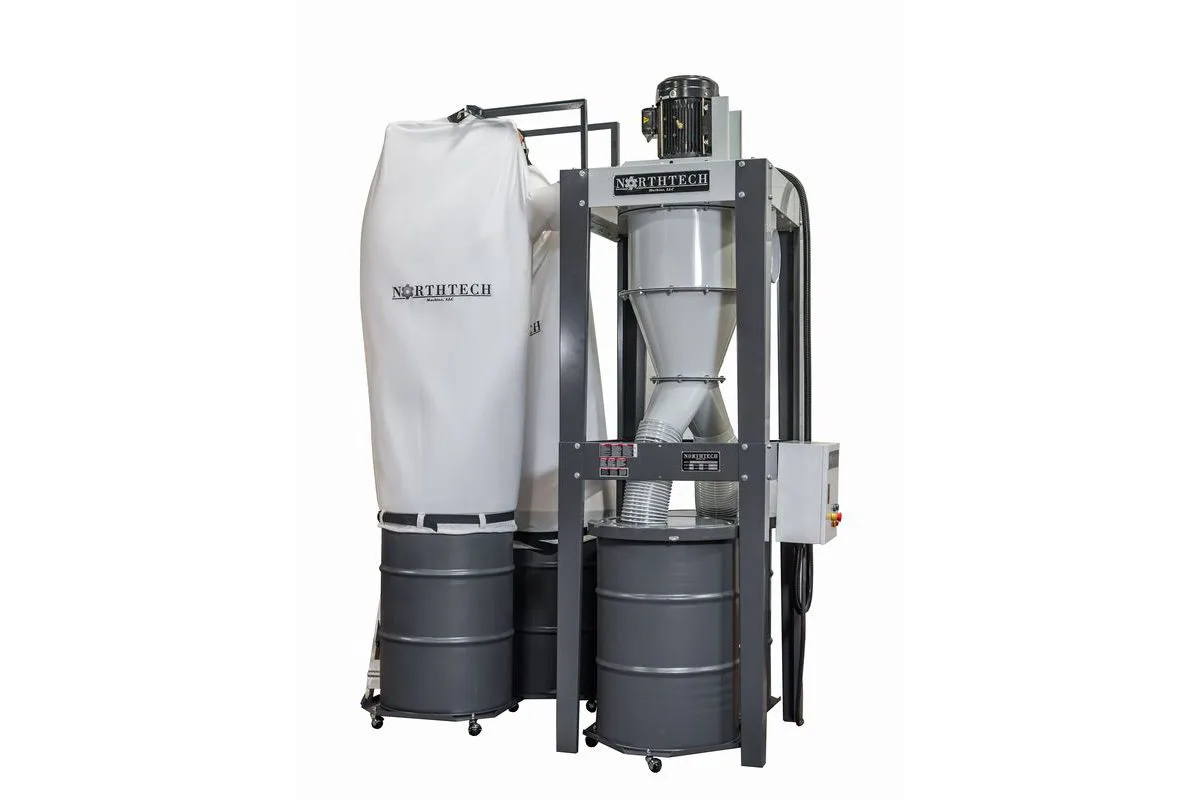

Northtech NT 2ST-10XL 2-Stage 10 HP Dust Collector

Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.
This two-stage dust collector from Northtech uses cyclonic separation to remove larger waste particles from the airstream before sending it to the filter bags, improving efficiency and effectiveness. The 9″ inlet and four (4) outlet dust ports (dual 8″ upper ports, double 7″ lower ports) help maintain the impressive air velocity and CFM produced by the sturdy 10 HP three-phase motor and 17″ steel impeller. This system includes four (4) drum dollies and two (2) 55-gallon drums lids to get you set-up faster and simplify routine maintenance.
Contact us today for help choosing the best dust collector for your shop!

2 Stage filtration
Large diameter cyclone
10HP, 3PH
Air delivery: 5,400 CFM
Airspeed: 9,600 FPM

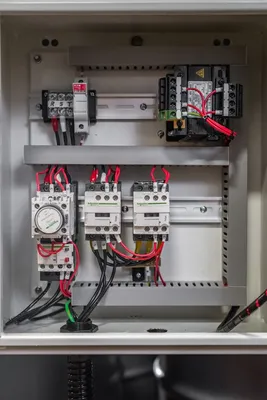

Centralized controls inside dust-proof enclosure
(2) 24” x 69” Filter bags
(4) 55-gallon drum dollies included
(2) 55-gallon drum lids included
(1) Toolbox
Machine weight: 668 lbs.
Machine dimensions: (L) 56″ x (W) 45″ x (H) 107″
Warranty is one-year parts
All machines are tested stateside before shipment providing trouble-free start-up.

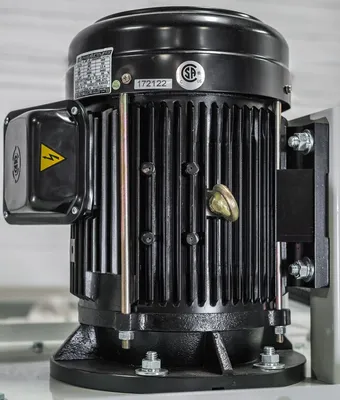

Main Motor Hp. = 10 hp.
Direct Drive = Direct Drive
Machine Hp. = 10 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 24.7/12.35 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage
Assisted Start = Wye-Delta
Dust Port In = (1) 9” Inlet
Dust Port Out = (2) 8” Top (2) 7” Bottom
Free Air CFM = 5400 CFM
Impeller = 17” Steel Impeller
Frame Const. = 1/8” Steel Construction
Upper Bags = 8” x 24” x 69”
Cyclone Diam. = 20” I.D.
No. of Barrels = 4 Barrels (Not Included)
No. of Dollies = 4 Barrel Dollies
Decible Rating = 94 dB
Net Weight = 668 Lbs.
Gross Weight = 718 Lbs.
Machine Dims. = 56” x 45” x 107”
Packaging Dims = 72” x 40” x 31”
