Northtech NT 2ST-15XL 2-Stage 15 HP Dust Collector

Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.
This two-stage dust collector from Northtech uses cyclonic separation to remove larger waste particles from the airstream before sending it to the filter bags, improving efficiency and effectiveness. The 12″ inlet and dual 10″ outlet dust ports help maintain the air velocity and CFM produced by the substantial 15 HP three-phase motor and large 25″ steel impeller. This system includes three (3) 55-gallon drum lids and five (5) drum dollies to get you set-up faster and simplify routine maintenance.
Contact us today for help choosing the best dust collector for your shop!

2 Stage filtration
Large diameter cyclone
15HP, 3PH
Inlet diameter: 12”
Air delivery: 6,200 CFM
Airspeed: 7,800 FPM

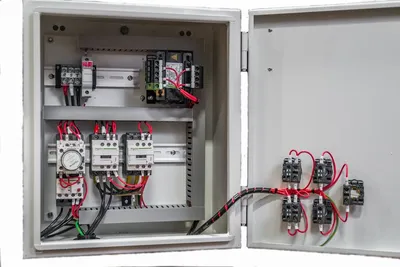

Centralized controls inside dust proof enclosure
(2) 10” x 24” x 90-1/2” Filter bags
(5) 55-gallon drum dollies included
(3) 55-gallon drum lids included
(1) Toolbox
Machine weight N.W./G.W.: 1000/1165 lbs.
Machine dimensions: (L) 80″ x (W) 61″ x (H) 138″
Packing dimensions: (L) 51” x (W) 48” x (H) 73”
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.

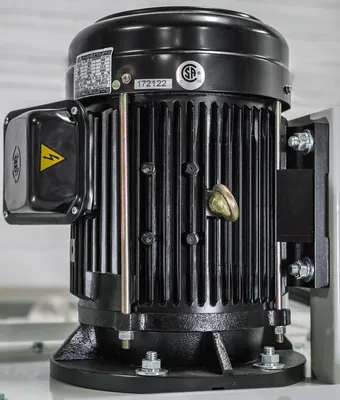

Main Motor Hp. = 15 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 36/18 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage
Assisted Start = Wye-Delta
Dust Port In = 12” Inlet
Dust Port Out = (3) 7” Bottom (2) 10” Top
Free Air CFM = 6200 CFM
Impeller = 25” Steel Impeller
Frame Const. = 1/8” Steel Construction
Upper Bags = 10” X 24” X 90.5”
Cyclone Diam. = 35” I.D.
No. of Barrels = 5 Barrels (Not Included)
No. of Dollies = 5 Barrel Dollies
Decible Rating = 89 dB
Net Weight = 1000 Lbs.
Gross Weight = 1165 Lbs.
Machine Dims. = 80” x 61” x 138”
Packaging Dims = 51” x 48” x 73”
