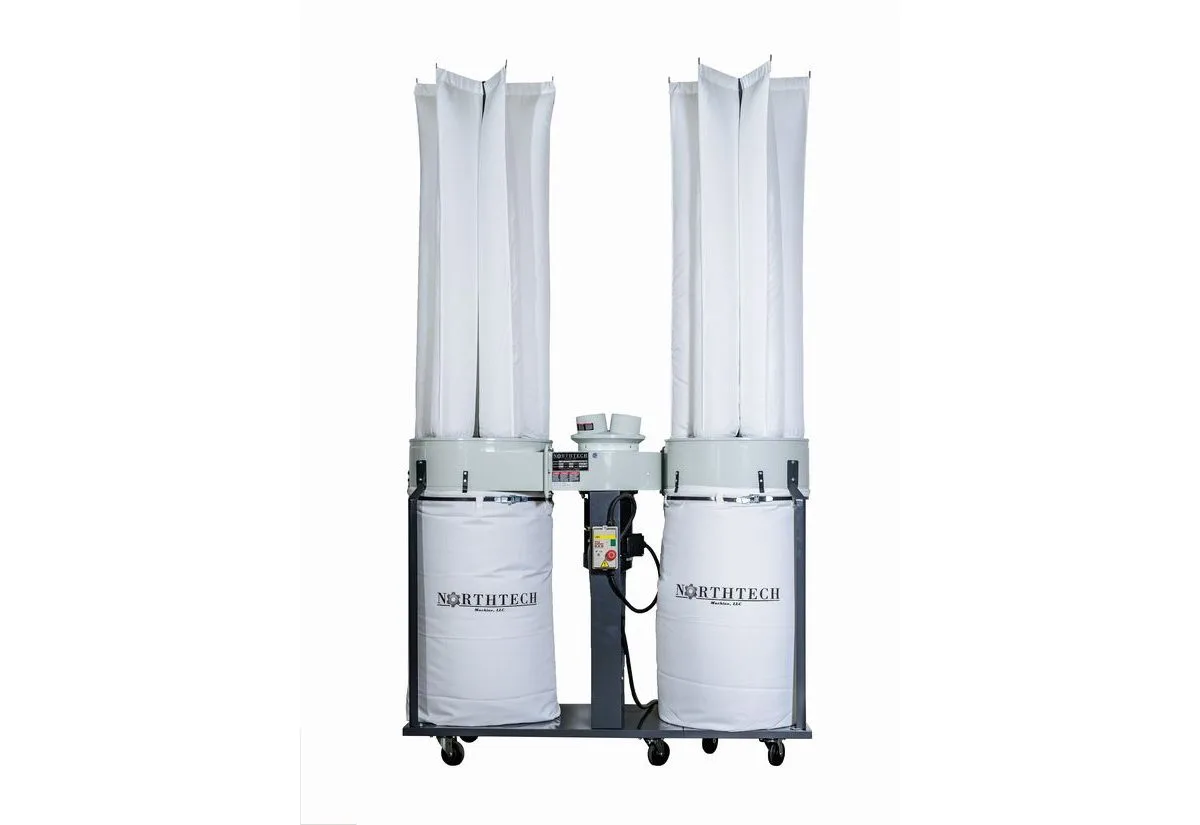

Northtech NT DC005 7.5 HP Dust Collector

This portable dust collector from Northtech boasts twelve (12) multi-pleated woven nylon filter bags. The 10″ inlet and included four (4) x 5″ port manifold enables easy connection to multiple machines to share the 4900 CFM produced by the 7.5 HP three-phase motor and 14″ curved impeller. Dual collection bags allow for longer production intervals before having to be emptied or changed.
Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.
Contact us today for help choosing the best dust collector for your shop!

 7.5HP 230/460V 3PH Motor
 Impeller diameter: 14”
 14” Curved impeller fan
 4900 CFM
 Magnetic starter
 Mushroom stop button
 Velocity: 138 FPS
 Multi-pleated top filtering with low air/cloth ratio
 30-micron nylon woven filtering media

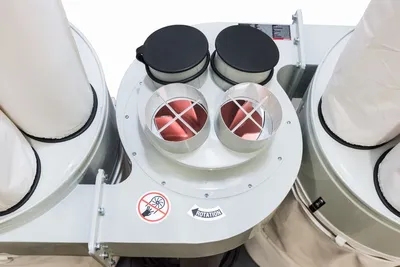

 10” inlet with (4) 5” manifold
 Plastic collection bags are standard (optional cloth bags are 24” x 36”).
 (12) Filter bags are 5’ high with sewn-in rubber seals
 Packing dimensions: (L) 42″ x (W) 48″ x (H) 35″
 Gross weight: 350 lbs.
 Warranty is one-year parts
 All machines are tested stateside before shipment providing trouble-free startup.
Main Motor Hp. = 7.5 hp.
Direct Drive = Direct Drive
Machine Hp. = 7.5 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 17.6/8.8 Amps
Electronics = UL Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 460 Volt
Dust Port In = 10” or (4) 5” Inlets
Free Air CFM = 4900 CFM
Impeller = 4” x 14” Steel Impeller
Frame Const. = 1/16” Steel Construction
Mobile Unit = (7) Caster Cart
Upper Bags = 6” x 59”
Lower Bags = 39” x 46”
Decible Rating = 83 dB
Net Weight = 280 Lbs.
Gross Weight = 350 Lbs.
Machine Dims. = 65” x 24” x 113”
Packaging Dims = 40” x 48” x 36”
