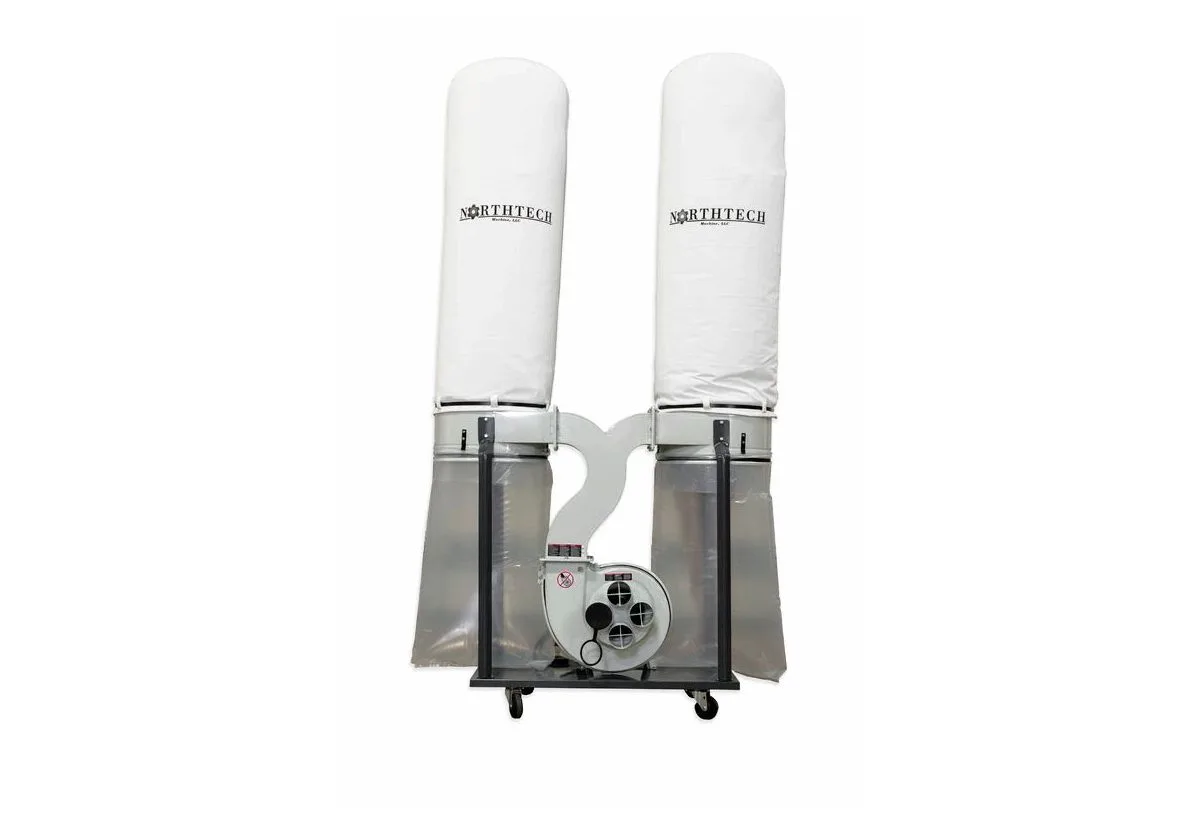

Northtech NT DC50 5 HP Dust Collector

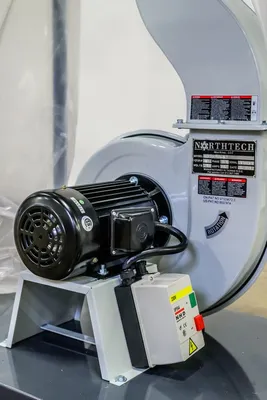

This portable dust collector from Northtech has two (2) large 31” x 59” filter bags and two (2) 31” x 40” collection bags to efficiently separate and contain sawdust and chips. The 8″ inlet with included four (4) x 4″ port manifold enables easy connection to multiple machines to share the 3500 CFM produced by the 5 HP three-phase motor and 13-1/2″ steel impeller.
Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.
Contact us today for help choosing the best dust collector for your shop!

 Motor: 5HP, 3PH 230/460V
 Impeller Diameter: 3-1/2” x 13-1/2″ (steel)
 Free Air CFM: 3500
 Dust Inlet: (4) 4″ or (1) 8”
 Filter bags: (2) 31” x 59”
 Collector bag: (2) 31” x 40”
 Net weight: 200 lbs.
 Gross weight: 250 lbs.
 Machine dimensions: (L) 60″ x (W) 30 ” x (H) 113 “
 Packing dimensions: (L) 40″ x (W) 48″ x (H) 29 “
 Warranty is one-year parts
 All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 5 hp.
Direct Drive = Direct Drive
Machine Hp. = 5 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 11.8/5.9 Amp
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage
Dust Port In = (1) 8” or (4) 4”
Dust Port Out = 7” x 7” Box
Free Air CFM = 3500 CFM
Impeller = 3-1/2” x 13-1/2” Steel Impel
Frame Const. = 1/16” Steel Construction
Upper Bags = 31” x 59”
Lower Bags = 31” x 40”
Decible Rating = 94 dB
Net Weight = 200 Lbs.
Gross Weight = 250 Lbs.
Machine Dims. = 60” x 30” x 113”
Packaging Dims = 40” x 48” x 29”
