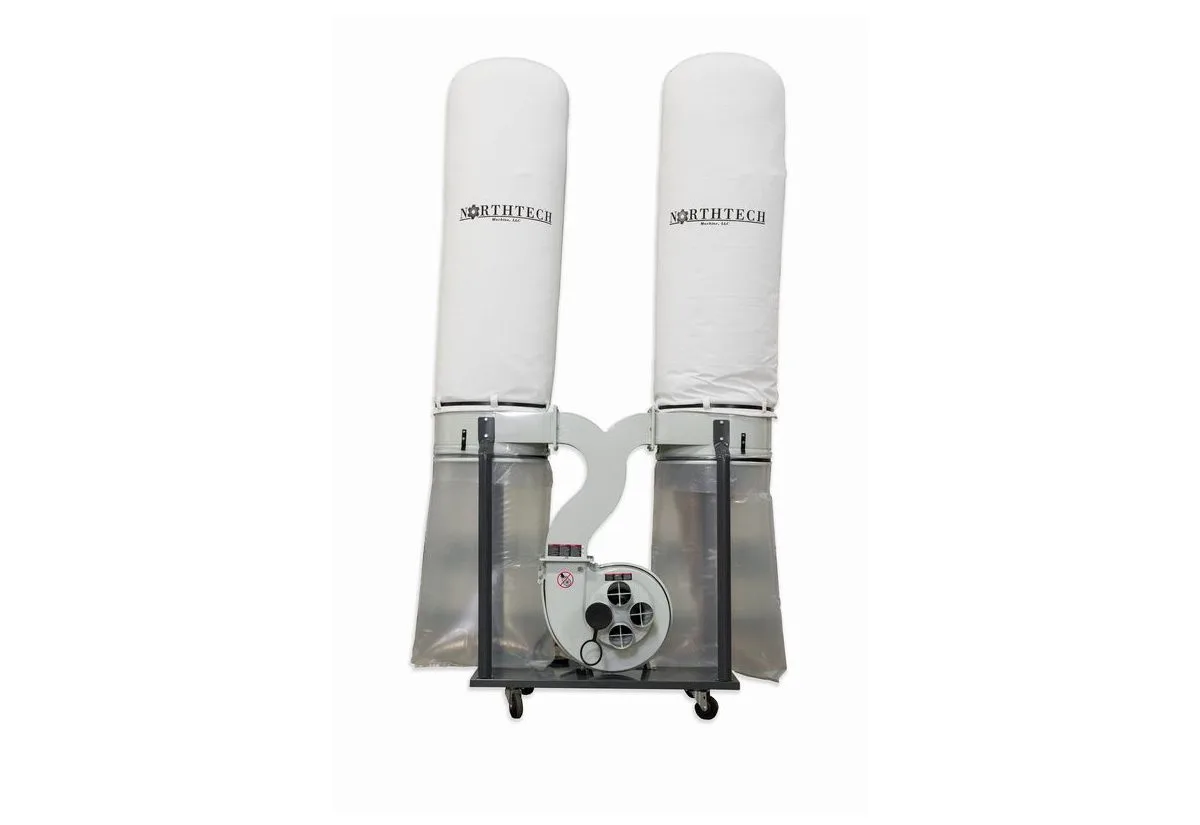

Northtech NT-DC30 3 HP Portable Dust Collector

This portable dust collector from Northtech has two (2) large 31” x 59” polyester filter bags up top with two (2) 31” x 40” collection bags below to efficiently separate and contain sawdust and chips. The 8″ inlet and included manifold with four (4) 4″ ports enable easy connection to multiple machines to share the 3100 CFM produced by the 3 HP three-phase motor and 13-1/2″ steel impeller.
Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.
Contact us today for help choosing the best dust collector for your shop!

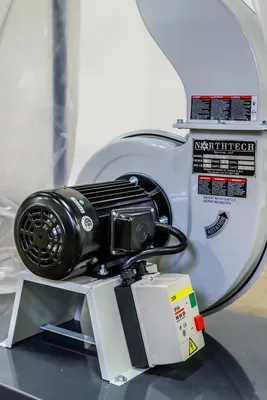

 3HP 230/460V 3PH Motor
 Two top filter polyester bags, 5 micron
 Two lower collection plastic bag
 3” x 13-1/2″ impeller
 3100 CFM
 Dust Exhaust:
 8″ main; (4) 4″ ports
 Gross weight: 250lbs
Main Motor Hp. = 3 hp.
Direct Drive = Direct Drive
Machine Hp. = 3 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 6.5/3.25 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 460 Volt
Dust Port In = (1) 8” or (4) 4”
Dust Port Out = 7” x 7” Box
Free Air CFM = 3100 CFM
Impeller = 3” x 13-1/2” Steel Impeller
Frame Const. = 1/16” Steel Construction
Mobile Unit = (4) Caster Cart
Upper Bags = 31” x 59”
Lower Bags = 31” x 40”
Decible Rating = 93 dB
Net Weight = 187 Lbs.
Gross Weight = 250 Lbs.
Machine Dims. = 60” x 29” x 144”
Packaging Dims = 40” x 48” x 29”
