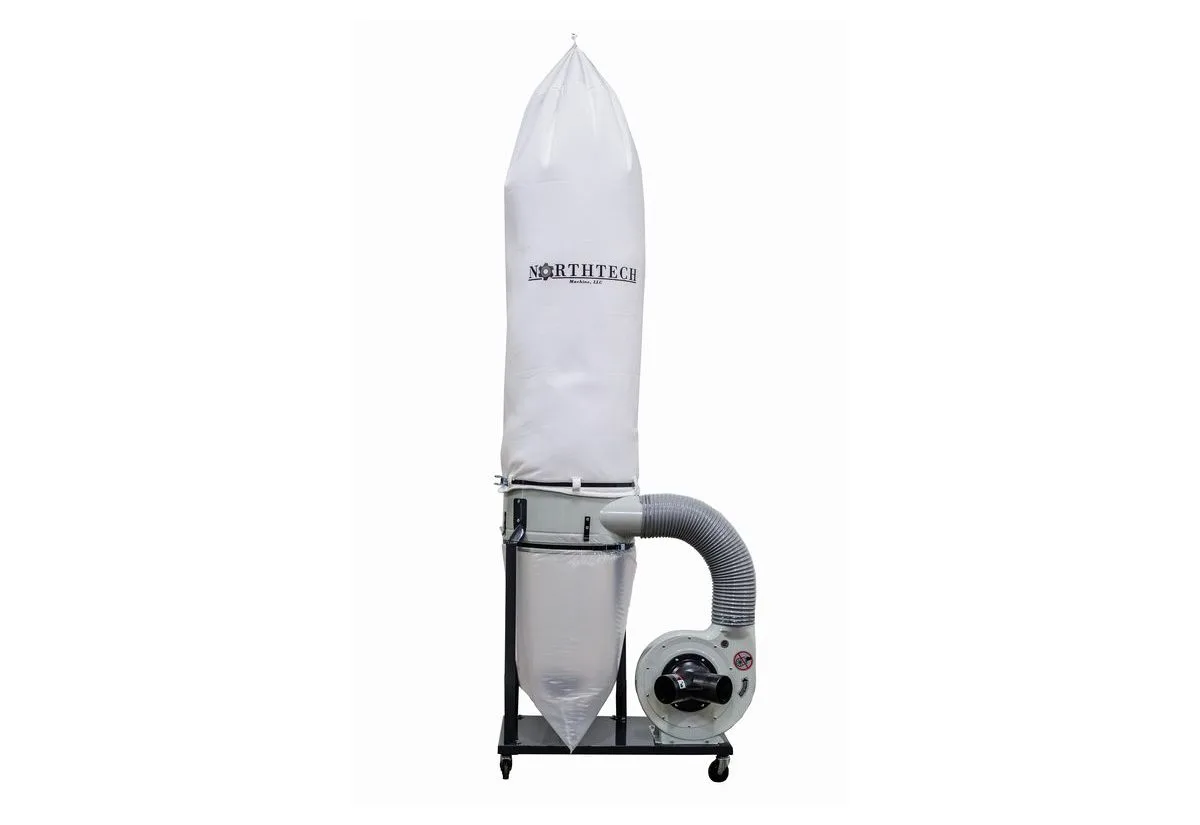

Northtech NT DC20 2 HP Dust Collector

This space-saving portable dust collector from Northtech has a large 31” x 59” polyester filter bag up top and a 31” x 34” collection bag below to efficiently separate and contain sawdust and chips. The 6″ inlet and included manifold with two (2) 4″ ports enable easy connection to multiple machines to share the 1300 CFM produced by the 2 HP three-phase motor and 11-1/2″ steel impeller.
Cutting, sanding, and shaping create large amounts of dust, shavings, and other waste that can cause severe health and safety issues if not dealt with properly. Insufficient and ineffective dust-collectors also affect the machines they’re connected to, leading to decreased performance, lower productivity, increased maintenance, and costly repairs. Upgrading your shop with a Northtech dust collector is a simple and affordable step toward protecting your business, your health, and your bottom-line.
Contact us today for help choosing the best dust collector for your shop!

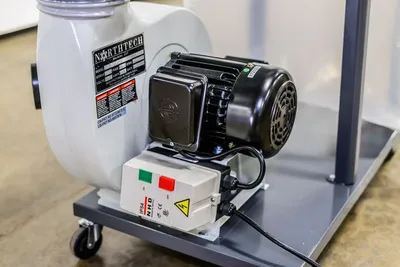

 2HP 230/460V 3PH Motor
 Impeller Diameter: 3” x 11-1/2″ (steel)
 Free Air CFM: 1,300
 Air Velocity: 7,200 FPM
 Dust Inlet: (2) 4″
 Filter bags: (1) 31″ x 59″
 Collector bag: (1) 31” x 34”
 Net weight: 102 lbs.
 Gross weight: 110 lbs.
 Machine dimensions: (L) 37″ x (W) 26″ x (H) 104″
 Packing dimensions: (L) 34″ x (W) 24″ x (H) 22″
 Warranty is one-year parts
 All machines are tested stateside before shipment providing trouble-free startup.
Main Motor Hp. = 2 hp.
Direct Drive = Direct Drive
Machine Hp. = 2 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Electronics = CE Approved Components

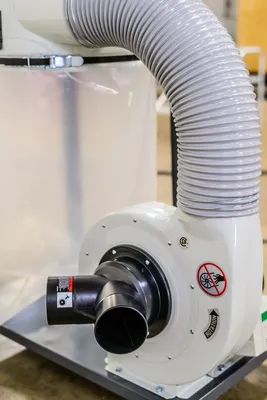

Dust Port In = (1) 6” or (2) 4”
Dust Port Out = (1) 6”
Free Air CFM = 1300 CFM
Impeller = 3” x 11-1/2” Steel Impeller
Frame Const. = 1/16” Steel Construction
Upper Bags = 31” x 59”
Lower Bags = 31” x 34”
Decible Rating = 86 dB
Net Weight = 102 Lbs.
Gross Weight = 110 Lbs.
Machine Dims. = 37” x 26” x 104”
Packaging Dims = 34” x 24” x 22”
