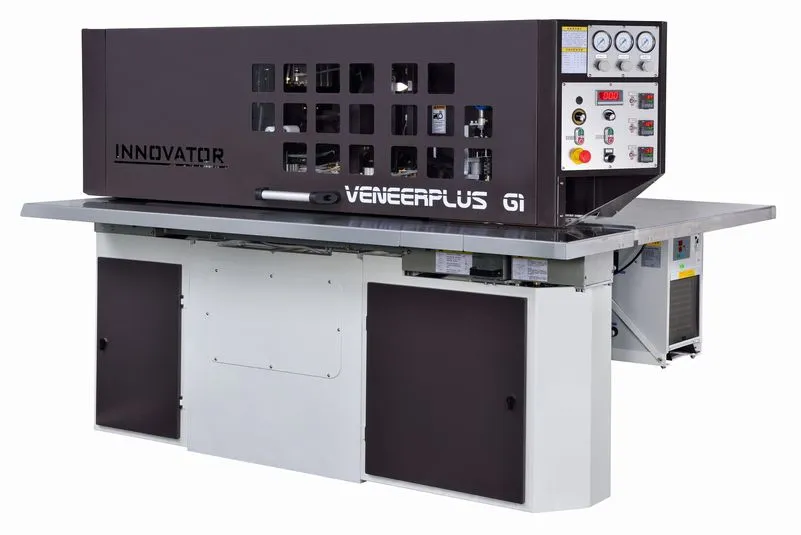

Northtech NT VeneerPlus G1 Longitudinal Veneer Splicers

The VeneerPlus accurately and firmly bonds veneer edges with no visible joint line. The NT VeneerPlus G1 Longitudinal Veneer Splicer is equipped with an integrated gluing system inside. It’s particularly suitable for the furniture industry and high-end decorative plywood. After the well-cut veneer strips are aligned evenly by the synchronized infeed rollers, the veneers are directly conveyed to the gluing unit for gluing edges and then transported to the heating section for glue curing. With the VeneerPlus, veneer gluing and splicing processes can be accomplished within one single machine. Combined with INNOVATOR Double Knife Veneer Guillotines (CutMate D series), a perfect veneer cutting and splicing system can be achieved.

Gluing unit driven by a speed regulated motor
Precise cooling system for prolonging glue pot life
Rigid welded machine body for stable splicing work
Special cylinder for precise control of chain pressure
The bottom transporting chains guided by wear-resistant rails
Easy adjustment and quick access of integrated gluing system
Special-designed pressurized and heating mechanical structures
Motorized driven infeed discs instead of traditional rollers for smoother infeed
The latest designed transporting chains of engineering plastics for reducing the heat on         veneers
Reflective photocell sensor in the infeed section to ensure a perfect alignment of the jointed veneers
Adjustable speed of the glue disc for minor adjustment of the glue amount applied on the veneer edges
Both top and bottom central heating strips coated with chromium material for easy cleaning  and maintenance
Accurate positioning with the top head unit mounted by means of pneumatic cylinders and guided by two linear guides
