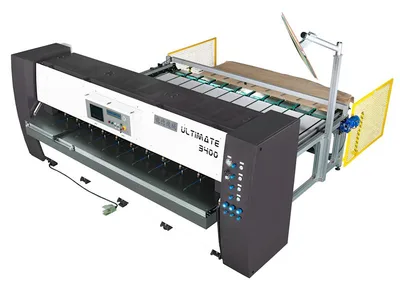

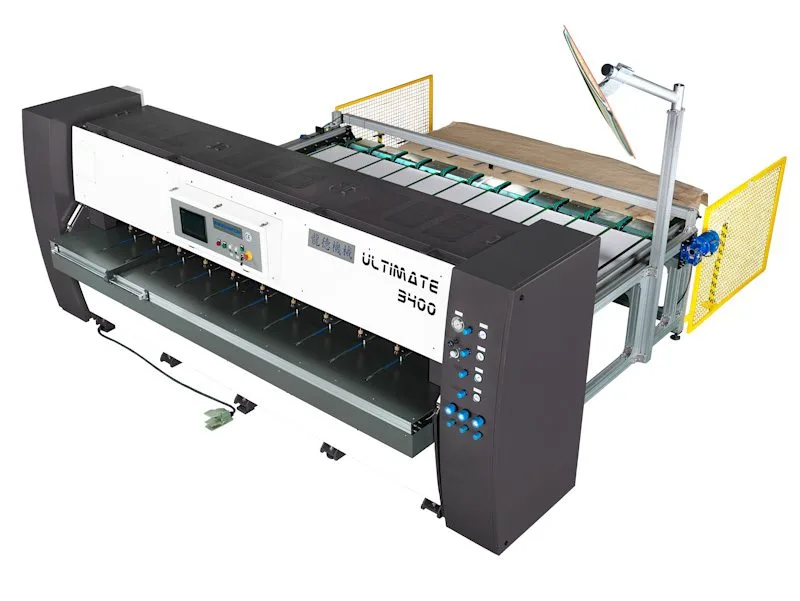

Northtech NT UltiMate 3400 Series Crossfeed Veneer Splicer

The NT UltiMate 3400 Series Crossfeed Veneer Splicer is designed to create glue-spliced joints on long and panel-sized veneer faces. Veneer bundles can be well-cut straight with double knife guillotines and then pre-glued on the edges as preparation. The pre-glued veneer strips are fed into the machine manually with feeding stoppers for fast and easy operation. The efficient production output of the crossfeed splicing machines is a great deal faster than longitudinal splicing machines, this is especially beneficial for long veneers. An Automatic Stacking System with Trimming is available as optional equipment for a big step towards fully-automated production. Together with the Double Knife Veneer Guillotine, CutMate D series, Double-Sided Veneer Glue Applicator, GlueMate 700, and Veneer Fanning Machine, FanningMate, a full veneer-splicing line is assembled.

Veneer aligned after clipping
JAPAN YUKEN hydraulic system
JAPAN MITSUBISHI PLC control system
Self-diagnosis system for fast maintenance
Infeed guides for veneer jointing alignment
Air cleaning system for photoelectric sensors
Program setting for different species of veneers
GERMANY FESTO pneumatic system
Safety guard with light curtain with European safety standards
Fix-length (cut-to-size) and endless (fix-jointed) splicing modes offered
Pre-feeding stopper system to avoid mismatching at the beginning of feeding stage
Hydraulic-driven clipper for the pre-selected width of veneer faces
“Clear-and-easy” operation control panel with user-friendly PLC-based interface touch screen veneers with the thinness as low as 0.2 mm spliced (certain species of veneers)
Independent cylinders for crossbeam pressure for thin veneers splicing even possible with extremely thin veneers
Remote monitoring maintenance system for faster access from the manufacturer in case of machine breakdown
In case of a machine breakdown, service personnel can check customers’ PLC program via the internet so as to solve the problem in time
