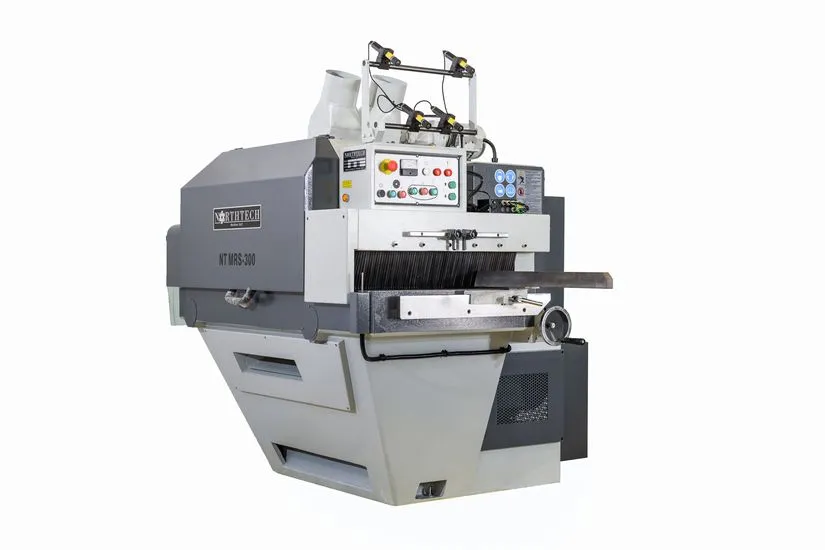

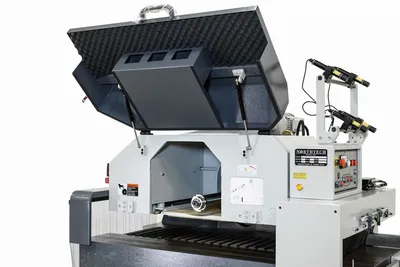

Northtech NT MRS300 Gang Rip Saw (15” Blade)

The MRS300 series gang-rip saw from Northtech features a powerful 50 HP with wye-delta start to minimize inrush current. The 29-1/2″ wide throat capacity allows for extra-wide stock and/or multiple pocket setups. Laser guides (one included) and the long 27-1/2″ fence make proper alignment simple and precise, even when feeding multiple-widths.

Saw arbor motor: 50 HP
Feed motor: 2 HP (3HP on request)
(1) 100 mW Laser Light Included
Max. cutting thickness: 4.7” (120mm)
Max. cutting thickness (w/short stock device): 95 mm (3.74″) (optional)
Max. cutting width: 300 mm (12″)
Distance from column to link chain center: 29-1/2”
Min. working length: 500 mm (19.685″)
Min. working length (w/short stock device): 300 mm (11.811″) (optional)
Max. saw blade diameter: 15”
Min. saw blade diameter” 10”
Saw blade bore: 70 mm
Saw arbor diameter: 50 mm
Saw arbor speed: 3775 RPM
Variable feed speed: 25-100 FPM
Hold down roller elevating motor: 0.5 HP
Table area (LxW):  60″x30″
Machine dimensions (LxWxH): 81” x 61” x 70”
Packing dimensions (LxWxH): 65” x 68” x 65”
Net weight: 4,525 lbs.
Gross Weight: 4725 Lbs.
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 50 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 68.4/34.2 Amps
Feed Hp. = 2/1 Hp. 2 Speed

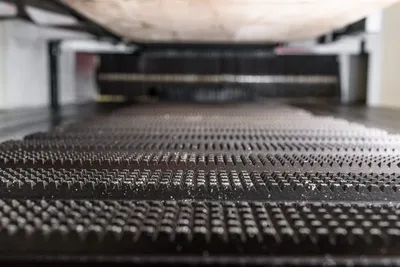

Feed System = 12” Dip Chain

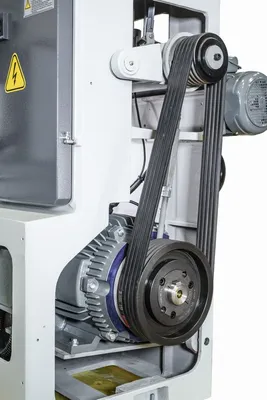

Drive System = Variable Speed Pulley
Feed Speed = 25 – 100 FPM
Variable Speed = 229 Variable Speed Pulley
Elevation Hp. = 1/2 Hp.
Elevation Style = Push Button
Elevation Sys. = Jack Screw / Linear Guides
Total Hp. = 52.5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Assisted Start = Wye-Delta
Throat Capacity = 29-1/2”
Min. Length = 13” 1st Roller to Kickback
Min. Thickness = 1/16”
Max. Thickness = 4.7”
Arbor Rpm = 3775 Rpm.
Blade Size = 12” Tungsten Carbide Tipped
No. of Teeth = 36 Tooth
Tooth Spacing = 1-1/8”
Blade Kerf = .160 In.
Tension Style = Gravity
Dust Collection = (2) 6” @ 1962 CFM
Dust Port Out = (2) 6” Ports
Arbor Diameter = 50 mm

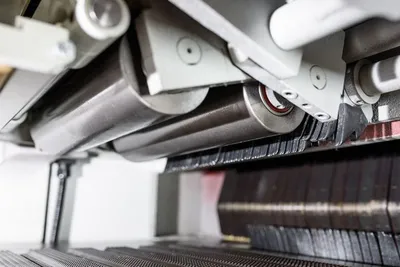

Idle Rollers = (4) Top Idle Rollers
Hold Down Style = (4) Spring Loaded Rollers

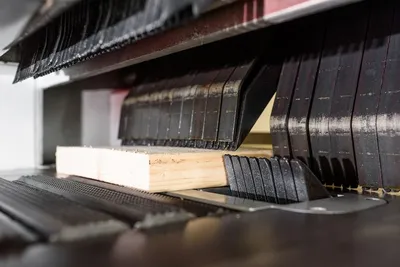

Kickback Finger = (2) Top Sets (1) Bottom Set
Rear E Stop = Push Button
Safety Feature = Safety Interlock Switch
Guarding = Full Cabinet Enclosure
Oiler = Auto Oiler
Low Oil Warning = Low Oil Shut Off / Warning

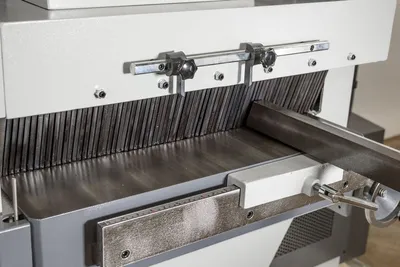

Fence Type = Adjustable
Fence Dims. = 2-1/4” x 27-1/2”
Frame Const. = 3/4” Steel Construction
Worktable Dims. = 30” x 60”
Table Const. = Cast Iron
Laser = 100mw Laser Light & Mount Bracket
Decible Rating = 75 dB
Net Weight = 4525 Lbs.
Gross Weight = 4725 Lbs.
Machine Dims. = 81” x 61” x 70”
Packaging Dims = 66” x 30” x 53”
