Northtech NT MRS-12N Heavy Duty Gang Rip Saw (12” Blade)

The Northtech heavy-duty 40 HP glue-line capable multi-rip (“gang-rip”) saw with 12″ maximum blade diameter quickly and accurately rips material up to 3-15/16” thick and 12” wide. Cutting both sides of your blanks at once provides incredible parallelism, reducing required moulder allowance, and increasing your yield. Short stock hold-down shoes allow for the cutting of small or thick materials. Variable feed speeds of 30 – 125 FPM and powered height adjustment improve operator efficiency. The innovative closed-link feed chain eliminates dangerous pinch-points to increase worker safety.

Close link chain vs. traditional open (pinch point)
Auto lube system oiler has twice the number of lube points (critical)
Can cut up to 3-15/16″ with MRS-12 12″ blade.
Bottom kickback fingers for added safety
Glue line rip capable
Speed of saw blade 3550 RPM
Variable feed speed 30’ – 125’ per minute
Include (1) carbide blades: 12″ x 36T x 70mm x 3.5mm kerf
Net Weight: 3,300 lbs.
Packing Weight: 3,525 lbs.
Dimensions: 72”L x 62”W x 64”H
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Exclusively designed lubricator provides excellent performance.
Close link feed chain for added operator safety protection.
Short stock hold-down shoes allow for the cutting of small or thick materials.
(2) rows anti-kickback fingers at infeed.
Power raise & lower of the top pressure group is an optional feature.
The machine is ruggedly constructed throughout for maximum stability.

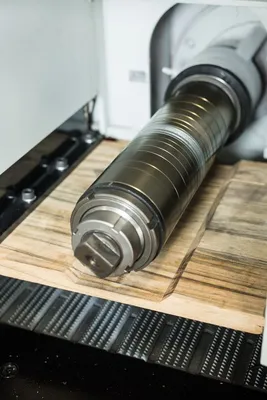

A precision saw arbor gives an accurate and smooth cut.
Main Motor Hp. = 40 hp.
Voltage/ Freq. = 230460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 100/50 Amps
Feed Hp. = 2 Hp.
Feed System = 12” Dip Chain

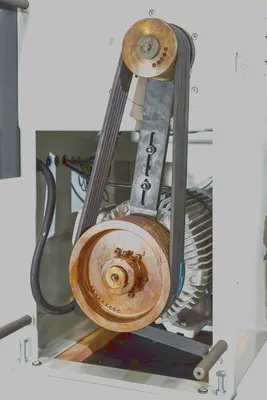

Drive System = Variable Speed Pulley
Feed Speed = 30 – 125 FPM
Variable Speed = Mechanical Wheel Adjustment
Elevation Hp. = 1/4 Hp.

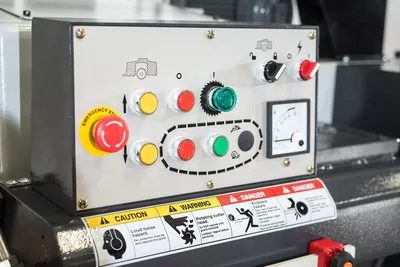

Elevation Style = Push Button
Elevation Sys. = Jack Screw / Linear Guides
Total Hp. = 50 Hp.

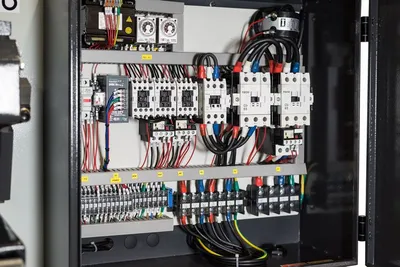

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Assisted Start = Wye-Delta
Pass-Line = 29-1/2”
Min. Length = 7” Butt Feed 12” Single
Min. Width = 1/2”
Max. Width = 12”
Min. Thickness = 1/4”
Max. Thickness = 3-15/16”
Arbor Rpm = 3550 Rpm
Blade Size = 12” Tungsten Carbide Tipped
No. of Teeth = 36 Tooth
Tooth Spacing = 1-3/16”
Blade Kerf = 3.5 mm
Cleaning System = Brush on Chain
Vertical Travel = 1/4” – 4-3/16”
Dust Collection = (2) 6” @ 1962 CFM
Arbor Diameter = 70 mm
Hold Down Style = (6) Rollers Throat Plate

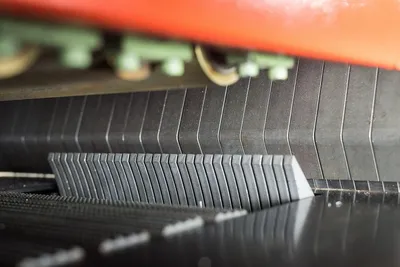

Kickback Finger = (48) Top (30) Bottom
Emergency Stop = Push Button
Rear E Stop = Push Button

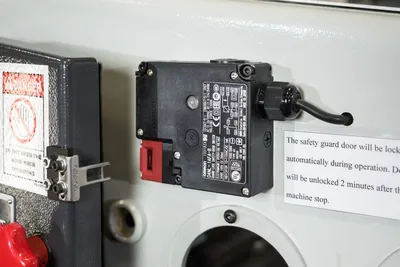

Safety Feature = Safety Interlock Switch
Guarding = High Visibility Guarding
Oiler = Auto Oiler
Low Oil Warning = Low Oil Shut-off
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 21-1/2” x 67”
Infeed Table = 99-1/2”

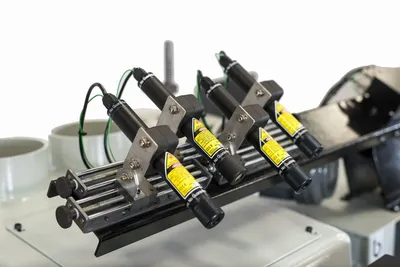

Laser = 100mw Laser Light & Mount Bracket
Decible Rating = 76 dB
Net Weight = 3266 Lbs.
Gross Weight = 3466 Lbs.
Machine Dims. = 67” x 57” x 57”
Packaging Dims = 72” x 40” x 31”
