Northtech NT 600A Vertical Band Saw

The Northtech NT 600A Vertical Bandsaw has a 7.5 HP motor, 2” x 208″ blade, and a maximum cut thickness of 13-12″. The 23-3/4” x 26” cast iron worktable is tiltable up to 60 degrees and features a 3-3/4” x 18” fence. The bandsaw also features sturdy steel construction and a foot-brake to promptly bring the blade to a safe stop.

Main Motor Hp. = 7.5 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 18.4/9.2 Amps
Total Hp. = 7.5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 230 Volt
Pass-Line = 34”
Max. Width = 22-7/8” W/O Fence
Max. Thickness = 13-1/2”
Able Cut Angle = 60 Degree Table Tilt
Blade Size = 2” x 208”
No. of Teeth = 236
Tooth Spacing = 3/4”
Blade Kerf = .032”
Blade Speed = 5150 FPM

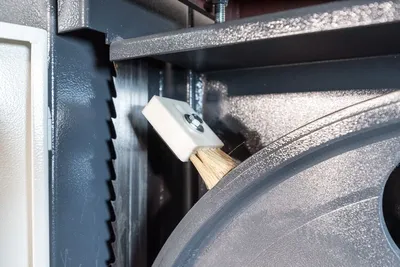

Cleaning System = Brush on Wheel
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Dust Collection = (2) 4” @ 900 CFM
Arbor Diameter = 30mm
Fence Type = Adjustable Fence
Fence Dims. = 3-3/4” x 18”
Tiltable = 45 Degrees

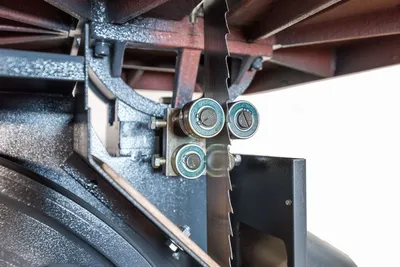

Blade Guide = Bearing Blade Guide
Wheel Dims. = 2” x 24”
Wheel Cnstr. = Steel Construction
Brake System = Foot Pedal Brake
Frame Const. = Steel Construction
Worktable Dims. = 23-3/4” x 26”
Table Const. = Cast Iron
Decible Rating = 75 dB
Net Weight = 825 Lbs.
Gross Weight = 950Lbs.
Machine Dims. = 42” x 34” x 81”
Packaging Dims = 29” x 85” x 44”
