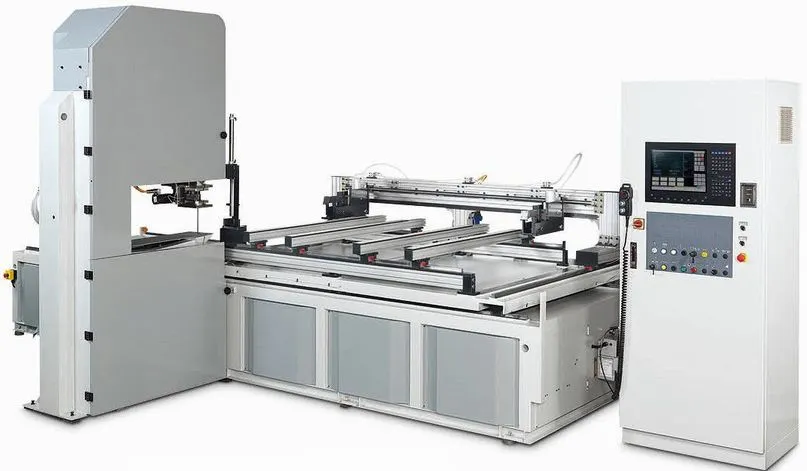

Northtech NT CNC Bandsaw 2500

The Northtech NT CNC Bandsaw 2500 features a band blade swiveling angle +/- 90 degrees and advanced 4-axis CNC control with powerful functions for easy operation and high-efficiency curve cutting without the need for a copy template. All travel is driven by servo motors combined with the use of linear guideways. The fully-automatic infeed/outfeed mechanism features lightweight aluminum alloy for maximum durability and elegance. Ethernet connectivity is built-in for simple network hookup and control.

15” Colorful LED monitor and controller.
AXIS CARD: 4 servo axis +1 set of analog voltage output +1 MPG handwheel axis.
4-axis control.
Available to connect to various interfacing ports, including Ethernet.
32 Bit CPU
Built-in open-type PLC and Macro.
The automatic feeding mechanism is equipped with 4 grippers that grip the panels and feed them to the cutting position.
An air cylinder operates the grippers for an extremely secure gripping effect.
The maximum gripping thickness is 150 mm.
The outfeed plate, actuated by an air cylinder, automatically tilts downward to outfeed the finished products after cutting.
The band blade can swivel to various angular positions through the computer control. Swiveling angles include +-90 Degrees.
This, combined with the X- and Y-axis travels on the automatic feeding mechanism, allows for cutting any complicated curve.
Main Motor Hp. = 15 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Total Hp. = 21.4 Hp.
Electronics = CE Approved Components
Touch Screen = 15” LED Monitor
Operator Panel = Mobile Cabinet
Max. Length = 98.42”
Max. Width = 47.24”
Max. Thickness = 5.90”
Able Cut Angle = +90 / -90 Degrees
Arbor Rpm = 750 RPM
Blade Size = 5900 x 12.7 x 0.8mm
Blade Speed = 6550 FPM
Dust Collection = (2) 4” @ 900 CFM
Emergency Stop = Push Button
Blade Wheel Dim = 35”
Net Weight = 6614 Lbs.
Gross Weight = 7717 Lbs.
Machine Dims. = 166 x 130 x 103 In.
