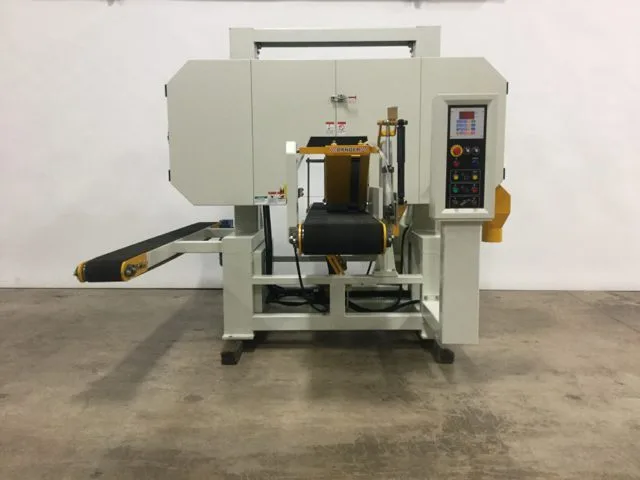

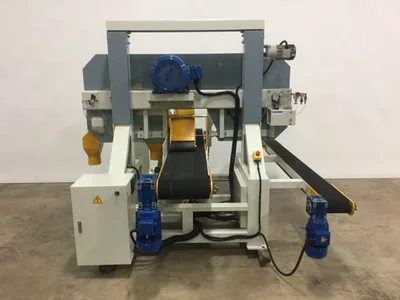

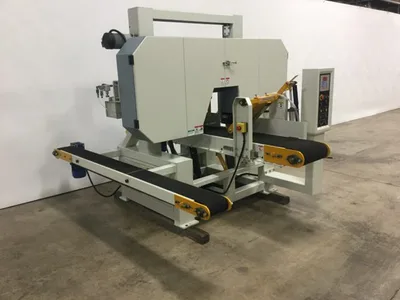

Northtech NT AW-400PBX Horizontal Bandsaw

The Northtech NT AW-400PBX Horizontal Bandsaw features a powerful 40 HP motor to drive the 2” x 208″ blade at speeds from 4700 – 6750 FPM. The 15-1/4′ (W) feed belt is driven by an inverter-controlled 3 HP motor for easy operator-adjustment between 0 to 120 FPM. Motorized elevation adjustment and return conveyor are also included.

Main Motor Hp. = 40 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 65 Amps
Feed Hp. = 3 Hp.
Feed System = 15-1/4” x 215-3/8” Belt
Drive System = Motor Mated to Gear Box
Feed Speed = 0 – 120 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 1 Hp.

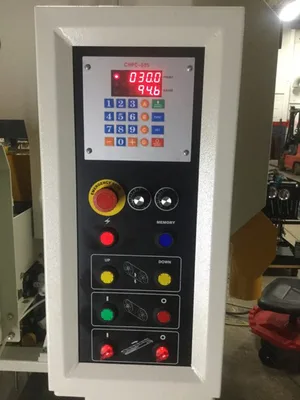

Elevation Style = CHPC-535 Elevation Control

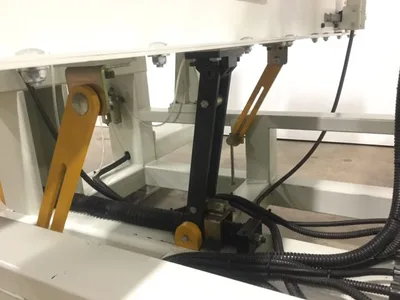

Elevation Sys. = (2) Post Jack Screw
Total Hp. = 45 Hp.

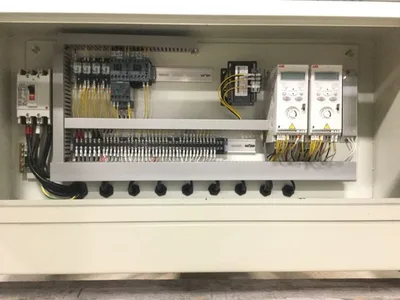

Electronics = UL Approved Components
Control Voltage = 220V Control Voltage
Min. Length = Individual Feed 20”
Min. Width = 2″
Max. Width = 17-1/2”
Min. Thickness = 1/8”
Max. Thickness = 10”
Blade Size = 2” x 208”
No. of Teeth = 208
Tooth Spacing = 1”
Blade Kerf = .086 In.
Blade Speed = 4700 – 6750 FPM
Tracking Style = Manual Adjustment

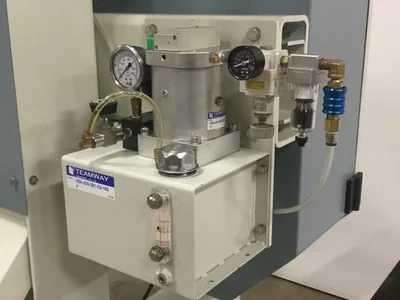

Tension Style = Pneumatic / Hydraulic Tension
Vertical Travel = 1/8” – 10”
Dust Collection = (2) 6” @ 1962 CFM
Dust Port Out = (2) 6” Ports
Digital Display = Elevation

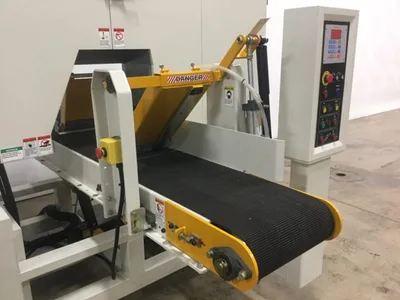

Conveyor = 15-1/4” x 215-3/8”

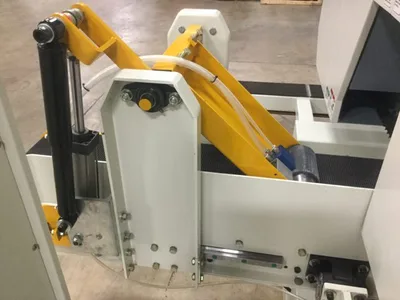

Hold Down Style = Pneumatic / Gravity
FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 1000 CFM @ Extraction Point
Emergency Stop = Push Button
Rear E Stop = Push Button
Guarding = Full Cabinet Enclosure

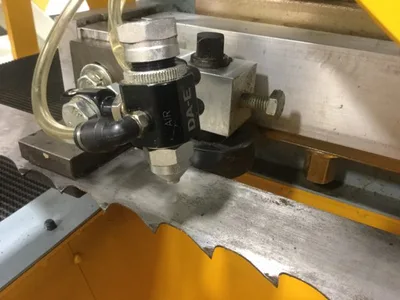

Oiler = Blade Oil Mister
Tiltable = 30 Degree Tilt
Blade Guide = Steel Blade Guides

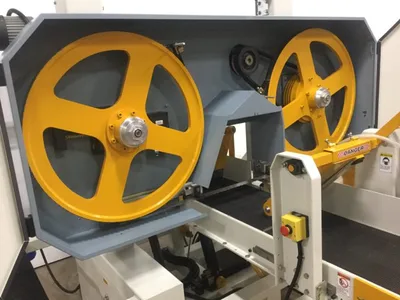

Wheel Dims. = 1-3/4” x 33-1/2”
Wheel Cnstr. = Steel Construction
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 15” x 109”
Table Const. = Steel

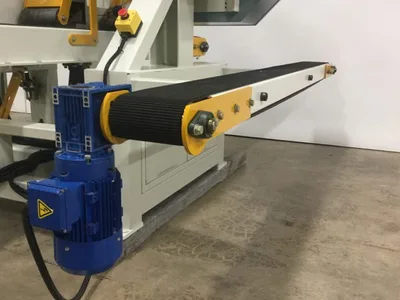

Return Conveyor = 7-1/4” x 218” Belt
Decible Rating = 80 dB
Net Weight = 3674
Gross Weight = 4090 Lbs.
Machine Dims. = 117” x 100” x 88”
Packaging Dims = 120” x 102” x 90”
