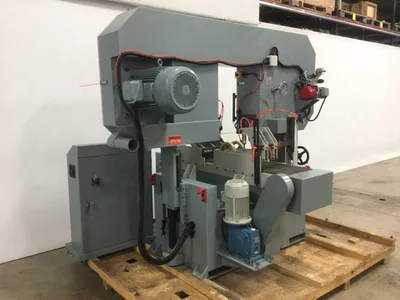

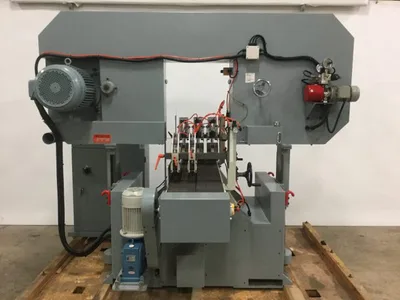

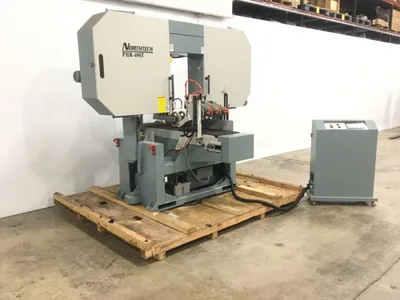

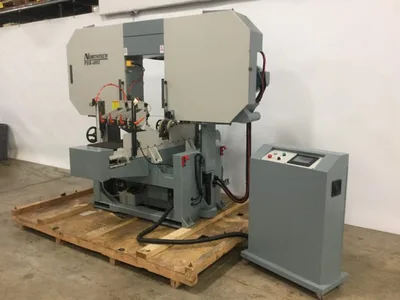

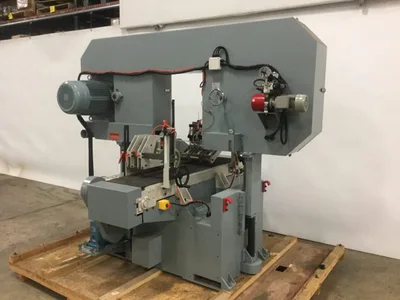

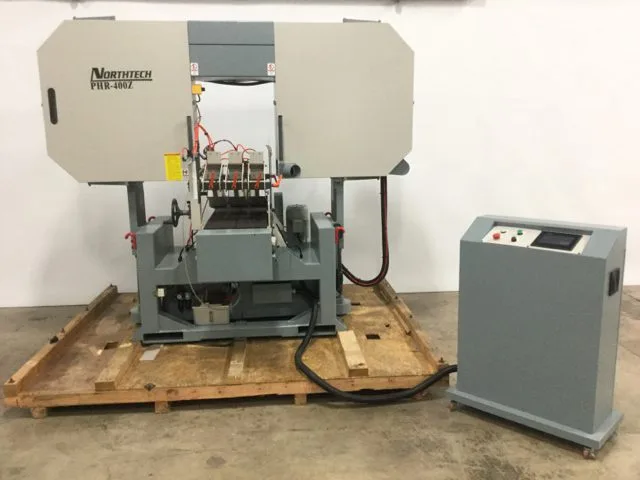

Northtech NT PHR-400Z-4434 16″ Horizontal Band Resaw Precision Chain Feed Series

This Northtech 400 series 16″ horizontal band resaw offers a substantial maximum cutting capacity of 16″ (W) by 10-3/4″ (H). Blades up to 3″ deep are powered by a 40 HP motor with VFD speed control. The feed system is also VFD-controlled for precise adjustment of speeds from 5 to 55 FPM. The feature-rich saw also comes standard with an intuitive touch-screen control panel, hydraulic blade tensioning, and tungsten-carbide table guides.

 Maximum cutting capacity: W 16″ x H 10.75″
 Minimum thickness: 2mm (.07″)
 Saw wheel diameter: W 2″ x H 36″
 Saw blade length: 6060mm (238 ½”)
 Saw blade width: 75mm (3″), (2″ is optional)
 Steel chain conveyor belt: 400mm (16″)
 Conveyor height (from the floor): 926mm (36 ½”)
 Feed speed: 5-55 FPM

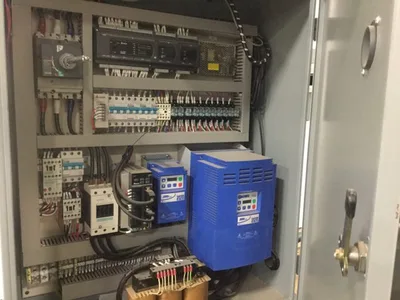

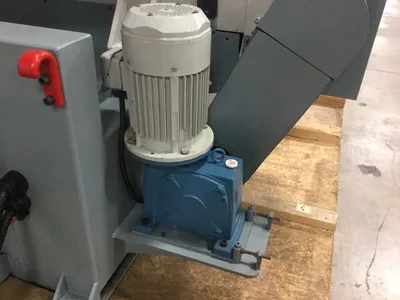

 Feed inverter motor: 3HP with 5HP variable frequency drive

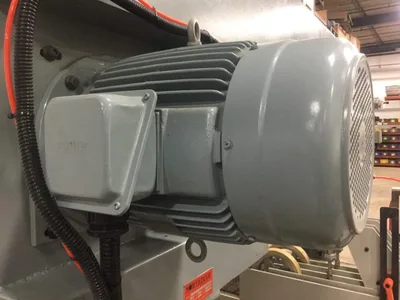

 Saw wheel motor: 40HP with 50HP variable frequency drive
 Blade lift motor: ¾ HP on precision ball screw lifting system

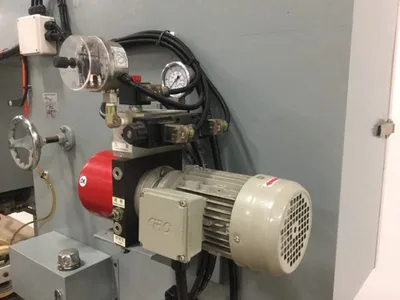

 1HP pump for hydraulic blade tensioning system
 Dust ports: (2) 4″
 Dust collection requirements: 450 CFM @ points of extraction
 Touch screen control panel
 Precision blade guides from tungsten carbide
 Power return conveyor (Optional)
 All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 40 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 56.67 Amps
Feed Hp. = 3 Hp.
Feed System = 16” Chain Feed
Drive System = Chain Drive
Feed Speed = 5 – 55 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 3/4 Hp.
Elevation Style = Auto Touch Screen Control
Elevation Sys. = (2) Post Jack Screw
Total Hp. = 44.5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 230 Volt
Programmable = Feed Speed / Blade Speed
Touch Screen = 7” Digital Touch Screen
Operator Panel = Mobile Cabinet
Min. Length = 14”
Min. Width = 2″
Max. Width = 16”
Min. Thickness = .07”
Max. Thickness = 10-3/4”
Blade Size = 238-1/2”
Tooth Spacing = 1”
Blade Kerf = .086 In.
Blade Speed = 3850 – 7150 FPM
Tracking Style = Manual Adjustment
Tension Style = Hydraulic Tension
Vertical Travel = .07” – 10-3/4”
Dust Collection = (2) 4” @ 900 CFM
Dust Port Out = 2 4” Top
Conveyor = 16” Chain Conveyor
Chain Adj. = Manual

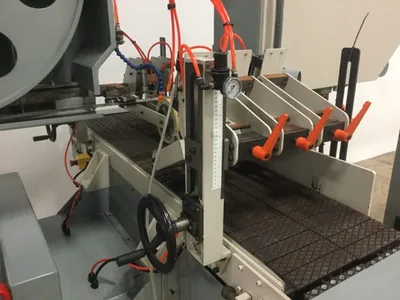

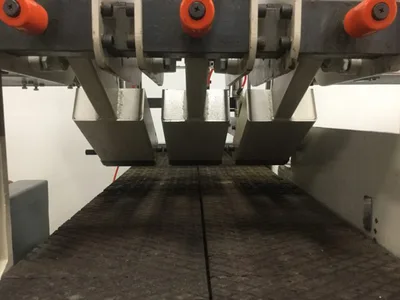

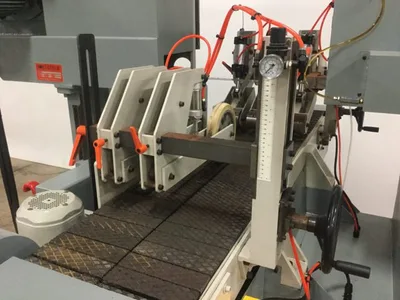

Hold Down Style = 3 Front 2 Rear Pneumatic
FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 872 Total CFM
Emergency Stop = Push Button
Rear E Stop = Push Button
Guarding = Full Cabinet Enclosure
Oiler = Auto Oiler

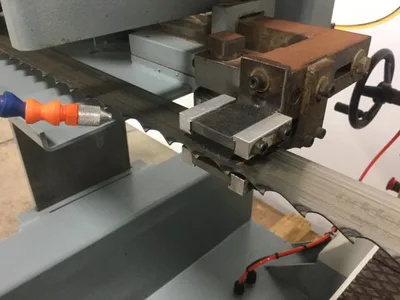

Blade Guide = Precision Tungsten Carbide

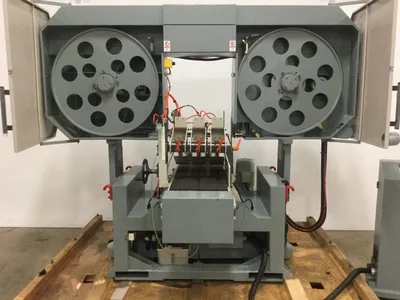

Wheel Dims. = 2” x 36”
Wheel Cnstr. = Steel Construction
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 16” x 85-1/2”
Decible Rating = 76 dB
Net Weight = 4321 Lbs.
Gross Weight = 4762 Lbs.
Machine Dims. = 107” x 87” x 91”
Packaging Dims = 109” x 90” x 100”
