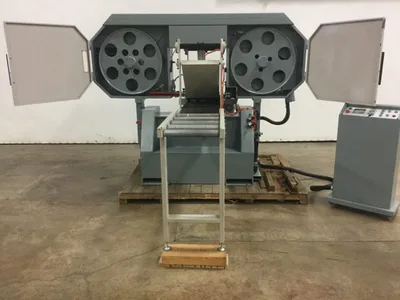

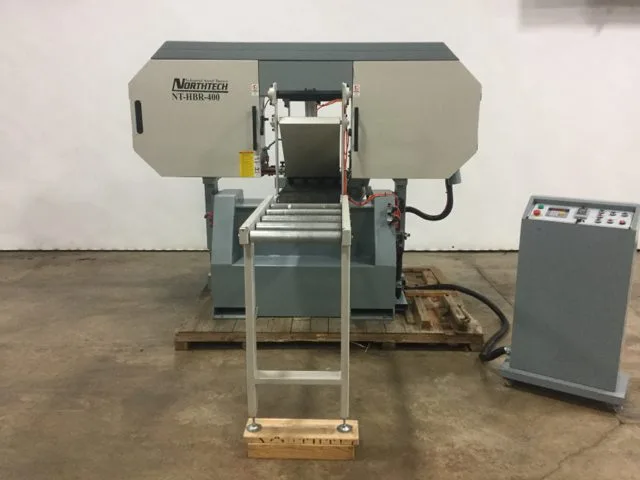

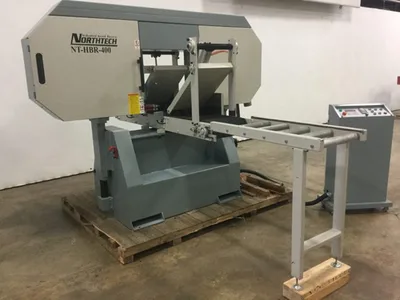

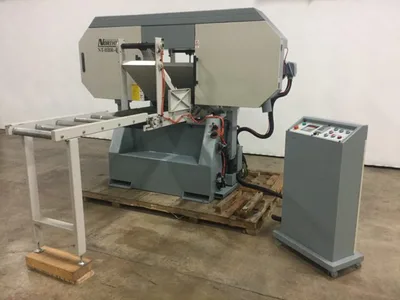

Northtech Industrial NT HBR-400XL Horizontal Band Resaw

The Northtech Industrial NT HBR-400XL Horizontal Band Resaw is designed for higher-production industrial use! It sports a large 40 HP motor that drives a 32″ diameter x 1-7/8″ wide saw wheel (approximately 450lbs) for high centrifugal cutting force and vibration-free performance while maintaining a blade speed of 6150 FPM. Material up to 16-3/4″ (W) and 17″ (H) is belt-fed with inverter speed control (with LED readout) for quick setting of production feed speeds from 4 FPM up to 130 FPM to easily accommodate different material types and width. Sensors automatically trigger the pneumatic lowering of the top rollers onto the material as it enters to preclude the need to adjust for different material thicknesses. All this power and control is put to good use with a maximum cutting capacity of 16-3/4″ (W) and 17″ (H).

Increased HP to 40 to meet higher production needs.
16 ¾’’ maximum part capacity.
Digital set works (PLC) for fast and precise settings (accurate to .002″ automatic position).
Precision German spring tensioning of the blade for constant tension to the band at 22,000 PSI.

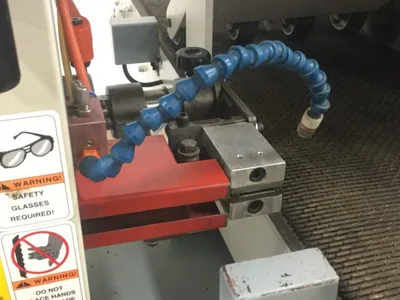

Auto oil misting system improves blade life by up to 40 – 50% on many materials. (Only activated when the material is present by the sensor.)

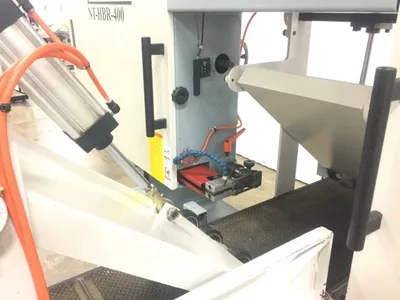

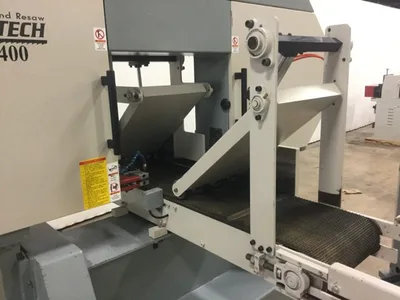

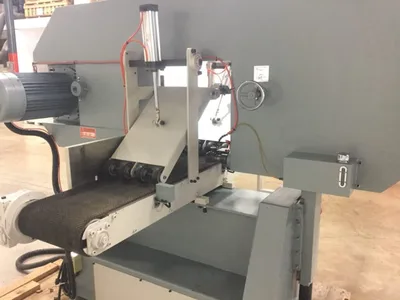

Pneumatic raise & lower of top feed rollers is automatic. When the material is presented, a sensor lifts and lowers onto the material on both sides of the blade. * Prevents material from slamming into the rollers and requires no adjustment within a 4″ ± thickness range. * i.e. random thickness material requires no adjustment.
Remote and dustproof controls panel allows random placement, conveniently making the material placement and operator position a flexible option.

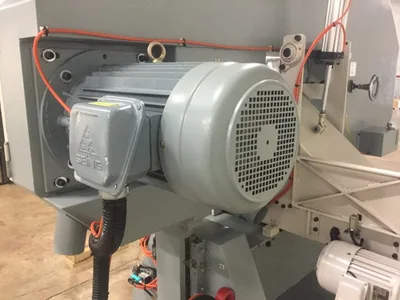

Main Motor Hp. = 40 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 52.2 Amps
Feed Hp. = 1.5 Hp.
Feed System = 15-3/4” Feed Belt

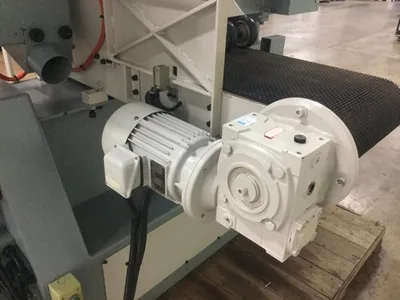

Drive System = Motor Mated to Gear Box
Variable Speed = Inverter Controlled
Elevation Hp. = 1.5 Hp.
Elevation Style = CH-525 Elevation Control
Elevation Sys. = (2) Post Jack Screw
Total Hp. = 43.5 Hp.

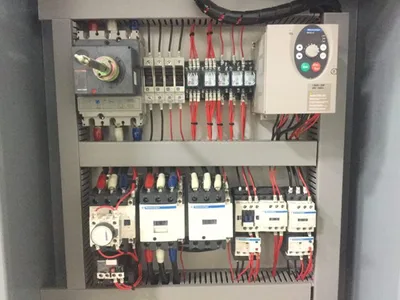

Electronics = CE Approved Components
Control Voltage = 220V Control Voltage
Assisted Start = Wye-Delta
Programmable = Elevation
Operator Panel = Mobile Cabinet
Pass-Line = 40-3/8”
Throat Capacity = 11-3/4” x 8”
Min. Length = 30” Between Hold Downs
Min. Width = 1-1/2”
Max. Width = 16-3/4”
Min. Thickness = 1/4”
Max. Thickness = 17”
Blade Speed = 6150 FPM
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Vertical Travel = 10-3/8”
Dust Collection = (2) 4” @ 900 CFM
Digital Display = Elevation
Hold Down Style = (1) Infeed (1) Outfeed Pneumat

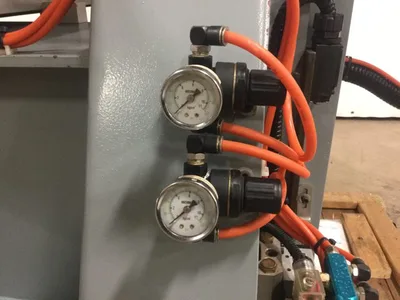

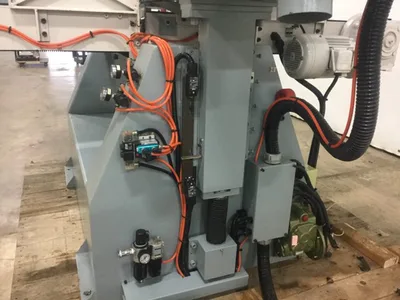

FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 3/8” Supply Line @ 90 Psi
Emergency Stop = Push Button
Oiler = Blade Oil Mister
Fence Type = Fixed Fence
Fence Dims. = 8-1/2” x 18”
Blade Guide = Steel Blade Guides
Wheel Dims. = 1-7/8” x 31-1/2”
Wheel Cnstr. = Steel Construction
Frame Const. = 1/2” Steel Construction
Infeed Table = 17” x 42-1/2”
Net Weight = 4321 Lbs
Gross Weight = 4761 Lbs.
Machine Dims. = 104” x 125” x 90”
Packaging Dims = 89” x 68” x 84”
