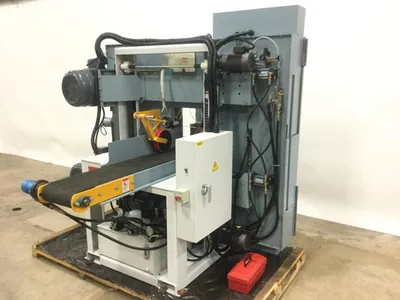

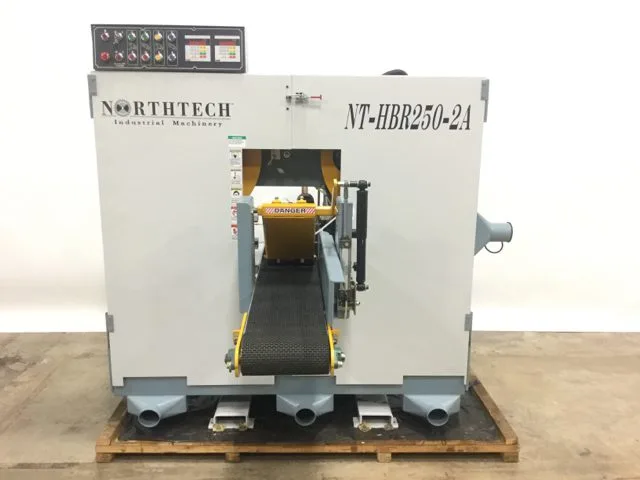

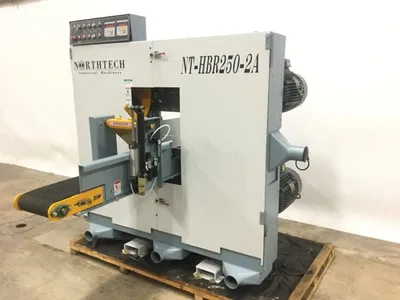

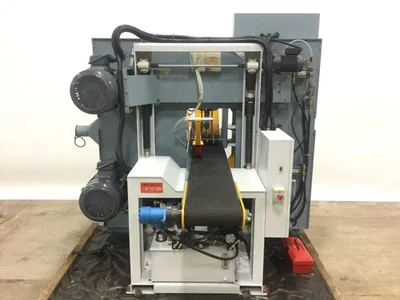

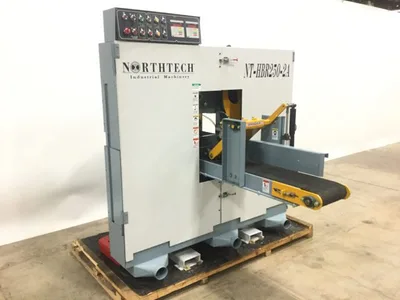

Northtech NT HBR-250A-2 Dual-blade Horizontal Resaw Band Saw

This 250 series 20 HP (x2) dual-blade resaw from Northtech can easily handle material up to 11-3/4″ (W)” x 8″ (H). The 1″ (W) x 28″ (Dia.) wheels will securely drive both 1″ and 1-1/4″ blades. The feed conveyor is almost 12″ wide and powered by a 3HP hydraulic pump, VFD-controlled to maintain smooth and steady feed speeds of 5-80 FPM.

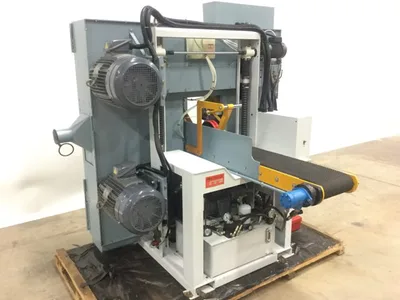

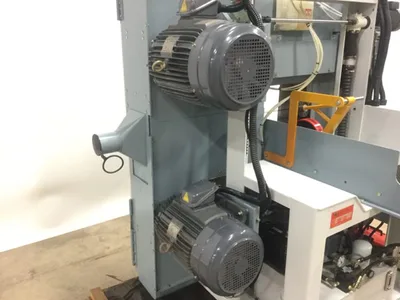

Main Motor: (2) 20HP, 3PH, 460V
30 Amp
Max. Workpiece Size: 11-3/4″ (W)” x 8″ (H)

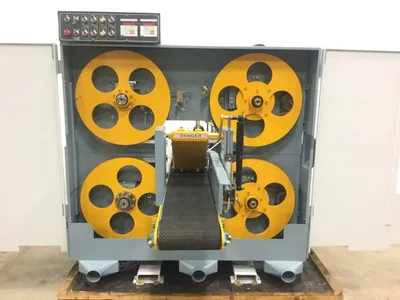

Saw Wheels: 1″ x 28″

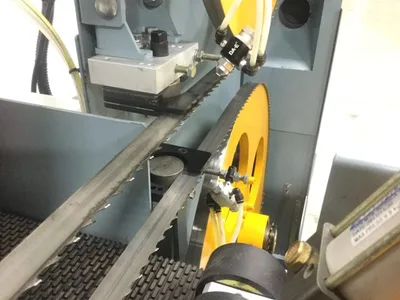

Saw Blade Size: 1″ x 168″ Carbide Tipped Blade
Distance from upper blade to conveyor table: .35” – 6.7” (9mm – 170mm)
Distance from lower blade to conveyor table: 3/16” – 4” (4.5mm – 125mm)
Distance between two blades: Minimum 3/16” (4.5mm)
Saw wheel width: Accepts 1” or 1 ¼” blades
Conveyor belt size: 11.8” W x 215 ¾” L (300mm x 5480mm)
Min. cutting Thickness: 0.35″
3HP Inverter Controlled Variable Hydraulic Feed of 5-80 FPM
Controlling Blade Tension: Hydraulic Tensioning System
Elevation: (2) 1/4 HP motors with 525 digital set position controls
Dust Ports: (4) 4″ ports requiring 436 CFM at each point of extraction
Machine Dimensions: 109″(L) x 82″(W) x 85″(H)
Machine Weight: 3,080 lbs.
Packing Dimensions: 115″ x 85″ x 79″
Packing Weight: 3,400 lbs.
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Top Head Hp. = 20 Hp.
Bottom Head Hp. = 20 Hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 29 Amps
Feed Hp. = 3 Hp.
Feed System = 11” x 218” Hydraulic Drive Belt

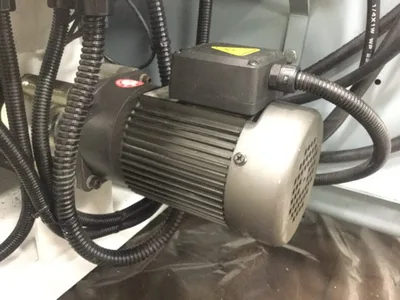

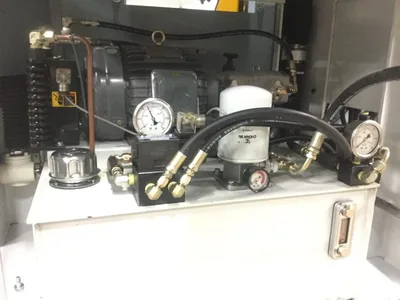

Drive System = 3 Hp. Hydraulic Pump
Feed Speed = 15 – 80 FPM
Variable Speed = Hydraulic Adjustment Knob
Elevation Hp. = 1/4 Hp.
Elevation Style = (2) CH-525 Elevation Control
Elevation Sys. = (4) Post Jack Screw
Total Hp. = 43.5 Hp.

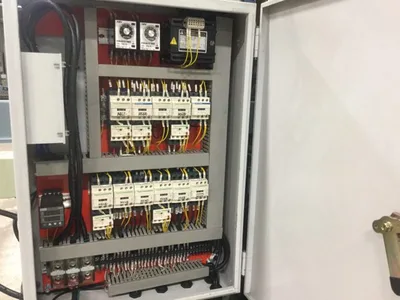

Electronics = CE Approved Components
Control Voltage = 230 Volt
Assisted Start = Wye Delta
Programmable = Elevation
Operator Panel = Fixed
Throat Capacity = 11-3/4” x 8”
Min. Length = 18”
Max. Length = Infinite
Min. Width = 1″
Max. Width = 11-3/4”
Min. Thickness = 3/16″
Max. Thickness = 8”
Blade Size = 1” x 168”
Tooth Spacing = 5/8 In.
Blade Kerf = .063 In.
Blade Speed = 6300 RPM
Tracking Style = Manual Adjustment
Tension Style = Hydraulic Tension
Dust Collection = (4) 4” @ 1744 CFM
Dust Port Out = (4) 4” Ports
Arbor Diameter = 2″ Arbor
Digital Display = Elevation
Conveyor = 15-1/4” x 215-3/8”

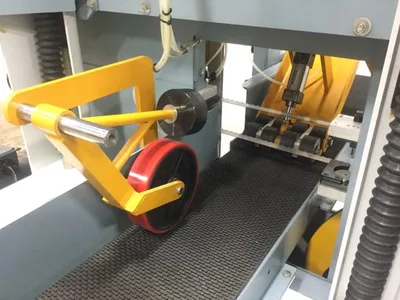

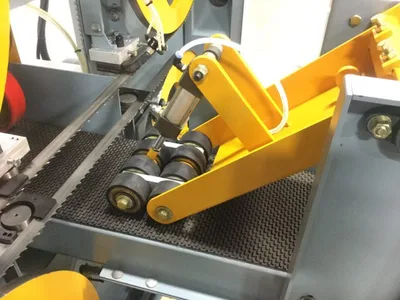

Hold Down Style = Pneumatic / Gravity

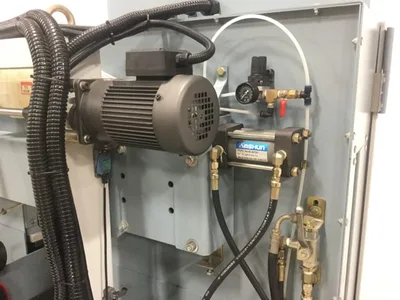

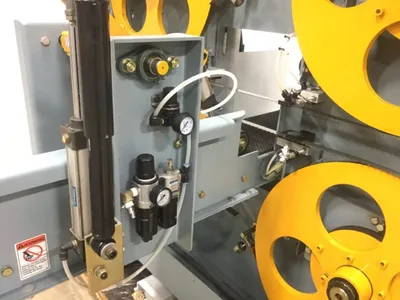

FLR Included = Filter, Lubricator, Regulater
Recommended CFM = 1744 Total CFM
Emergency Stop = Push Button
Rear E Stop = Push Button
Guarding = Full Cabinet Enclosure
Oiler = Blade Oil Mister
Fence Type = Steel
Fence Dims. = 6-1/2” Tall

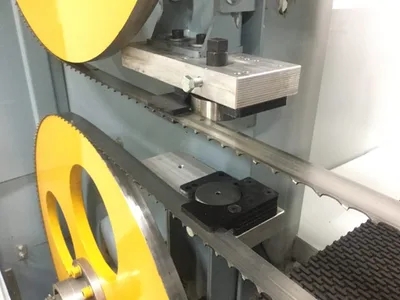

Blade Guide = Steel Blade Guides
Wheel Dims. = 1” x 28”
Wheel Cnstr. = Steel Construction
Frame Const. = 3/16” Steel Construction
Table Const. = Steel
Infeed Table = 11-1/4” x 109”
Decible Rating = 79 dB
Net Weight = 3080 Lbs.
Gross Weight = 3400 Lbs
Machine Dims. = 109” x 82” x 85”
Packaging Dims = 115” x 85” x 79”
