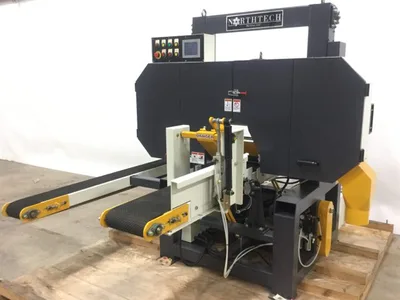

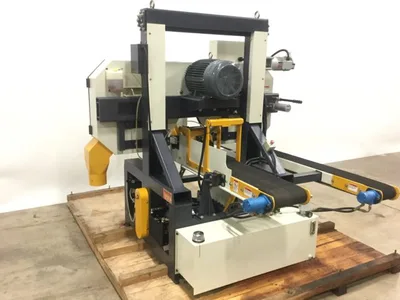

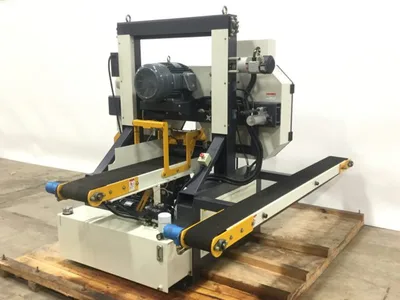

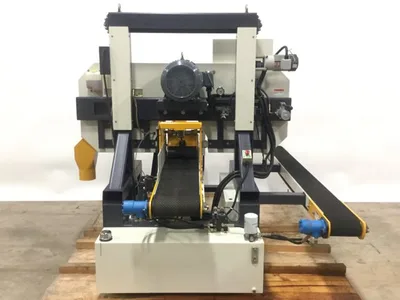

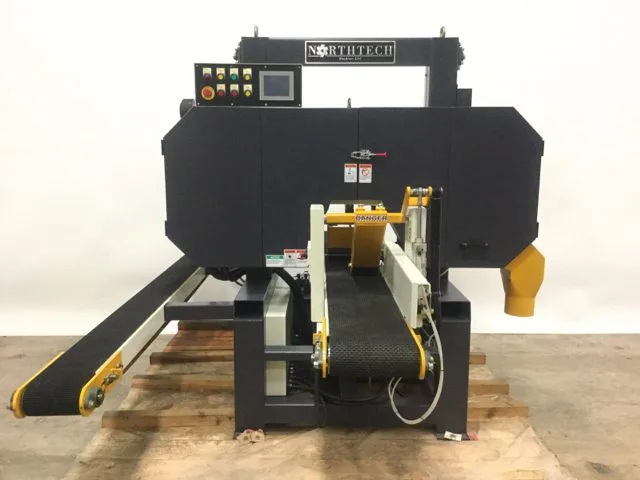

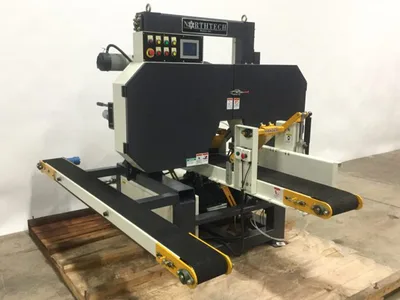

Northtech NT HBR-300S Horizontal Bandsaw

The Northtech NT HBR-300S Horizontal Bandsaw features a 20 HP soft (Wye-Delta) start motor driving the 170″ (L) blade at 6200 FPM. A 5 HP reversible hydraulic pump smoothly powers the feed conveyor at speeds between 0 to 95 FPM. Motorized elevation adjustment is intuitively controlled through a 6″ digital touchscreen. The sturdy frame is manufactured with all-steel construction.

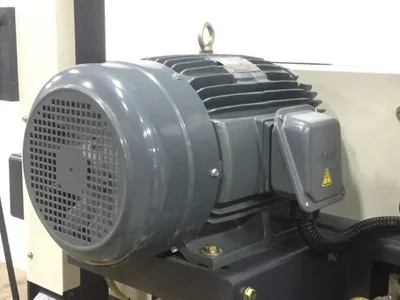

Main Motor Hp. = 20 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 45 Amps
Feed Hp. = 5 Hp.
Feed System = 11” x 218” Hydraulic Drive Belt

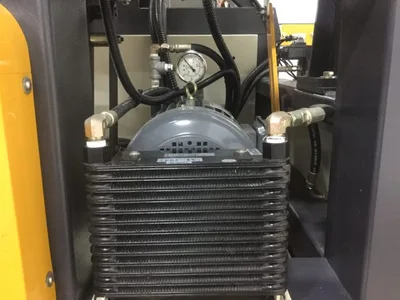

Drive System = 5 Hp. Hydraulic Pump
Feed Speed = 0 – 95 FPM
Variable Speed = Hydraulic Adjustment Knob
Reverse Feed = Yes
Elevation Hp. = 1/4 Hp.
Elevation Style = Auto Touch Screen Control
Elevation Sys. = (2) Post Jack Screw
Total Hp. = 30-1/4 Hp.

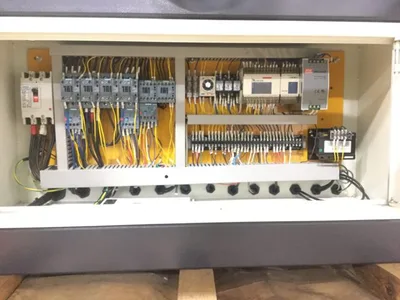

Electronics = CE Approved Components
Control Voltage = 230 Volt / 24 Volt
Assisted Start = Wye-Delta
Programmable = Elevation

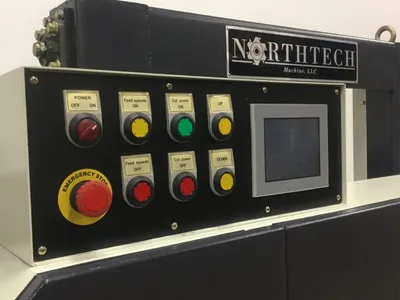

Touch Screen = 6” Digital Touch Screen
Operator Panel = Fixed
Cut Envelope = 6-3/4” x 11-3/4”
Min. Length = 16”
Max. Length = Infinite
Min. Width = 1.5”
Max. Width = 11-3/4”
Min. Thickness = 1/4”
Max. Thickness = 11-1/2”
Blade Size = 1” x 170” Bandsaw Blade
No. of Teeth = 4 TPI
Tooth Spacing = 5/16”
Blade Kerf = .063 In.
Blade Speed = 6200 FPM
Cleaning System = Weighted Wheel Scrapers
Tracking Style = Manual Adjustment
Tension Style = Hydraulic Tension
Vertical Travel = 1/4” – 6-3/4”
Dust Collection = (1) 6” @ 981 CFM
Dust Port Out = 6” Bottom
Arbor Diameter = 2”
Digital Display = 6” Digital Display
Conveyor = Rubber Belt

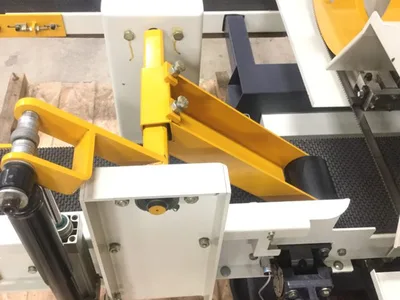

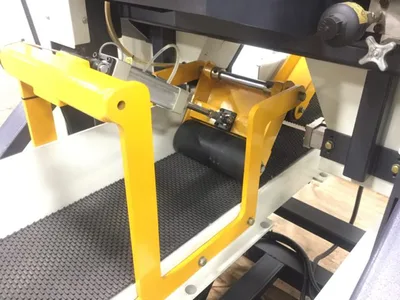

Hold Down Style = (1) Infeed (1) Outfeed Pneumat

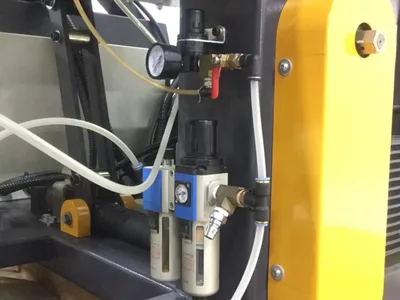

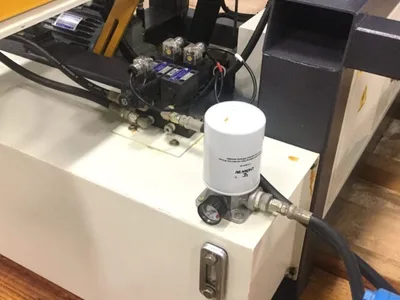

FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 981 CFM
Emergency Stop = Push Button

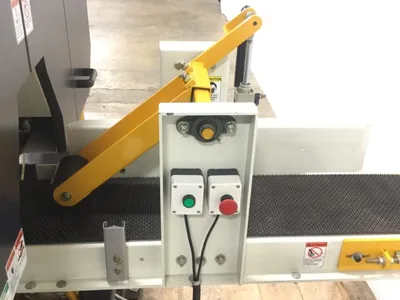

Rear E Stop = Push Button
Guarding = Full Cabinet Enclosure
Oiler = Blade Oil Mister
Fence Type = Steel
Fence Dims. = 6-1/2” Tall
Tiltable = 30 Degree Tilt

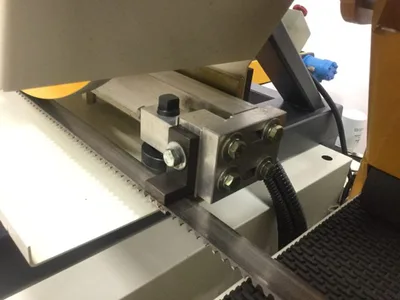

Blade Guide = Steel Blade Guides

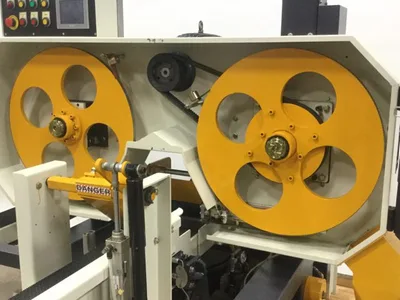

Wheel Dims. = 1” x 28”
Wheel Cnstr. = Steel Construction
Frame Const. = 3/16” Steel Construction
Infeed Table = 11-1/4” x 109”
Return Conveyor = 7-1/4” x 109”
Measure Meth. = Precision Encoder
Decible Rating = 72 dB
Machine Dims. = 109” x 85-1/2” x 80”
Packaging Dims = 111” x 89” x 85”
