The Northtech NT HBR-12E Horizontal Bandsaw features a 20 HP motor driving the 168″ (L) blade at 6850 FPM. The VFD-controlled 2 HP feed conveyor can be precisely set to speeds between 0 to 97 FPM. The sturdy frame is constructed from CNC machined steel, and the 1” x 28” CNC ground steel saw wheels have been specially heat-treated and balanced for vibration-free performance.
Maximum working size: 11-3/4” W x 11” H using hold-downs
Minimum thickness of part: 3/16”
Maximum cutting height: 11”
70 durometer (L) 216” x (W) 11-1/4”
3 Ply heavy duty industrial grade conveyor for long life
Saw blade size: 1” or 1 ¼” x 168”
Blade speed: 6850fpm

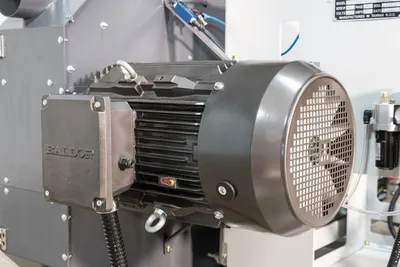

Dual voltage 20HP Baldor motor is UL / CE approved
2HP feed motor

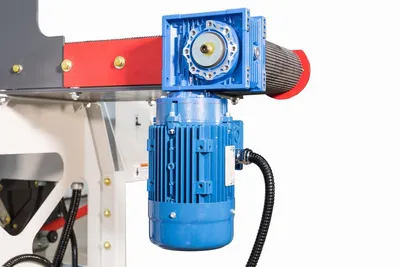

VFD drive control of 0 – 97fpm is mated to a precision gearbox drive for optimum power delivery
Frame is constructed of CNC machined steel

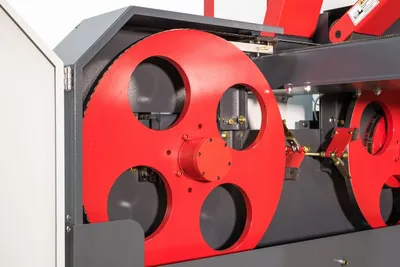

1” x 28” special heat-treated steel saw wheels, CNC ground, and balanced for vibration-free performance.
(2) Oversized precision bearings on each saw wheel shaft ensure long term cutting accuracy
(4) 4” dust ports requiring 436 CFM at each point of extraction
A precision blade guide system with steel inserts ensures consistent quality of cut.
Outside guide on a spring-tensioned lineal rail keeping guide next to each part
Air cylinder tensioned infeed roller with heavy-duty spring control.

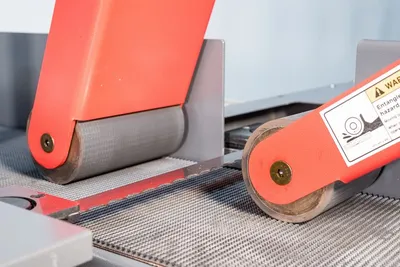

Adjustable weighted outfeed roller securely holds part to the belt.
Mechanical spring blade tensioning

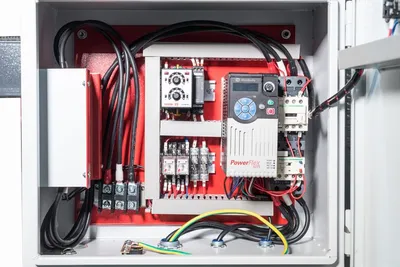

Electrical controls are neatly arranged into a dustproof cabinet
Manual raise bed
Machine dimensions (LxWxH) / Weight: 109” x 80” x 53” / 1,916lbs
Machine Packing (LxWxH) / Weight: 87” x 46” x 45” / 1,690lbs
Conveyor Table Packing (LxWxH) / Weight: 116” x 28” x 36” / 608lbs
Tool box and (1) year parts warranty included
Northtech offers a full line of dust collectors for any application.
All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble-free start-up.
Main Motor Hp. = 20 hp.
Voltage/ Freq. = 208 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 70.3 Amps
Feed Hp. = 2 Hp.
Feed System = 11-1/4” Rubber Feed Mat
Drive System = 2 Hp. Motor / Gear Box
Feed Speed = 0 – 95 FPM
Variable Speed = Inverter Controlled
Elevation Style = Manual Crank Adjustment
Elevation Sys. = Scirror Lift
Total Hp. = 22 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage
Operator Panel = Fixed
Pass-Line = 35-3/8”
Cut Envelope = 11-3/4” W x 11” H
Min. Length = 12”
Min. Width = 3/4”
Max. Width = 11-3/4”
Min. Thickness = 3/16″
Max. Thickness = 11”
Blade Size = 1” x 168”
No. of Teeth = 192 Tooth
Tooth Spacing = 7/8”
Blade Kerf = 1mm
Blade Speed = 6850 FPM
Cleaning System = Scraper / Felt Pad
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Vertical Travel = 4-5/8”
Dust Collection = (4) 4” @ 1744 CFM
Hold Down Style = Pneumatic / Gravity

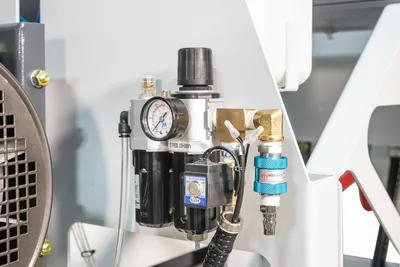

FLR Included = Filter, Lubricator, Regulater
Recommended CFM = 1/4” Line @ 90 PSI
Emergency Stop = Push Button
Guarding = Full Cabinet Enclosure
Oiler = Blade Oil Mister
Fence Type = Fixed Fence
Fence Dims. = 6-3/4” x 34-1/2”
Blade Guide = Bearing Blade Guide
Wheel Dims. = 1” x 28”
Wheel Cnstr. = Steel Construction
Frame Const. = Steel Construction
Table Const. = Steel
Decible Rating = 75 dB
Net Weight = 1930 Lbs.
Gross Weight = 2298 Lbs.
Machine Dims. = 109” x 80” x 53”
Packaging Dims = 2 Skids
