Northtech NT 800T 15 HP Spindle Shaper

This 15 HP tilting spindle shaper from Northtech presents an uncomplicated and operator-friendly design. The 1-1/4″ spindle has 45° of tilt, 5-1/2″ of vertical adjustment, and 5-1/2″ of capacity under the nut. The reversible soft-start motor smoothly spins the cutter up to a maximum speed of 9425 RPM, and the foot pedal brake swiftly brings it back to rest while leaving the operator’s hands free for other tasks. The control panel is intelligently positioned above the table near eye-level for easy reach and a constant unobstructed view of indicators and digital position displays.

Reverse Motor = Reversible

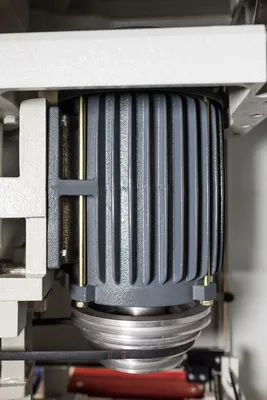

Machine Hp. = 15 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 36/18 Amps
Spindle Diam. = 1-1/4”

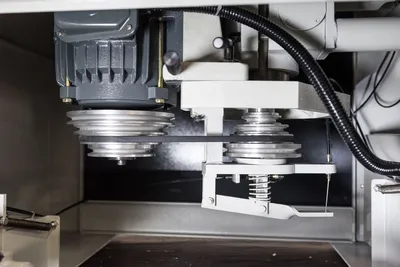

Spindle RPM = 2975 / 9425 RPM
Under Nut Cap. = 5-1/2”
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Jack Screw / Quill Housing
Total Hp. = 15 Hp.

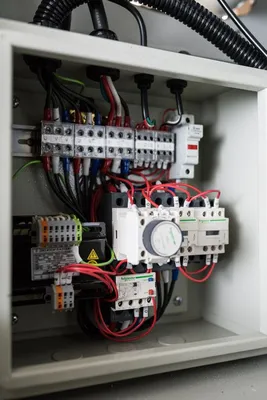

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Assisted Start = Wye-Delta
Operator Panel = Adjustable Operator Panel
Pass-Line = 35-1/2”
Vertical Travel = 5-1/2”
Dust Collection = (1) 5” @ 681 CFM
Digital Display = Fence/Tilt/Elevation
Rear E Stop = Push Button
Fence Type = Adjustable Fence
Fence Dims. = (2) 5-1/2” x 24”
Tiltable = 45 Degrees
Brake System = Foot Pedal Brake
Frame Const. = 3/16” Steel Construction
Worktable Dims. = 36-1/4” x 60-3/4”
Table Const. = Cast Iron
Measure Meth. = PT28 Digital Readout
Decible Rating = 70 dB
Net Weight = 1704 Lbs.
Gross Weight = 1907 Lbs.
Machine Dims. = 61” x 47” x 63-1/2”
Packaging Dims = 66” x 52” x 71”
