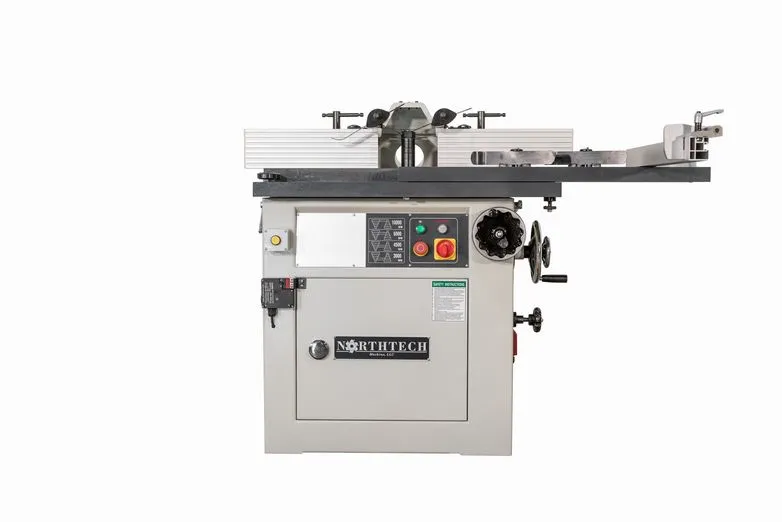

Northtech NT 525TS 5 HP Tilting Spindle Shaper With Sliding Table

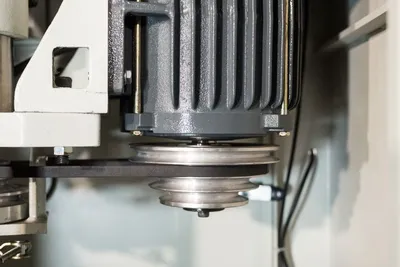

This Northtech 525 series shaper offers a sliding table to reduce material marring and a tilting spindle to quickly and consistently complete complicated profiles. The dependable 7.5 HP motor powers the spindle through operator-adjustable speeds from 3,000 to 10,000 RPM to suitably handle a wide variety of cutter heads and species. The 1-1/4″ diameter spindle can be tilted from -5 to +45 degrees has a vertical adjustment range of 5″. The included micro-adjustment fence system is independent from left to right for fast and easy setup and includes metal hold-downs, a sliding-table clamp, and a safety guard for secure and safe operation.

Machine Hp. = 5 HP
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 16/8 Amps
Spindle Diam. = 1-1/4”
Spindle RPM = 3000 – 9800 RPM
Under Nut Cap. = 5”
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Quill Housing/Jack Screw
Total Hp. = 5 HP
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt / 24 Volt
Pass-Line = 34-1/4”
Vertical Travel = Spindle 5”
Dust Collection = (1) 4” @ 450 CFM
Hold Down Style = Adjustable Metal Hold Downs
Total Clamps = (1) Sliding Table Clamp

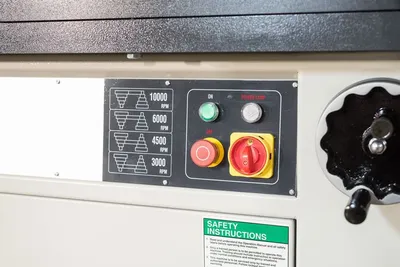

Emergency Stop = Push Button
Fence Type = Micro Adjustment Fence
Fence Dims. = (2) 5” x 17”
Tiltable = -5 / +45 Degrees
Sliding Table = 33-1/2” Travel
Frame Const. = Cast Construction
Worktable Dims. = 35-1/2” x 27-1/2”
Table Const. = Cast Iron
Decible Rating = 70 dB
Net Weight = 882 Lbs.
Gross Weight = 980 Lbs.
Machine Dims. = 35” x 41” x 43”
Packaging Dims = 41” x 38” x 48”
