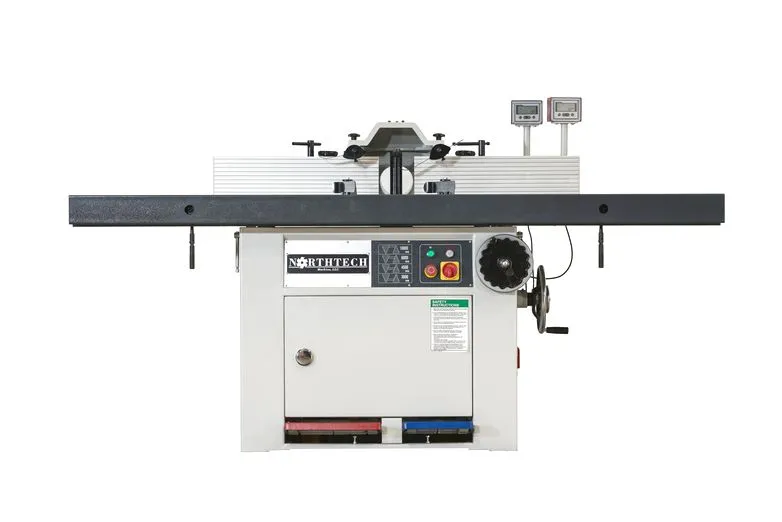

Northtech NT 735LT 10 HP Spindle Shaper

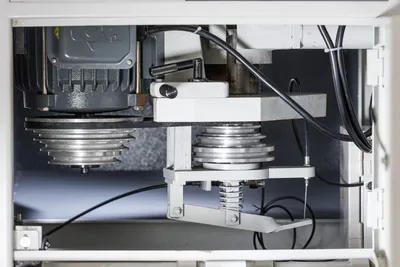

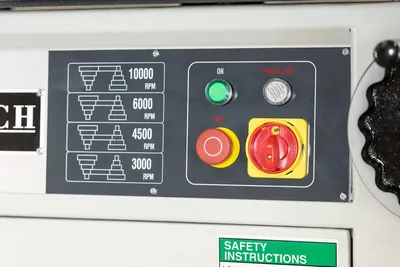

The Northtech NT 735LT series single-phase spindle shaper has an impressive list of features and options. The standard machine gets a reversible 10 HP motor with belt-adjustable speeds of 3,000, 4,500, 6,000, and 10,000 RPM. The standard 1-1/4″ spindle with 6″ under the nut has 6″ of manually-adjusted vertical travel. Brake and spindle lock pedals, dust/safety hood, and micro-adjustable fences are also included.
Options include:
Tilting Spindle / Sliding Table
Tilting spindle assembly (-5 / + 45 Degrees)
Sliding table with 8 rollers bearings
15 HP Motor
Voltage change to 460 volt
M-10 digital LED readout of spindle height (installed)
DP-727 digital electronic set works with power raise and lower plus has 99 position memory/recall
*Additional options available on the MK5 package:
Optional 7” under nut spindle with spacers and nut
Optional 3/4”, 1”, 1-1/4”, 40mm spindle with spacer nut

(1) Toolbox
Warranty is one-year parts
All machines are tested stateside before shipment to ensure trouble-free start-up.
Reverse Motor = Reversible
Machine Hp. = 10 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 25/12.5 Amps
Spindle Diam. = 1-1/4”
Spindle RPM = 2875 – 9500 Rpm
Under Nut Cap. = 6”

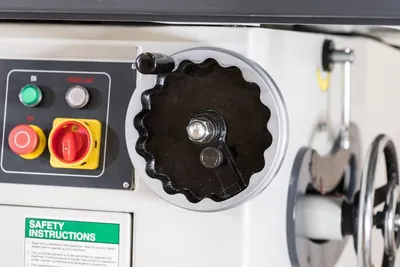

Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Jack Screw / Quill Housing
Electronics = UL Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Pass-Line = 35”
Vertical Travel = 6”
Dust Collection = (1) 5” @ 681 CFM
Emergency Stop = (1) Push Putton (2) Bars
Fence Type = Micro Adjustment Fence
Fence Dims. = (2) 6” x 23-3/4”
Micro Fence = Micro-Adjustable
Tiltable = -5 / +45 Degrees
Brake System = Foot Pedal Brake
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 36” x 47-3/4”
Table Const. = Cast Iron
Infeed Table = 20”
Outfeed Table = 20”
Measure Meth. = PT28 Digital Readout
Decible Rating = 73 Db
Net Weight = 1770 Lbs
Gross Weight = 1955 Lbs.
Machine Dims. = 88” x 48” x 50”
Packaging Dims = 91” x 55” x 53”
