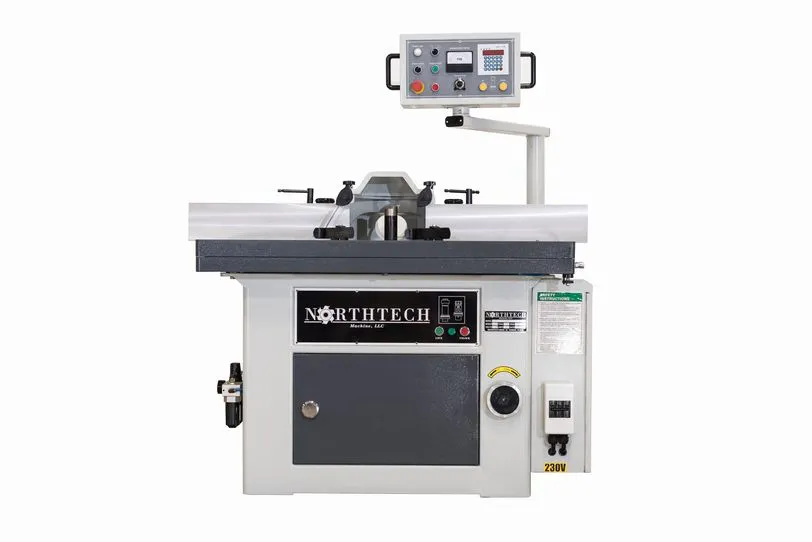

Northtech NT 770HSK 10 HP Spindle Shaper

Designed for precise, accurate, and powerful operation, this Northtech shaper is feature-rich. Included is a 1-1/4″ HSK-63F spindle that boasts a tolerance of 0.0001″, a pneumatically-powered spindle hold/release system with an electronic sensor to ensure proper mating, and a pushbutton height adjustment with a digital encoder measurement. The 10 HP motor offers inverter-controlled speeds of 3,000 – 13,350 RPM and fully-electronic braking to quickly and safely bring the spindle to rest. The heavy steel and cast iron construction with precision-milled worktable provides a strong a stable platform for it all.

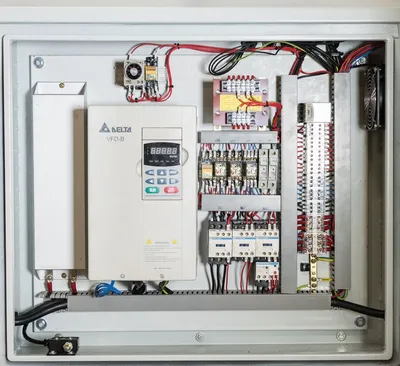

3,000 – 13,350RPM, 10HP inverter-controlled spindle

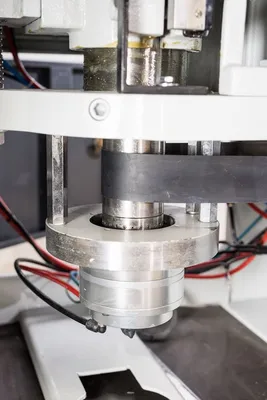

(1) 1-1/4” x 4’’ HSK-63F spindle included
HSK-63F spindle release system is developed by Andi CNC Machining Centers
Spindle tolerance of .0001″ *
Includes sensor light to ensure proper mating of the chucks, as well as correct full pneumatic pressure for safety
Moveable overarm control panel
35″ Ergonomically designed precision-milled table
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside before shipment to ensure trouble-free start-up.
Main Motor Hp. = 10 hp.
Reverse Motor = Reversible
Machine Hp. = 11 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 30/15 Amps
1st Spindle = 1-1/4” x 4” Spindle
Spindle Diam. = 1-1/4”
Spindle RPM = 13350 Rpm Adjustable
Under Nut Cap. = 4-1/4”
Elevation Hp. = 1 Hp.

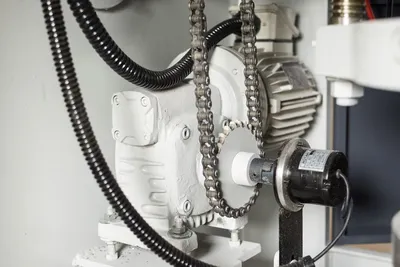

Elevation Style = Push Button

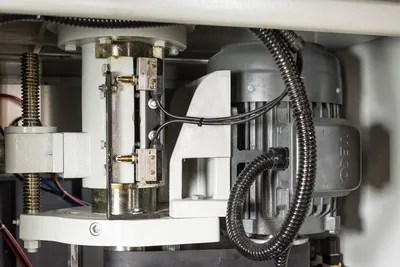

Elevation Sys. = Jack Screw / Quill Housing
Total Hp. = 11 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Programmable = Elevation
Operator Panel = Adjustable Operator Panel
Pass-Line = 35”
Vertical Travel = 4-1/8” Spindle Travel
Dust Collection = (1) 4” (1) 5” @ 1117 CFM
Dust Port Out = (1) 4” (1) 5”
Digital Display = Elevation
FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 1/4” Line @ 90 PSI
Emergency Stop = Push Button
Fence Type = Adjustable
Fence Dims. = (2) 5-1/2” x 24”
Micro Fence = Micro-Adjustable
Brake System = Electronic Braking
Frame Const. = 3/16” Steel Construction
Worktable Dims. = 38” x 51”
Table Const. = Cast Iron
Measure Meth. = Precision Encoder
Decible Rating = 83 dB
Net Weight = 1650 Lbs.
Gross Weight = 1850 Lbs.
Machine Dims. = 54” x 42” x 66-1/4”
Packaging Dims = 59” x 45” x 75”
