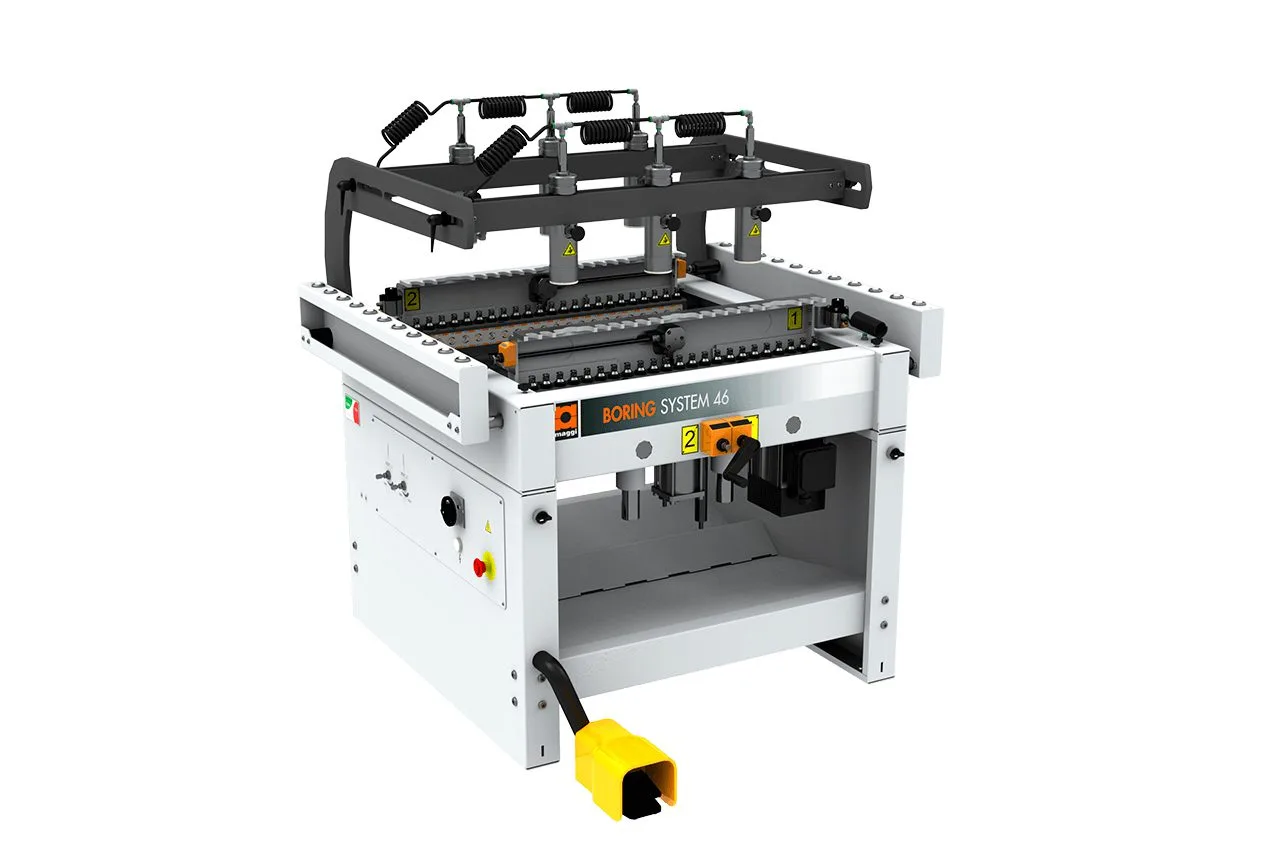

Maggi Boring System 46

Maggi System 46 Double Row Line Boring Machiner
Efficient and durable with an unbeatable price-performance ratio. Maggi boring machines are simple, compact solutions, ideal for those who manufacture custom-made furniture and furnishings.

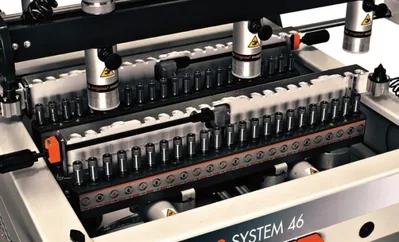

(2) 23-Spindle Heads on 32 mm Centers
Distance Between First And Last Spindle Center Of Each Head Is 27-23/32″ (704 Mm)
Front End Adjustment For Quick And Easy Set-Up.
(2) 1.5 HP 2,800 RPM Motors
Max Boring Depth Is 2-1/16″ (55 mm).
Side Depth Counter System; Extractable 400 mm Support Rollers For Long Panels.
Maximum Distance Between Heads Is 25-19/32″ (650 mm) And Minimum Width Is 5-1/8″ (130 mm).
Complete with: 46 quick-change chucks, 10′ extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps.
This machine can be used for single or double-row line drilling.
Uses 24 LH (Red) And 22 RH (Black) Boring Bits
