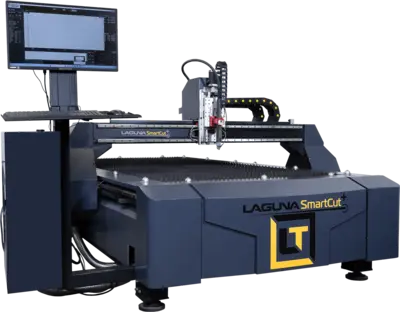

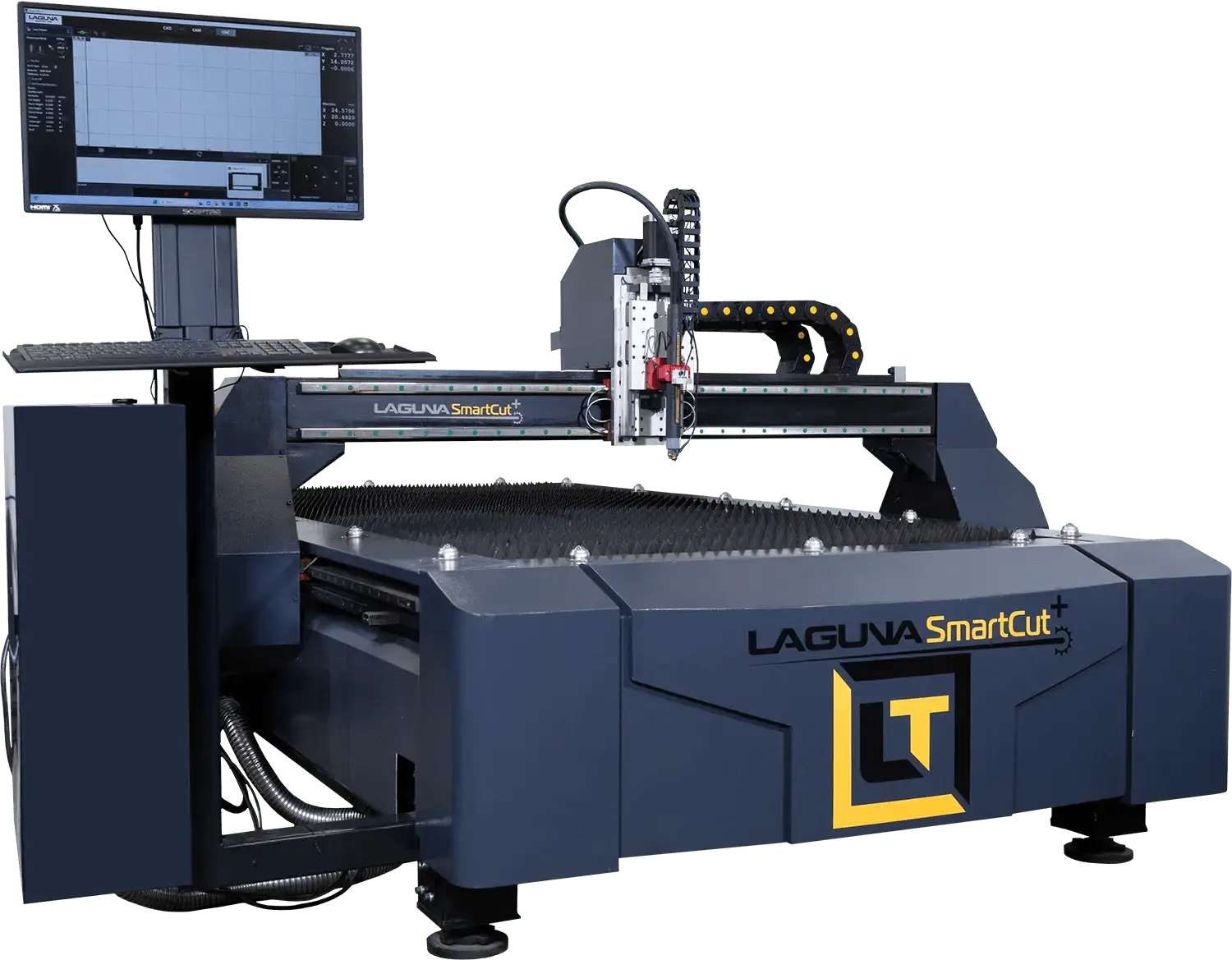

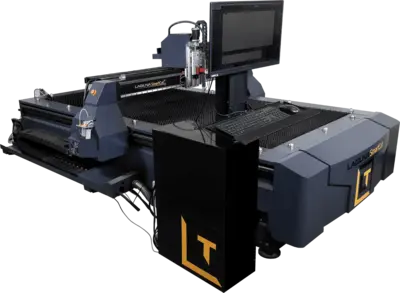

The SmartCut Plus is built with a welded all-steel frame. FlashCut CNC controls come standard on all SmartCut machines. Decades of experience, superior features, and thousands of satisfied customers make FlashCut’s fully integrated CAD/CAM/CNC plasma control system among the best in the world.

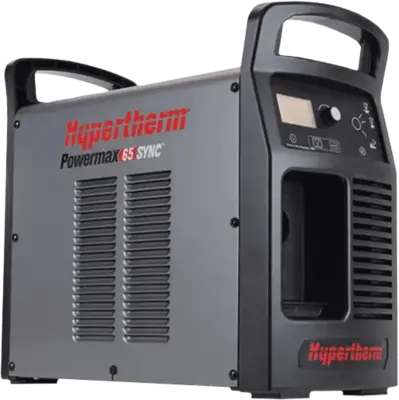

Laguna Tools partners with Hypertherm to offer premium plasma cutters that pair perfectly with your table.
Features:
Material database and cut charts built-in
Laser with built-in skew
Magnetic Breakaway torch with active feedhold
Full CAD/CAM on machine control
DXF file import and export
Realtime Height Control
Plasma Marking

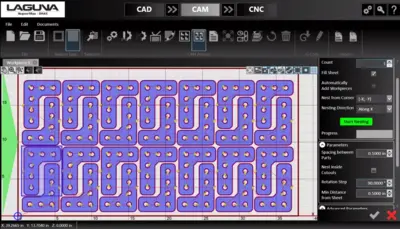

True Shape Nesting. Advanced Leadin/Leadout Editing
Flashcut American Made Controls
Water Table
X, Y helical rack and pinion, Z ball screw
Drive system Nema 32 (with Servo option)
24-inch Control screen
GH20 Hiwin Bearing cards
Welded Steel Frame (no Aluminum extrusion or low-cost bolt together tables)
Laser Precision Pointer
7 Guage Mild Steel Slats
Z Clearance 8 inches
Lifetime Phone Support
1-year Warranty
Automatic Leadin on Restart
THC (Torch Height Control)
Move to Point in Viewport
Progress Meter
Workpiece Alignment
Smart Touch Off
Laser Pointer
Marker Support
Cutting Simulation
DXF Export
Part Shading
Advanced LeadIn/Leadout Editing
Advanced Small Hole Processing
Corner Looping
Importing Parts from External Files
True Shape Nesting
Multiple Tabs
Advanced Drilling and Piercing
Workplace Free Cutting
Nest Filler Part
Bridge Entities Tool
Color Image Import
Fix Drawing Tool
Shape Tool
Weld Entities Tool
Arc Fitting
Automatic Leadin on Restart
THC (Torch Height Control)
Move to point in Viewport
Progress Meter
Rip Cutting
Workpiece Alignment
Smart Touch Off
