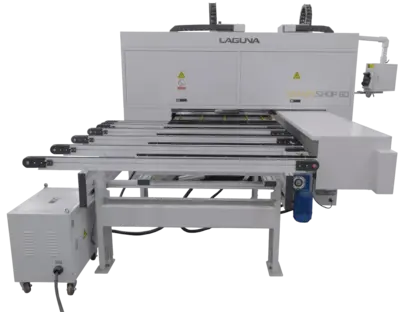

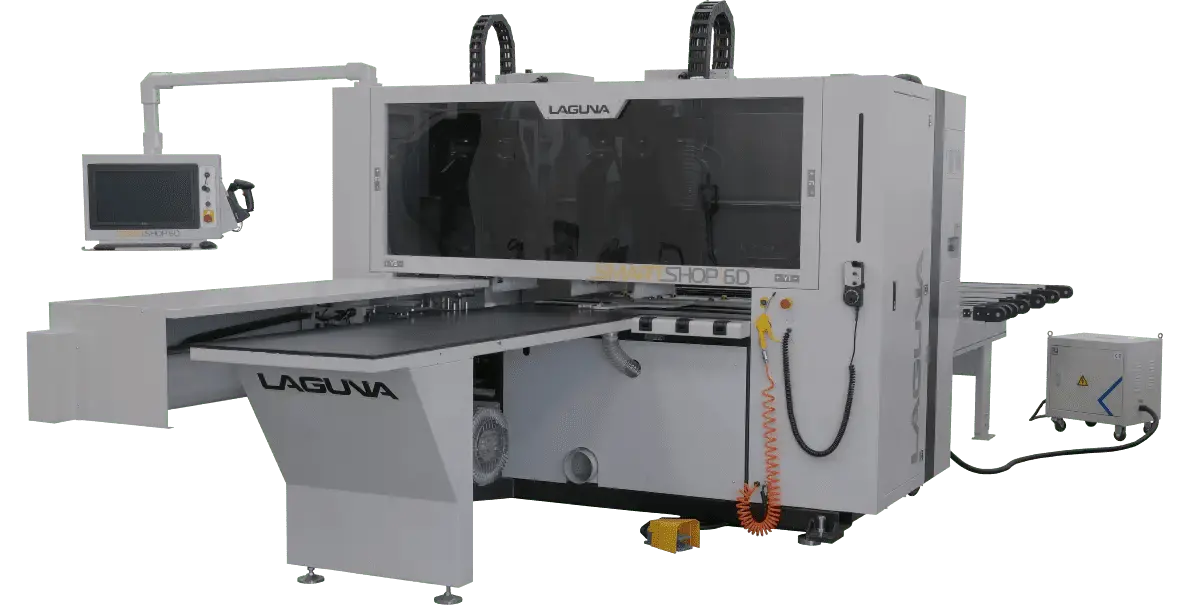

Laguna SmartShop® 6D CNC Router

The SmartShop® 6D is a compact, six-sided drilling machine from Laguna Tools. The 6D combines performance and flexibility for production of panels requiring unique routing, drilling, and boring patterns on both sides of a panel. The unique nature of these machines allows each side to be machined simultaneously, allowing for a high degree of automation and productivity.
Features:
1 Piece Welded Frame
Air Table For Floating Part Transfer
Rear Discharge With Conveyor Movement
Min. Work Piece: 8″ x 1-1/8″ x 2″
Max Work Piece: 110″ x 47″ x 2″
Double Clamp Fix Method For Hold Down

Y-Axis: 1.3kw
Z-Axis: 850w
X-Axis: 400w
W-Axis: 400w
Top Spindle: 6KW ATC 18K RPM 4 Position ATC
Lower Spindle: 3.5KW MTC 18K ROM
12+4 12 Vertical & 4 Horizontal 2X 2Y
9 Position
