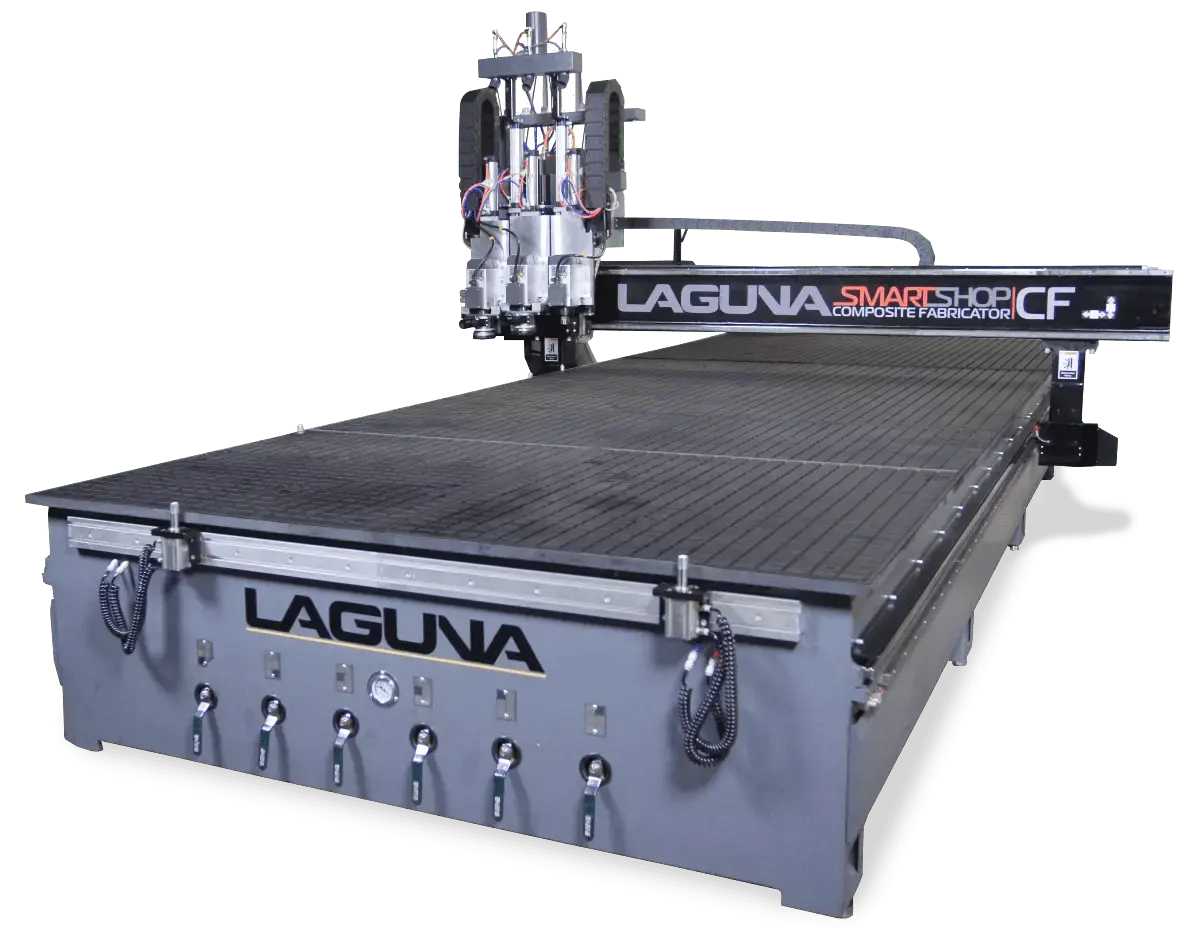

Laguna SmartShop® Composite Fabricator 20 CNC Router

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

360 Degree Machinery
687Listings|5Followers
View seller profile
Overview
CNC Routers
LAGUNA

The SmartShop Composite Fabricator is specifically designed for cutting Aluminum Composite Panel (ACP) or Aluminum Composite Material (ACM). ACM is a widely used term describing flat panels that consist of a non-aluminum core bond between two aluminum sheets. Aluminum sheets can be coated with PVDF or polyester paint. ACPs are frequently used for external cladding of buildings (building facades), for insulation and for signage. Laguna has fabricated the perfect machine to conquer this material.
Features:
Huge machining area 6′ x 20′ — 2000mm x 6000mm *Custom sizes available.
Unique Pressure “Shoe” design for optimum depth accuracy- even if the panel is not completely flat.
Helical Rack and Pinon drives on X and Y axes. Ball screw on Z axes.
1,2 and 3 spindle design. Also available with ATC spindle.
(3) 6HP Italian HSD spindles shown on the machine below.

Specs

Huge machining area 6′ x 20′ —2000mm x 6000mm *Custom sizes available
Unique Pressure “Shoe” design for optimum depth accuracy- even if the panel is not completely flat
Helical Rack and Pinon drives on X and Y axes. Ball screw on Z axes
1,2 and 3 spindle design. Also available with ATC spindle

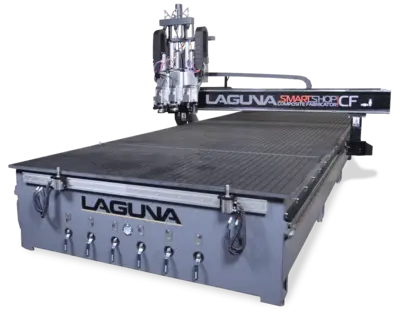

(3) 6HP Italian HSD spindles shown on the machine below
B&R Industrial Controller with Touch Screen Controls
Planetary Gear Boxes on all 3 axes
6 Zone Vacuum Table
(2) 10HP Vacuum Pumps
