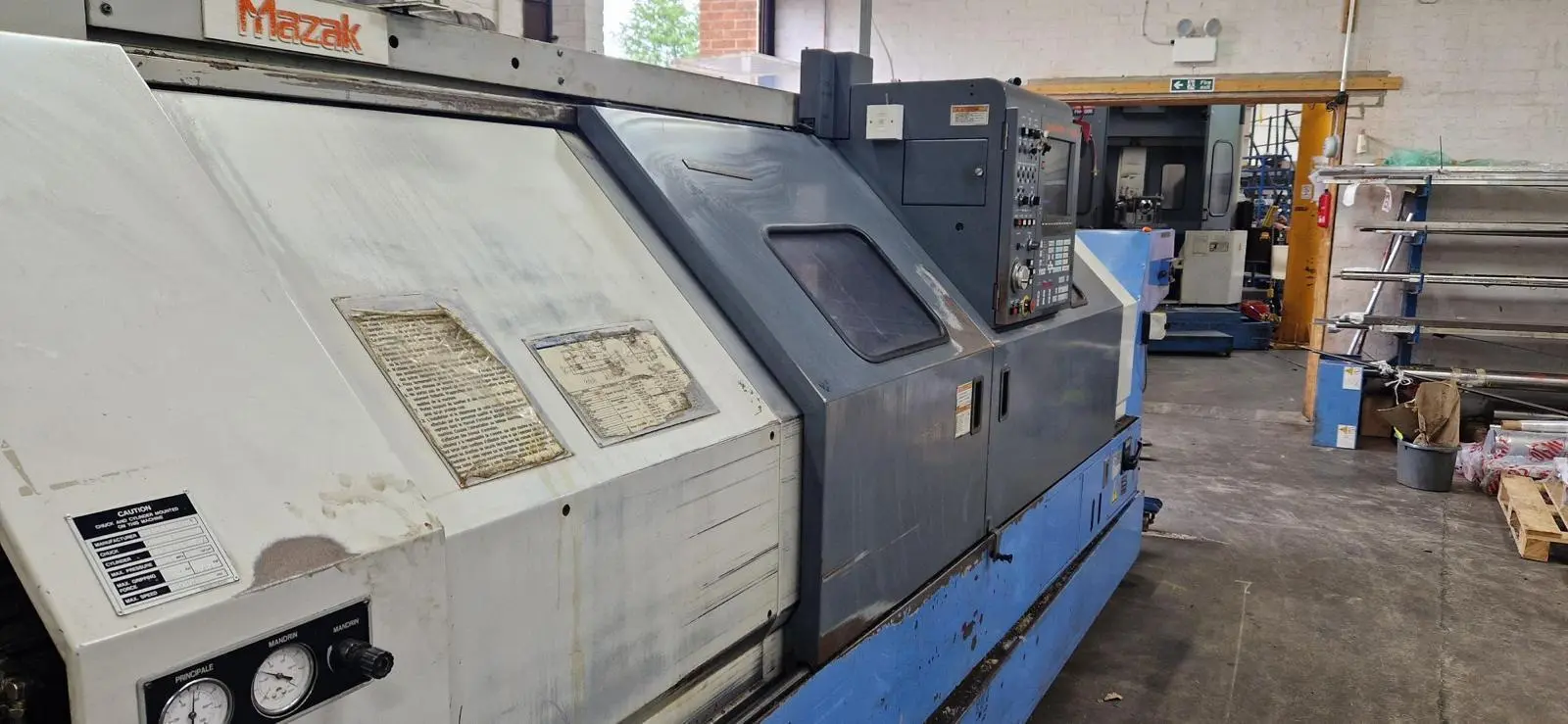

USED 1998 MAZAK QUICK TURN 40
Overview
Description
MAKE MAZAK, MADE IN JAPAN
MODEL QUICK TURN 40
YEAR 1998
CONTROL MAZATROL T PLUS
CHUCK SIZE 400.0 mm
MAX SWING OVER BED 650.0 mm
MAX SWING OVER CARRIAGE 400.0 mm
MACHINING LENGTH 1500.0 mm
TURNING DIA 400.0 mm
TRAVEL X AXIS: 280.0 mm
Z AXIS: 1536.0 mm
SPINDLE SPEED 3,000 RPM
SPINDLE MOTOR 29.9 kW
SPINDLE NOSE A2-8
TURRET TOOL CAPACITY 12 TOOLS STATIONS
MACHINE DIMENSIONS
MACHINE WEIGHT 5715 kgs
PLUS
TOOL SETTING ARM
SWARF CONVEYOR
TRANSFORMER
Specifications
| Swing | 20.08" | 510.03 mm |
|---|---|---|
| Machining Length | 40.31" | 1,023.9 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 2.75" | 69.85 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 15.75" | 400.05 mm |
