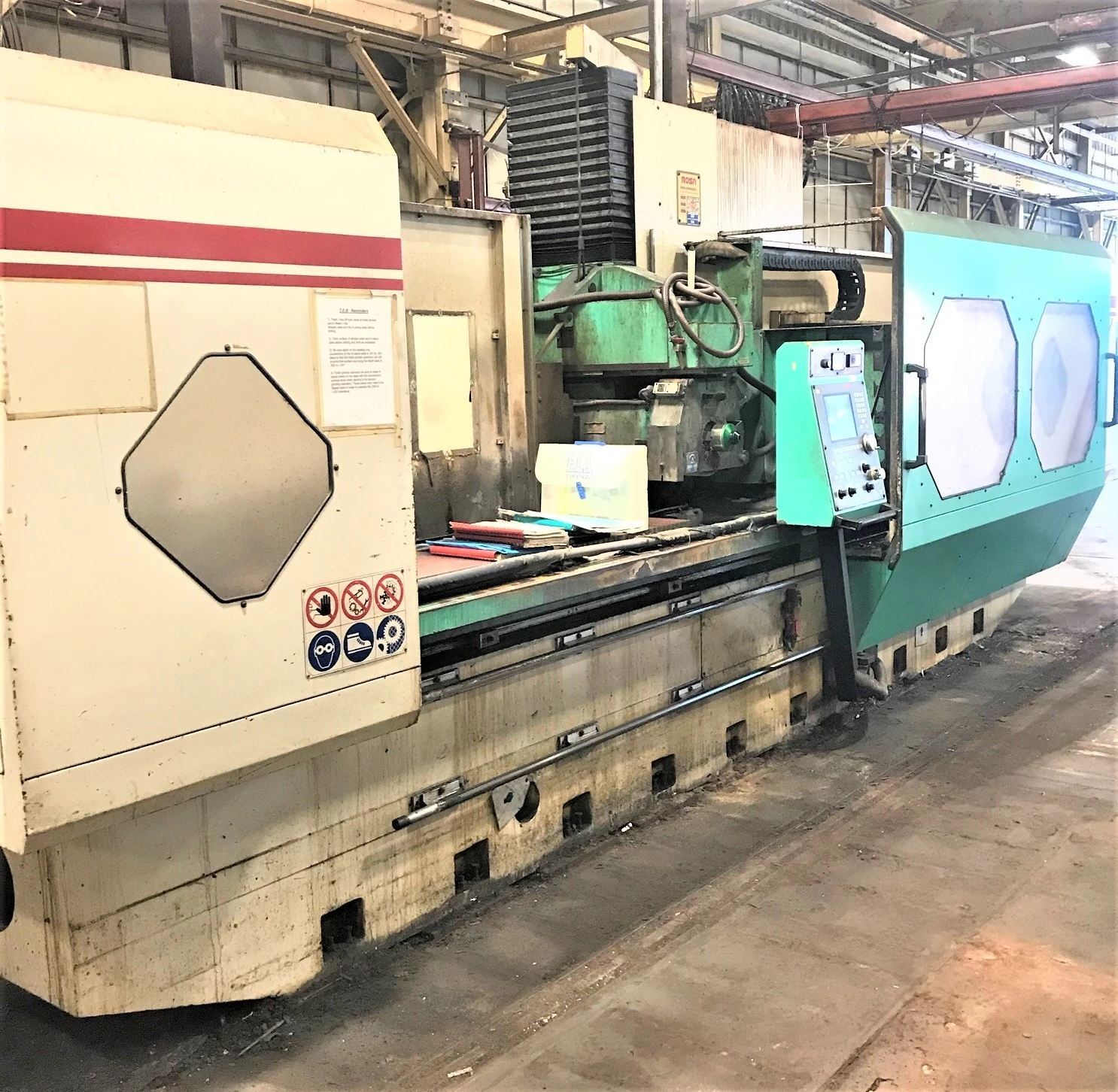

USED 1998 ROSA AVION18.7

Year 1998, put in service Feb. 2000
19 3/4 x 72 Mag Chuck x 2 5/8 tall, low profile
Wheel size 18 x 8" x 3"
4 Axis X - Y - Z (U auto dresser)
Built on spindle auto balancer
Vari chuck controller
CNC Control E.C.S. 2400
Max 440V admissable weight on table 6,600 lbs.
Overall 268" right to left x 118" high x 127 front to
back with control monitor
Table surface 21 1/2 x 82"
Long travel 94 1/8 max grinding travel 88 1/2
Cross travel 29 1/2
Vertical grinding height 27 1/2
Wheel speed 1450 RPM Variable
Spindle Motor 20 HP
Hydraulic Motor 12.5 HP
Machine weight 35,200
Oil Chiller
Cosema Paper Filter System with Magnetic
Seperator, 36" wide paper used, coolant pump
Nice Selection of Manuals (see picture attached) including Programming, Operating, Operating & Maintenance
