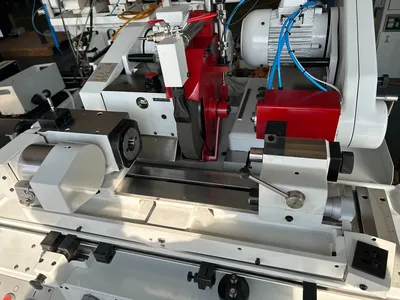

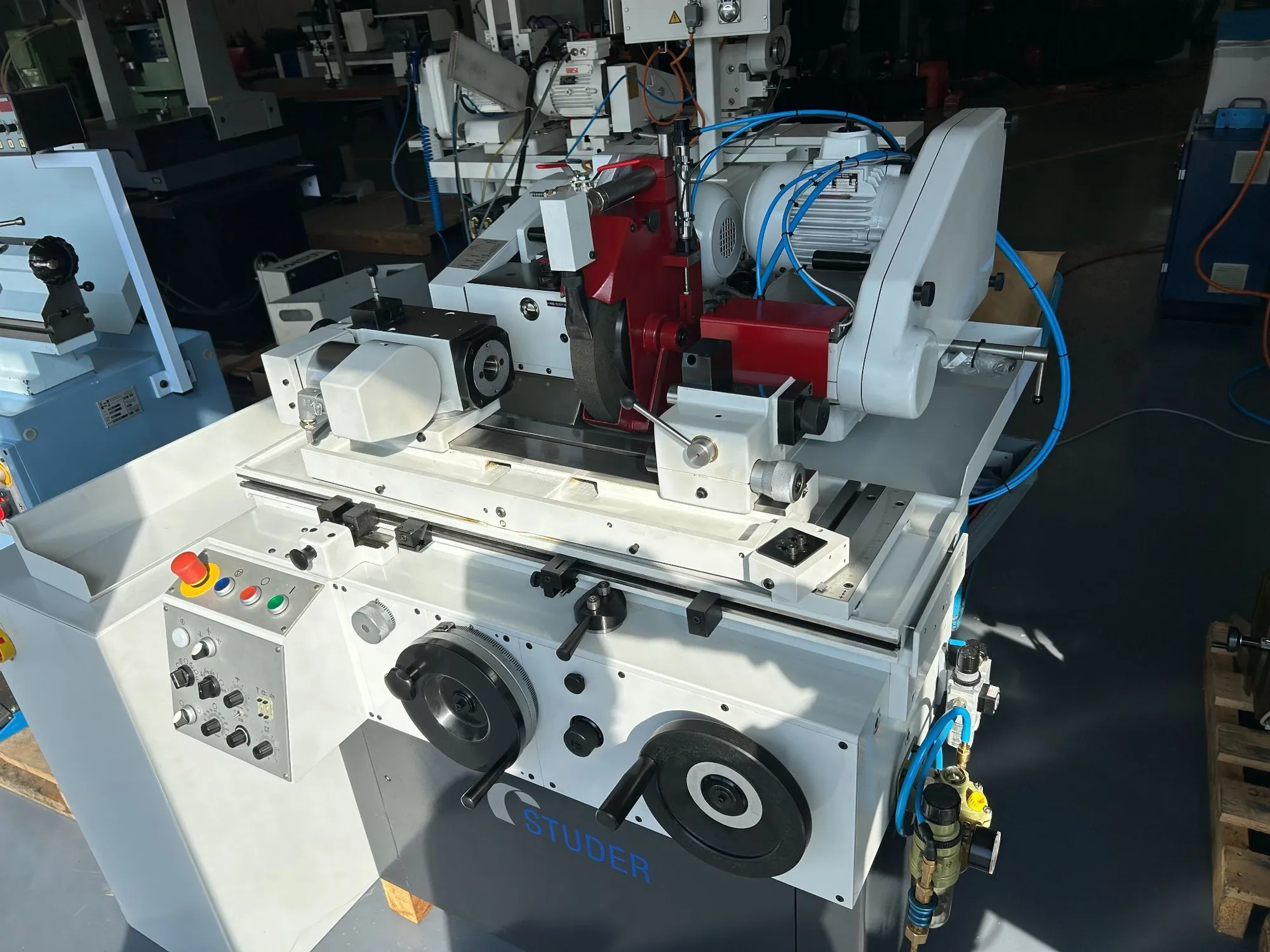

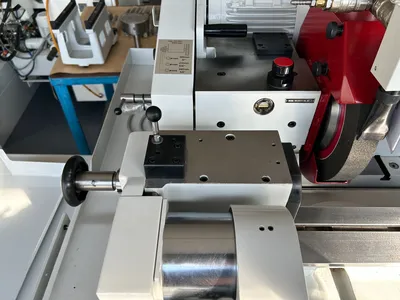

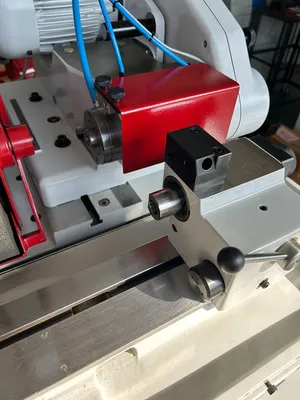

One Used Studer S20-12 Universal Cylindrical Grinder, Machine is in Excellent Condition.
Technical data
Centre height 100 mm
Distance between centers 400 mm
Grinding wheel:
Diameter 300 mm
Width 30 mm
Bore 127 mm
Angular displacement 30 °
Work piece spindle head:
speeds:
stepless
from 60 t/min
up to 1200 t/min
rotatable 20 °
Inner taper type W20
Spindle taper 4 CM
Taper in tailstock: 2 CM
Table angular displacement 30 °
Table speed:
stepless
from m/min
from 100 mm/min
up to 3500 mm/min
Voltage 50 Hz 3x 380 Volt
External Grinding wheel motor 4.5 CV
Machine's weight about 1900 kg
Overall dimensions machine:
Length 1500 mm
Width 1400 mm
Height 1600 mm
Various accessories:
Internal grinding attachment swivelable:
Spindle speeds 45000 t/min
Reversible dressing device
Laterally pivotable dressing device
Magnetic chuck diameter 120 mm
Grinding wheel with flange
Set of flanges for internal grinding
Steady
Three-jaw bezel folds open
Set of collets
Balancing support
Set of centers
Set of driving dogs
Tailstock with fine adjustment
Grinding wheel guard
Safety device
Technical specifications without guarantee.
