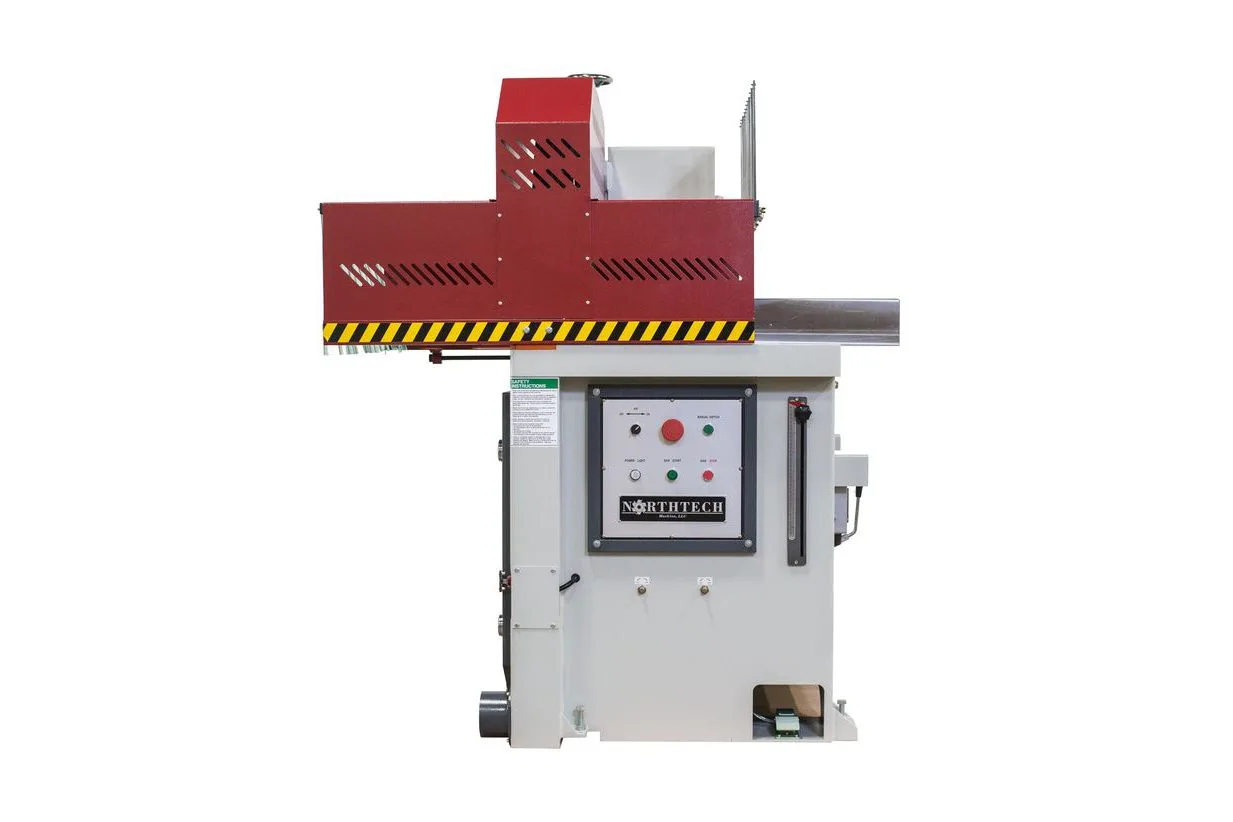

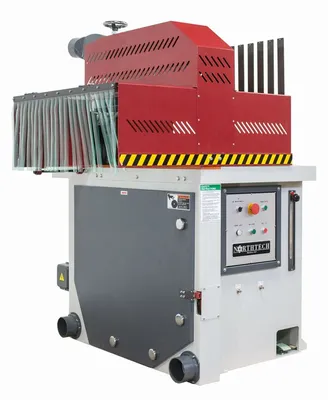

Northtech NT CS36L‑2534 36″ 25 HP Timber Upcut Saw (Left‑Hand Cut) 460V
Overview
Description

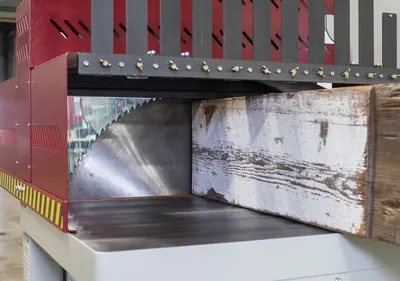

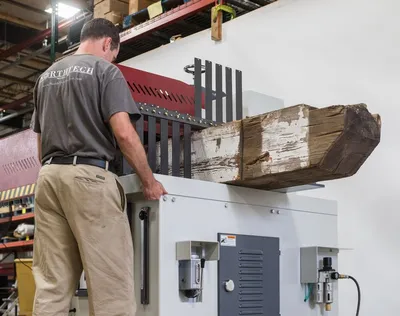

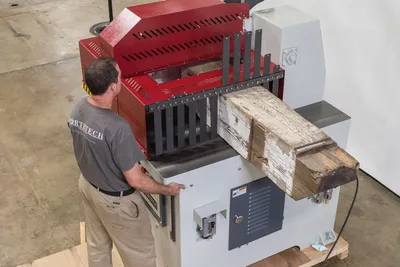

Quickly and safely cut boards and timbers up to 33 inches wide or 12 inches high with this up-cut saw from Northtech. The powerful 25 HP motor and 36″ diameter blade make for fast work with consistent results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator speed and accuracy.
*Be sure to us about the newly-available “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!
Specifications

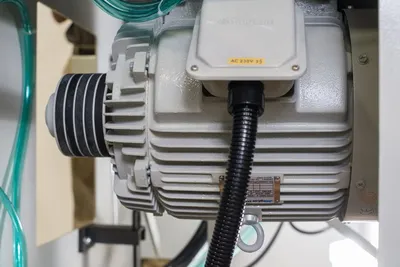

Main Motor Hp. = 25 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 30 Amp s
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Assisted Start = Wye-Delta
Cut Envelope = 2” x 33” 12” x 12”
Max. Width = 2” x 33”
Max. Thickness = 12”
Arbor Rpm = 1500 Rpm
Blade Size = 36” Tungsten Carbide Tipped
No. of Teeth = 120 Tooth
Tooth Spacing = 1”
Blade Kerf = .305 In.
Dust Collection = 681 CFM @ Extraction Point
Dust Port Out = 2- 5” Top 2- 5” Bottom
Arbor Diameter = 2″ Arbor
Cycles/Minute = 14 Cuts Per Minute
Hold Down Style = T Clamp
FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 3/8” Supply Line @ 90 Psi
Emergency Stop = Push Button
Safety Feature = Safety Interlock Switch
Guarding = High Visibility Guarding
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable
Fence Dims. = 3” x 39-3/4”
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 34-3/4” x 57-3/4”
Table Const. = Cast Iron
Decible Rating = 79 dB
Net Weight = 2605 Lbs.
Gross Weight = 2900 Lbs.
Machine Dims. = 66” x 58” x 78”
Packaging Dims = 62” x 45” x 79”
