Northtech NT CS30L-1532 30″ 15HP Upcut Saw (Left-Hand Cut) 230V

This innovative up-cut saw from Northtech quickly and safely cut boards up to 27-3/4 inches wide or 10-3/8 inches high. The powerful 15 HP motor and 30″ diameter blade reliably produce fast and consistent results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator speed and accuracy.
*Be sure to ask us about the newly-available “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!

15 HP motor
30” Carbide tipped blade included
1600 RPM
2” Saw arbor diameter
Cycle speed: 12-15 stroke/min
Pneumatic cycle
Quick access on the front of the machine to adjust blade stroke.
Safety interlock on the blade access door
Table size: 50” x 32”
(3) 5″ dust ports requiring 981 CFM at point of extraction
Net / Gross weight: 1,704 lbs. / 1,915 lbs.
Packing dimensions: (L) 56″ x (W) 38″ x (H) 69″
(1) Toolbox and manual
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free startup.

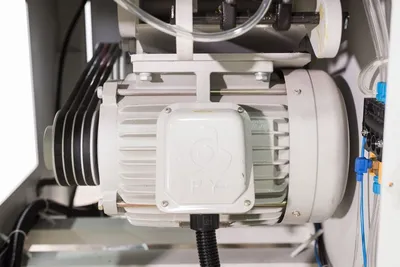

Main Motor Hp. = 15 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 32 Amps
Total Hp. = 15 Hp.

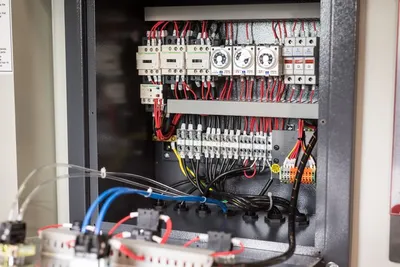

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Assisted Start = Wye Delta
Pass-Line = 36”
Max. Width = 1” x 25-1/2”
Max. Thickness = 10-3/8” x 2-1/2”
Arbor Rpm = 1600 Rpm
Blade Size = 30” Tungsten Carbide Tipped
No. of Teeth = 120 Tooth
Tooth Spacing = 3/4”
Blade Kerf = .185”
Dust Collection = (3) 5” Ports @ 981 CFM
Arbor Diameter = 2″ Arbor
Cycles/Minute = 12-15 Cycles Per Minute

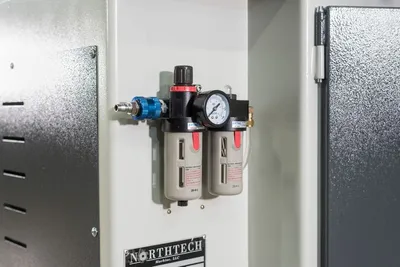

FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 1/4” Line @ 90 PSI

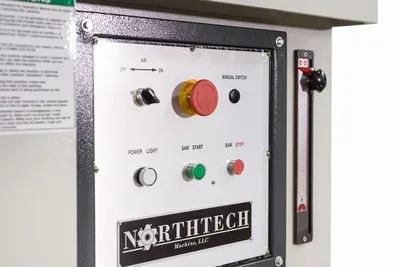

Emergency Stop = Push Button
Safety Feature = Safety Interlock Switch
Guarding = Full Guard with Clear View
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable Fence
Fence Dims. = 3-3/4” x 39-3/8”
Frame Const. = Cast/Steel Construction
Worktable Dims. = 50” x 31-7/8”
Table Const. = Cast Iron
Decible Rating = 77 dB
Net Weight = 1704 Lbs.
Gross Weight = 1915 Lbs.
Machine Dims. = 50” x 64” x 63”
Packaging Dims = 56” x 38” x 69”
