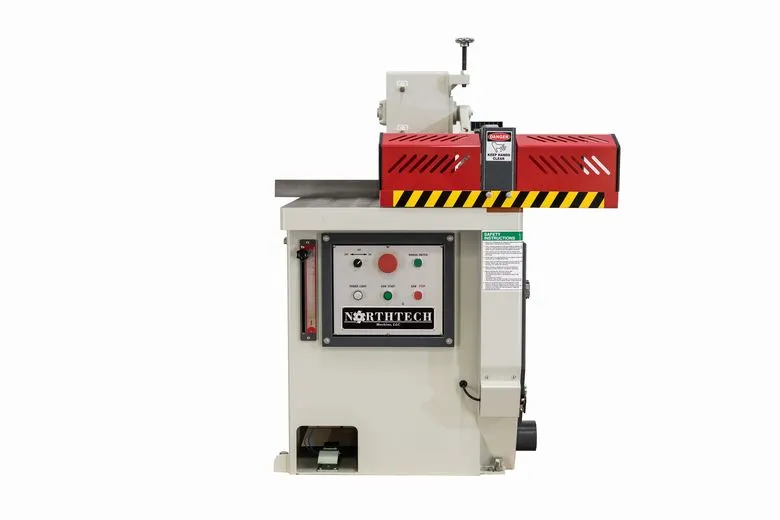

Northtech NT-UCS24 (24″) 15HP Upcut Saw (Right or Left) 230/460V

This innovative up-cut saw from Northtech quickly and safely cut boards up to 21 inches wide or 8 inches high. The powerful 15 HP motor and 24″ diameter blade reliably produce clean and consistent results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator speed and accuracy.
* “UCS” up-cut saw models, offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!

Max cutting capacity: 2″ x 21″, 4″ x 19″, 6″ x 15″, 8″ x 8″

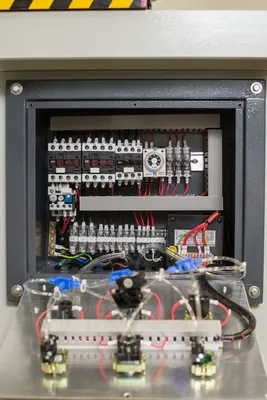

15HP motor, 3PH 230V with 24V magnetic controls
24” Carbide tipped blade included
1” Saw arbor diameter
Cycle operation: Pneumatic
Quick access on the front of the machine to adjust blade stroke.
Safety interlock on the blade access door
Table size: 28-3/4” x 45”
2100 RPM
Net / Gross weight: 1,285 lbs. / 1,458 lbs.
Machine dimensions: (L) 32″ x (W) 45″ x (H) 56″
Packing dimensions: (L) 36″ x (W) 51″ x (H) 61″
(1) Toolbox and manual
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free startup.

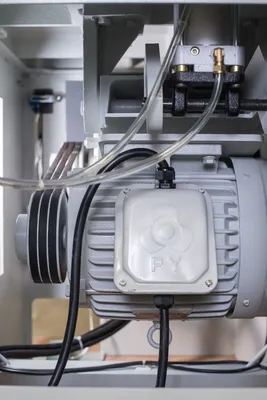

Main Motor Hp. = 15 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 16 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Assisted Start = Wye-Delta
Pass-Line = 34”
Cut Envelope = 2” x 21” 8” x 8”
Max. Width = 2” x 21”
Max. Thickness = 8”
Arbor Rpm = 2100

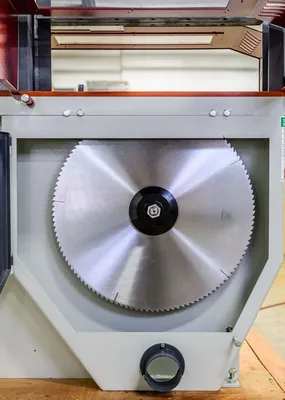

Blade Size = 24” Tungsten Carbide Tipped
No. of Teeth = 120 Tooth
Tooth Spacing = 5/8 In.
Blade Kerf = 4 mm
Dust Collection = (2) 4” @ 900 CFM
Dust Port Out = 4” Top 4” Bottom
Arbor Diameter = 1” Arbor
Cycles/Minute = 40 Cuts Per Minute
Hold Down Style = T Clamp
FLR Included = Filter, Lubricator, Regulator
Emergency Stop = Push Button
Safety Feature = Safety Interlock Switch
Guarding = Full Guard with Clear View
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable Fence
Fence Dims. = 2″ x 25”
Adjust. Stroke = 7-3/4” Adj. on Arbor Stroke
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 28-3/4” x 45”
Table Const. = Cast Iron
Decible Rating = 68 dB
Net Weight = 1285 Lbs.
Gross Weight = 1458 Lbs.
Machine Dims. = 31-3/4” x 45” x 56”
Packaging Dims = 36” x 51” x 61”
