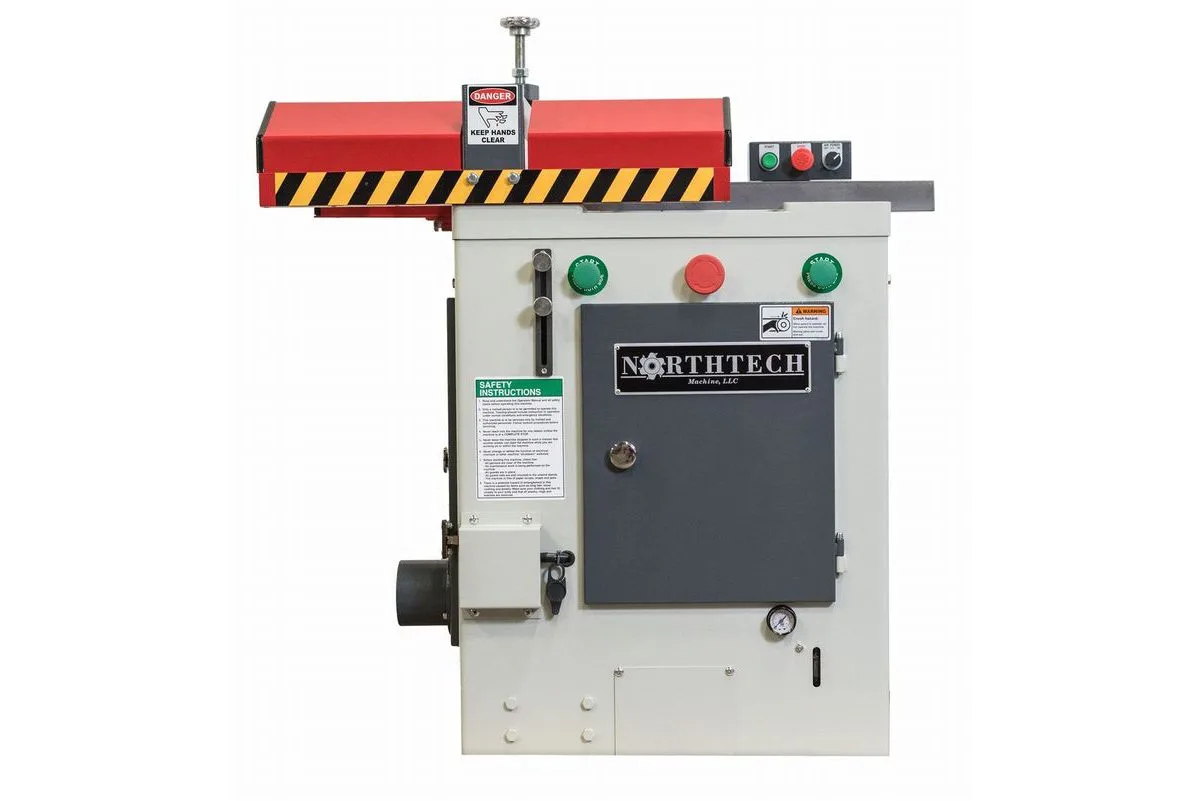

Northtech NT CS18LPBA‑1032 18″ 10 HP Upcut Saw With Dual Palm Buttons (Left‑Hand Cut) 230V

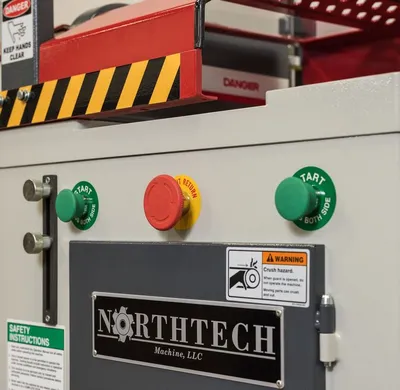

This innovative up-cut saw from Northtech quickly and safely cuts boards up to 13-1/2 inches wide or 4 inches high. The powerful 10 HP soft-start motor and 18″ diameter blade consistently produce clean and accurate results. This model is equipped with a double-palm button start for increased safety. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator precision and productivity.
*Be sure to ask us about Northtech’s new “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!

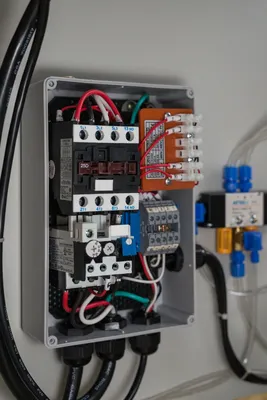

   10HP motor, 3PH  230V with 24V magnetic controls
   18” 120T Carbide tipped blade included
   1” Saw arbor diameter
   Cycle operation:  Pneumatic
   Table size:  26” x  27.25”
   Quick access in the front of the machine to adjust blade stroke.
   Dust requirements:  (1) 4″ dust port requiring 450 CFM at point of extraction
   Net weight:   730 lbs.
   Gross weight:   890 lbs.
   Packing dimensions:  (L) 33″ x (W) 33″ x (H) 46″
   (1) Toolbox and manual
   Warranty is one-year parts
   All machines are tested stateside prior to shipment providing trouble-free start-up.
   Max cutting capacity: 1” x 13-1/2”,  2″ x 12″, 3″ x 11″, 4″ x 10″
 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
 Custom infeed/outfeed rollers up to 40’
 18″ x 80T carbide-tipped blade
 18” x 100T carbide-tipped blade
 18” x 120T carbide-tipped blade
 (1) Gravity flip stop
 460V  3-phase power
 Safety interlock for blade access
 Rigid stop
Main Motor Hp. = 10 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 24 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Cut Envelope = 1” x 13” 2” x 12” 4” x
Min. Length = 14” from Blade to Gaurd Edge
Max. Width = 1” x 13”
Max. Thickness = 5”
Arbor Rpm = 3600 Rpm
Blade Size = 18” Tungsten Carbide-Tipped
No. of Teeth = 120 Tooth
Tooth Spacing = 15/32 In.
Blade Kerf = .135 In.
Dust Collection = 4” 450 CFM
Dust Port Out = 4” Bottom
Arbor Diameter = 1”
Cycles/Minute = 45 Cuts Per Minute
Hold Down Style = T Clamp

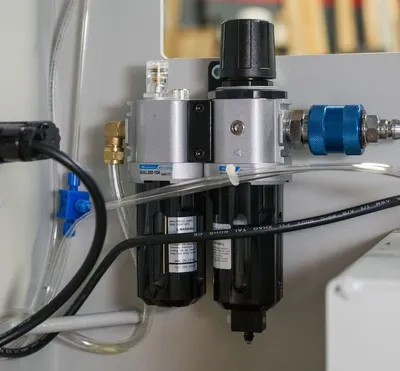

FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 480 nl/min

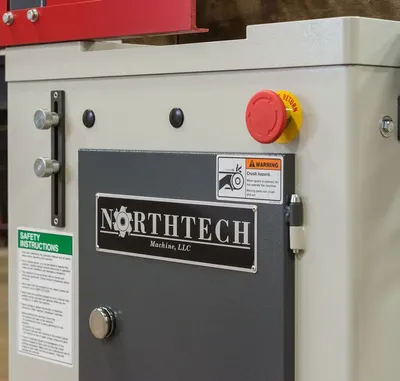

Emergency Stop = Push Button
Safety Feature = Safety Interlock Switch
Guarding = High Visibility Guarding
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable Fence
Fence Dims. = 2″ x 25”
Adjust. Stroke = 2-3/4” Adj. on Arbor Stroke
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 26” x 27-1/4”
Table Const. = Machined Steel
Decible Rating = 78 dB
Net Weight = 730 Lbs.
Gross Weight = 890 Lbs.
Machine Dims. = 26” x 27-1/4” x 49-1/2”
Packaging Dims = 40” x 48” x 55”
