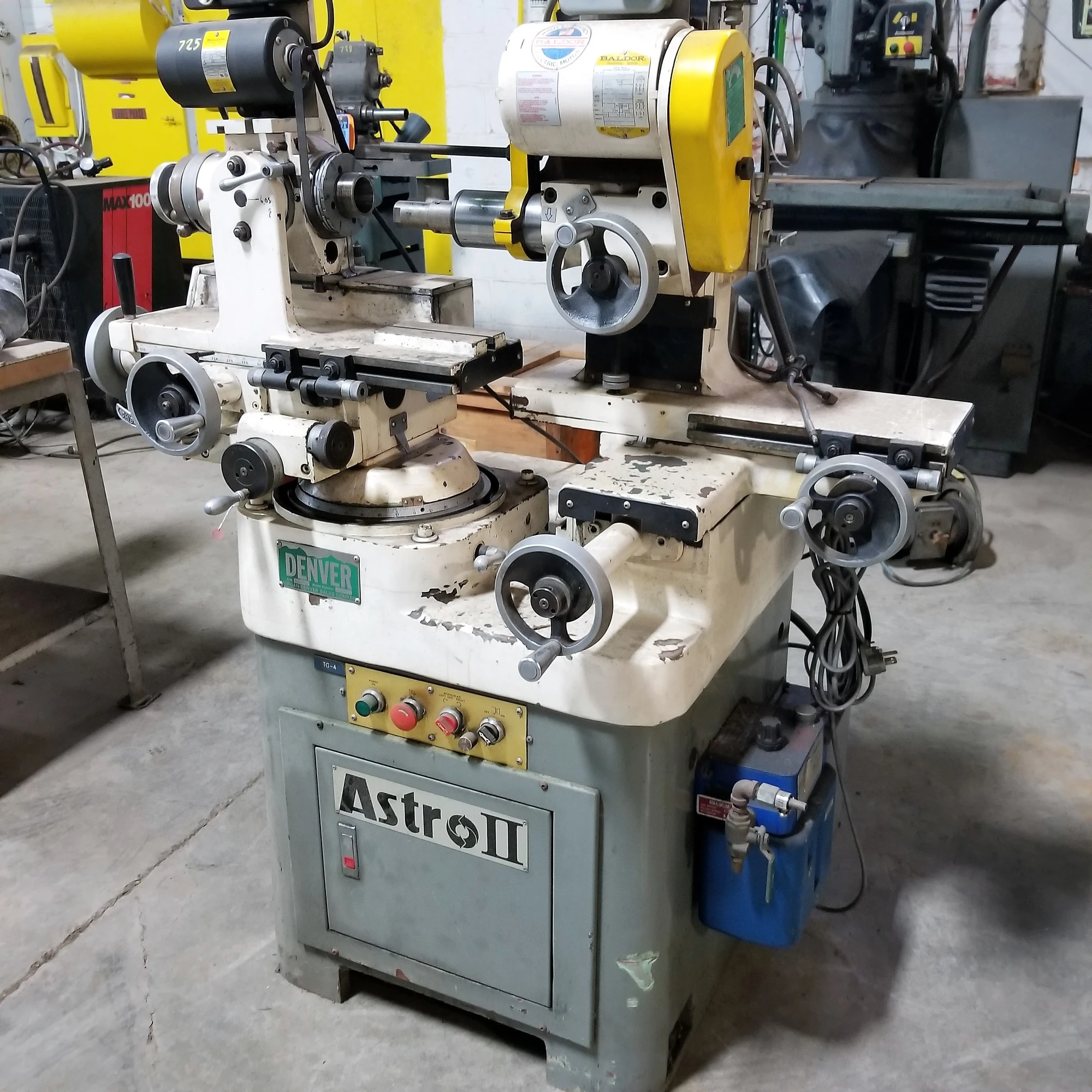

USED DENVER (MORGAN) ASTRO II MONOSET TYPE

(ASTRO II) ...
Swing Over Table............................. 12"
Dist. Between Tailstock & Workhead........... 15"
Work Head Spindle Tapers..................... 5C
Table Working Surface........................ 3-1/4" x 6"
Longitudinal Travel.......................... 9"
Swivel Angle................................. 50 Degree L & R
Table Graduation On End For Taper Grinding... 14 Degree L & R
Cross Movement Of Saddle..................... 9-1/2"
Vertical Movement Of Wheel Head.............. 11"
Work Head Swivels............................ 50 Degree L & R
Work Head Tilts.............................. 40 Degree Up & Down
Dist. Spindle Center - Table Surface......... 5"
Motor Size................................... 1/2 HP - 240/480V - 3 Phs
Weight....................................... To be Advised
Dimensions................................... To be Advised

Elevation Handle On Spindle Housing
Work Light
Coolant
(1) Shot Lube

SOME nice TOOLING SEE PICTURES!
