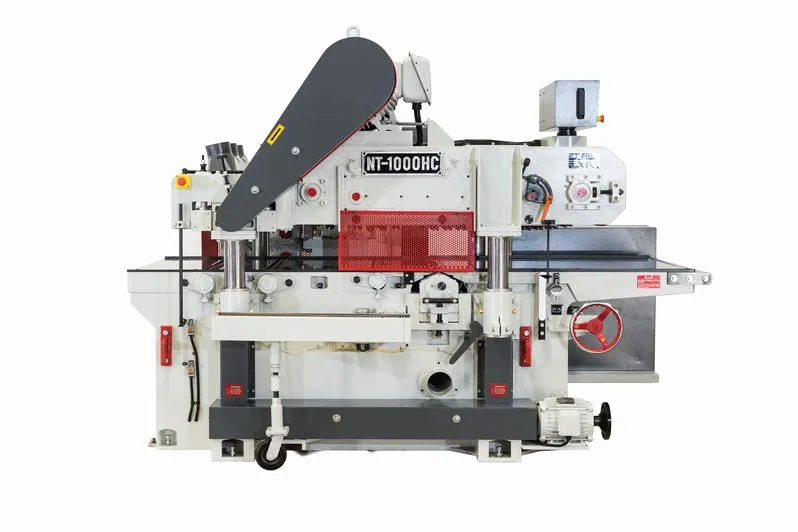

Northtech NT 1000HCHD-XL 75HP+60HP Double Surface Planer (w/ Helical Cutterheads)

Northtech NT 1000HCHD-XL Helical Head Double Surface Planer
This behemoth of a planer boasts a monstrous 75 HP on the top head paired with a 60 HP motor driving the bottom head, all well supported by the rugged 1″ thick cast and steel plate construction. A VFD-controlled 7.5 HP motor attached to the carpet spike system (with 1,900 hardened spikes!) steadily and securely feeds even your largest materials–up to 41″ (W) and 8″ (H)–through the dual 9-row helical insert cutter heads. Three (3) 5″ dust ports allow for quick removal of shavings, and the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness and speed settings.

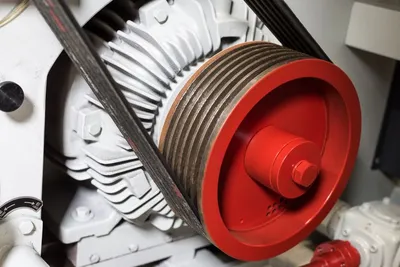

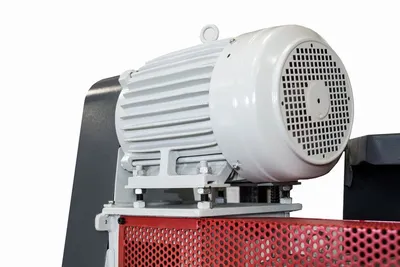

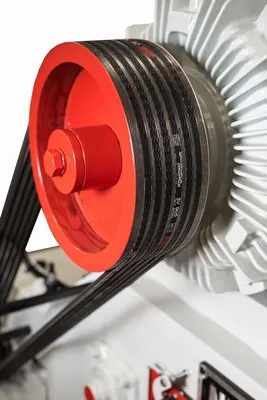

 75 HP Top, 60 HP Bottom

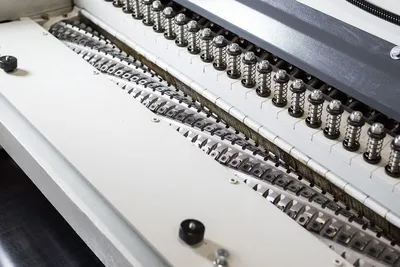

 Dual (9) Row Helical Cutter Head with 15 x 15 x 2.5mm inserts
 4925 RPM solid steel cutter heads dynamically balanced with Class 7 NSK bearings
 15” min working length
 1-1/2” – 41” working width
 3/8” – 8” working thickness

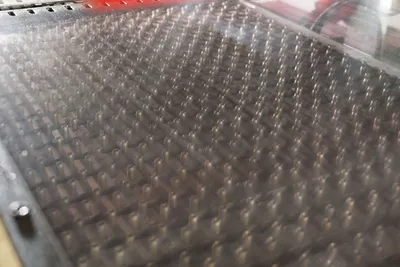

 Carpet feeding spike system with 1,900 hardened spikes
 7.5 HP motor, with 10 HP inverter controlled 15-55 FPM feed
 1000 Series have upgraded feed works, with top and bottom powered rollers on infeed and outfeed of the top cutter head
 144.5 Total machine HP
 2HP Elevation motor
 Inverter speed control

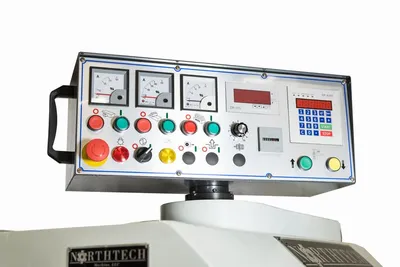

 Digital control panel with 3 amp meters
 Chrome bedplate (.014”) thick
 (3) 5” dust ports requiring 1362 CFM at points of extraction
 Automatic lubricating system with low level shut off

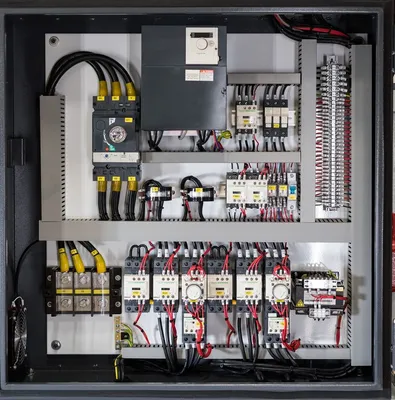

 UL/CE Certified electrical components
 Includes operator’s manual and parts book
 Machine gross / net weight: 15,600 lbs. 16,100 lbs.
 Machine dimensions: 112”(L) x 88”(W) x 83”(H)
 One year parts warranty
 All machines are tested at the factory prior to shipment providing trouble-free start-up.
Top Head Hp. = 75 Hp.
Bottom Head Hp. = 60 Hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 170 Amps
Feed Hp. = 7.5 Hp.
Feed System = Carpet Feed / Powered Rollers

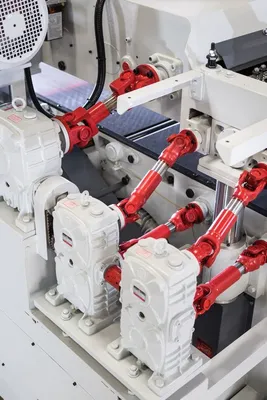

Drive System = Cardan Shaft Drive System
Feed Speed = 15 – 55 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 2 Hp.
Elevation Style = DP-626S Elevation Control

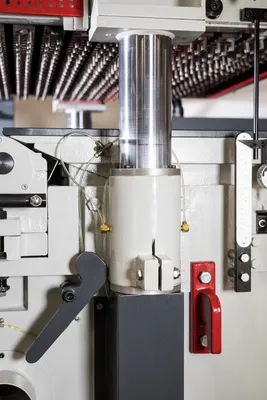

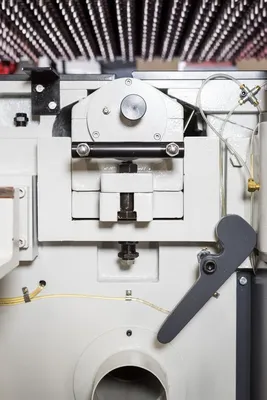

Elevation Sys. = (4) Post Jack Screw
Total Hp. = 144.5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Operator Panel = Fixed
Pass-Line = 34”
Min. Length = 15”
Min. Width = 1-1/2”
Max. Width = 39-1/2”
Min. Thickness = 0.415”
Max. Thickness = 8”
Cutter Head RPM = 4925 Rpm
Tooling = 15 x 15 x 2.5 mm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 5” x 39-3/4”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 9 Rows
No. of Inserts = 399 Inserts Per Head
Insert Size = 15 x 15 x 2.5 mm
No. of Heads = 2
Dust Collection = (3) 5” @ 1362 CFM
Dust Port Out = (3) 5” Outlets

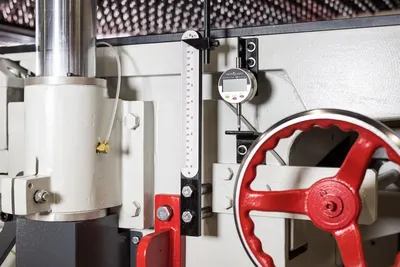

Digital Display = Elevation and Feed Speed
Powered Rollers = (2) Top (2) Bottom
Idle Rollers = (1) Top (1) Bottom
Pressure Shoes = 39-1/2” Pressure Shoe
No. of Spikes = 1900 Spikes
Rear E Stop = Push Button
Guarding = High Visibility Guarding
Oiler = Auto Digitally Controlled / Ma
Low Oil Warning = Low Oil Shut Off / Warning
Frame Const. = Cast/Steel Construction
Chrome Bed = .004” Chrome Plated Bed
Decible Rating = 80 dB
Net Weight = 15600 Lbs.
Gross Weight = 16100 Lbs.
Machine Dims. = 11” x 85” x 82”
Packaging Dims = 112” x 88” x 83”
