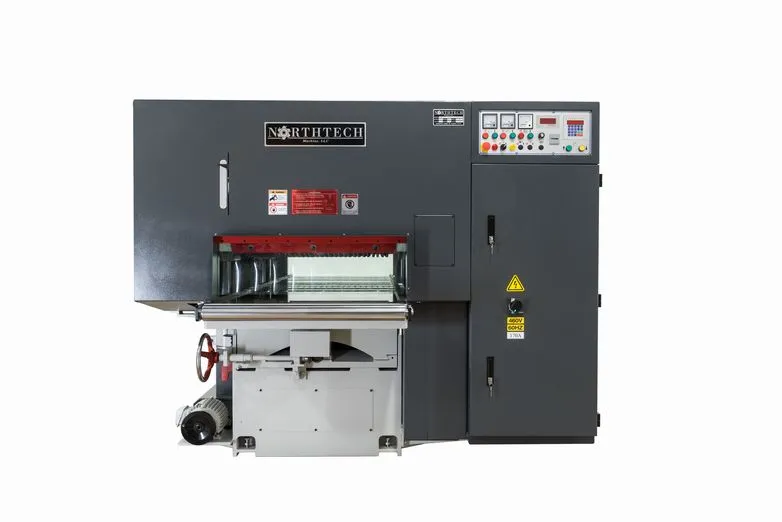

Northtech NT 820HC 50HP+50HP Double Surface Planer (w/ Helical Cutter Heads)

This powerhouse planer from Northtech boasts dual 50 HP motors. Each one drives a 6″ (diameter) helical insert cutter head that has been dynamically balanced to reduce noise and vibration, resulting in longer life and smoother finish. A VFD-controlled 10 HP motor governs the carpet spike feed system (with 1,500 hardened spikes!) to securely feed material up to 32-3/8” (W) and 8″ (H) through the machine. Four (4) 6″ dust ports ensure efficient removal of shavings, and the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness and speed settings.

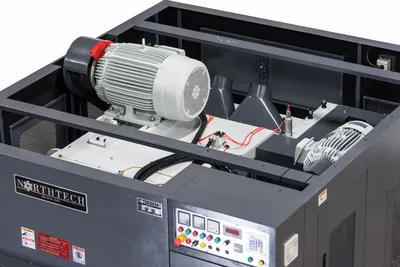

50 HP Top, 50 HP Bottom
Dual (8) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
5000 RPM solid steel cutterheads with Class 7 NSK bearings
Working width 820mm (32”)
13” min working length
Thickness range  (3/8” – 8”)
10HP + 15HP inverter feed motor
Elevation motor: 2HP

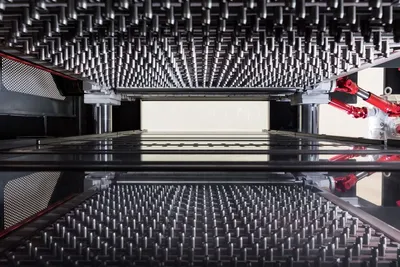

Carpet feeding spike system with 1500 spikes
Feed speed 30-80 FPM

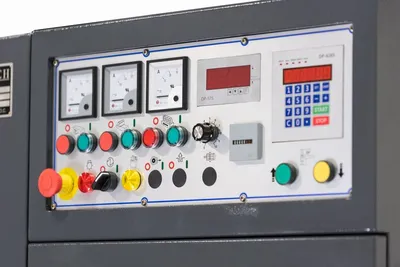

Digital control panel with 3 oversized inverter feed control amp meters
Chrome bedplate
Patented 4-column lifting system
Carpet feeding spike system

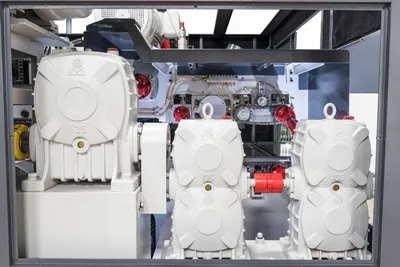

Cardan shaft drive system
80 FPM maximum feed speed
Amperage requirement at 161 Amps @ 460V; 322 Amps @ 230V
(4) 6” dust ports requiring 981 CFM @ each point of extraction
UL/CE Certified electrical components
Lubricating system
Includes operator’s manual and parts book
Machine dimensions: 115” L x 88” W x 70” H
Packing dimensions: 122”L x 90”W x 77”H
Machine gross / net weight: 15,433 lbs. / 16,535 lbs
One-year parts warranty
All machines are tested stateside before shipment providing trouble-free start-up.
Top Head Hp. = 50 Hp.
Bottom Head Hp. = 50 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 322/161 Amps
Feed Hp. = 10 Hp.
Feed System = Carpet Feed / Powered Rollers
Drive System = Cardan Shaft Drive System
Feed Speed = 27 – 82 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 2 Hp.
Elevation Style = DP-626S Elevation Control
Elevation Sys. = (4) Post Jack Screw
Total Hp. = 112 HP.

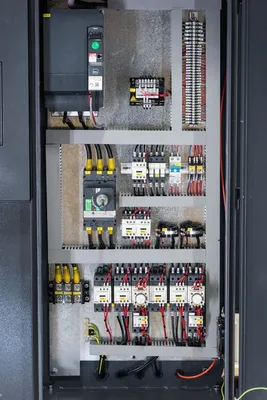

Electronics = UL Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Programmable = Elevation
Operator Panel = Fixed
Pass-Line = 34”
Min. Length = 12” 1st Hold Down to Kickback
Min. Width = 2″
Max. Width = 32-3/8”
Min. Thickness = .42”
Max. Thickness = 8”
Cutter Head RPM = 4500 Rpm
Tooling = 30 x 12 x 2.5 mm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 6” x 32-3/4”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 8 Rows
No. of Inserts = 188 Inserts
Insert Size = 30 x 12 x 2.5 mm
No. of Heads = 2
Dust Collection = (4) 6” @ 981 CFM Each
Digital Display = Elevation and Feed Speed
Powered Rollers = 3 Bottom 3 Top Powered Rollers
Idle Rollers = (4) Bed Rolls (1) Top
Hold Down Style = Chip Breakers/ Pressure Plate
No. of Spikes = 1500 Spikes
FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 3/8” Supply Line @ 90 Psi
Rear E Stop = Push Button
Guarding = Full Cabinet Enclosure
Oiler = (1) Auto (1) Manual Oiler
Low Oil Warning = Low Oil Shut-off
Frame Const. = Cast/Steel Construction
Chrome Bed = .004” Chrome Plated Bed
Slip Clutch = Clutch on Drive
Decible Rating = 75 dB
Net Weight = 15,433 Lbs.
Gross Weight = 16,535 Lbs.
Machine Dims. = 121” x 77” x 69”
Packaging Dims = 124” x 81” x 77”
