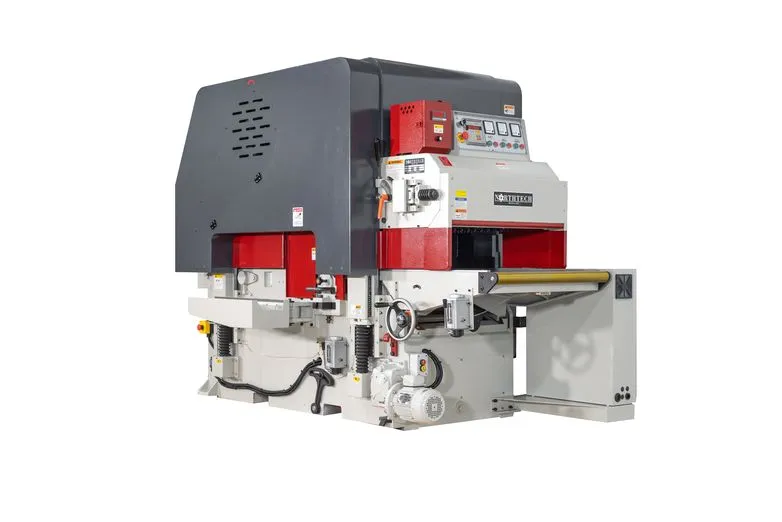

Northtech NT 760XL 40HP+30HP Double Surface Planer (w/ Helical Cutter Heads)

This double-surface planer from Northtech uses a 40 HP motor up top and a 30 HP motor underneath. Each one drives a helical insert cutter head that has been dynamically balanced to reduce noise and vibration, resulting in longer life and smoother finish. A VFD-controlled 5 HP motor governs the carpet spike feed system (with 1,350 hardened spikes!) to steadily feed material up to 29-15/16” (W) and 8″ (H) through the machine. Two (2) 8″ dust ports ensure efficient removal of shavings. The automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness and speed settings.

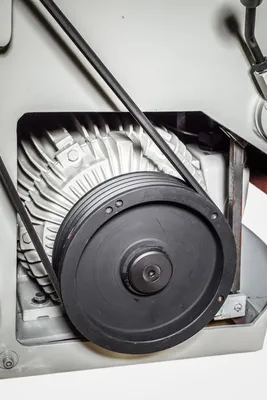

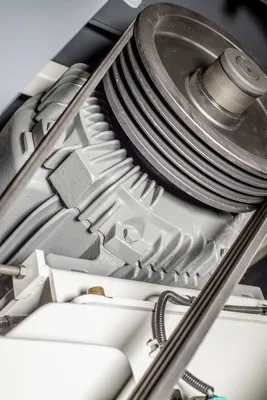

40 HP Top, 30 HP Bottom

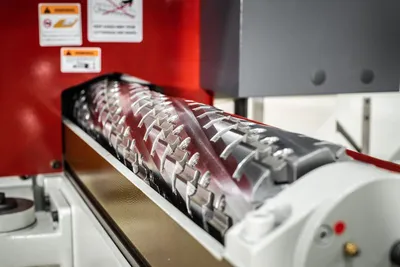

Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
Max working width 29-15/16”
12-1/2” min working length
Thickness range  (3/8” – 8”)
5HP + 7.5HP inverter feed motor
Elevation motor: 1HP

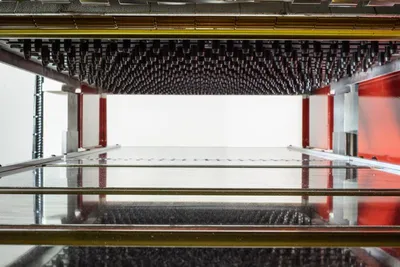

Carpet feeding spike system with 1350 spikes
Feed speed 25 – 70 FPM

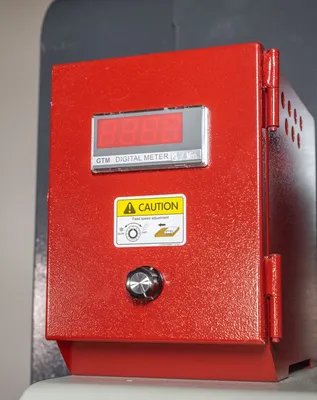

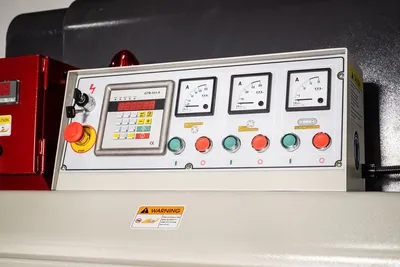

Digital control panel with 3 oversized inverter feed control amp meters
Carpet feeding spike system
70 FPM maximum feed speed
Amperage requirement at 95 Amps @ 460V; 190 Amps @ 230V
(2) 8” dust ports requiring 3488 Total CFM

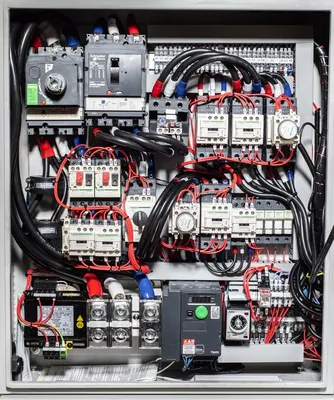

UL/CE Certified electrical components

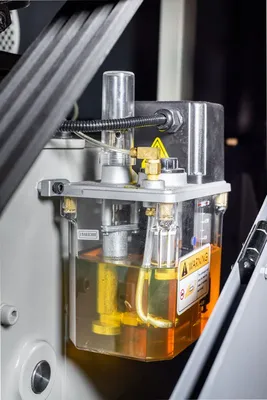

Lubricating system
Includes operator’s manual and parts book
Machine dimensions: 105”L x 59”W x 75”H
Packing dimensions: 110”L x 58”W x 71”H
Machine gross / net weight: 8,352 lbs. / 7,822 lbs
One-year parts warranty
All machines are tested stateside before shipment providing trouble-free start-up.
Top Head Hp. = 40 Hp.
Bottom Head Hp. = 30 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 190/95 Amps
Feed Hp. = 5 Hp.
Feed System = Carpet Feed / Powered Rollers

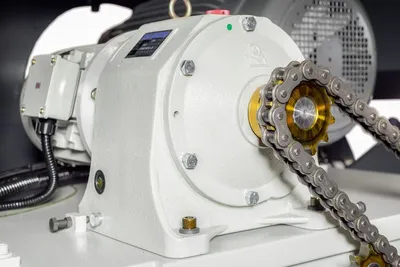

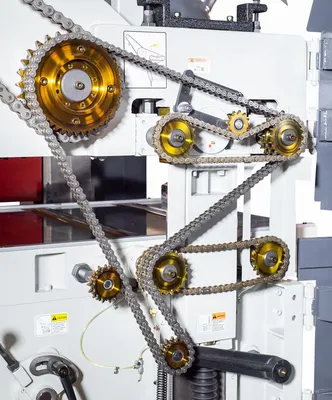

Drive System = Gearbox Chain Drive
Feed Speed = 25 – 70 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 1 Hp.
Elevation Style = GTM-525-A Controller
Elevation Sys. = (4) Post Jack Screw
Total Hp. = 76 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Programmable = Elevation
Operator Panel = Fixed
Pass-Line = 32”
Min. Length = 12-1/2”
Min. Width = 2″
Max. Width = 29-15/16”
Min. Thickness = .396”
Max. Thickness = 8”
Cutter Head RPM = 5750 Rpm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 5” x 30”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 114 Top 114 Bottom
Insert Size = 30 x 12 x 2.5 mm
No. of Heads = 2
Dust Collection = (2) 8” 3488 Total CFM
Digital Display = Elevation and Feed Speed
Powered Rollers = (2) Top (2) Bottom
Idle Rollers = (1) Top (1) Bottom
Pressure Shoes = (15) 2” Chip Breakers
Hold Down Style = Chip Breakers/ Pressure Plate
No. of Spikes = 1350 Spikes
Rear E Stop = Push Button
Guarding = Full Enclosure
Oiler = (1) Auto (1) Manual Oiler
Low Oil Warning = Low Oil Shut Off / Warning
Frame Const. = Cast Construction
Slip Clutch = Clutch on Chain Drive
Decible Rating = 77 dB
Net Weight = 7822 Lbs.
Gross Weight = 8352 Lbs.
Machine Dims. = 105” x 59” x 75”
Packaging Dims = 110” x 58” x 71”
