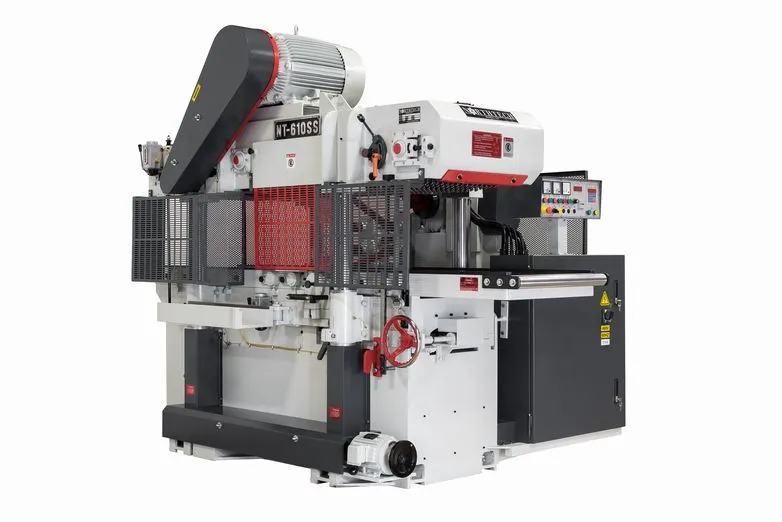

Northtech NT 610SS Supermax 16 50HP+40HP Double Surface Planer (w/ Helical Cutter Heads)

This double-surface planer from Northtech uses a 50 HP motor up top and a 40 HP motor underneath. Each one drives a 6″ diameter helical insert cutter head that has been dynamically balanced to reduce noise and vibration, resulting in longer life and smoother finish. Material up to 24” (W) by 16″ (H) is precisely pulled through the machine by a VFD-controlled 10 HP motor driving a carpet spike feed system with 1,500 hardened spikes. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness and speed settings.

50 HP Top, 40 HP Bottom
Dual (8) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
Max working width 24″
12” min working length
Thickness range  (5/8” – 16”)
10HP + 15HP inverter feed motor
Elevation motor: 2HP

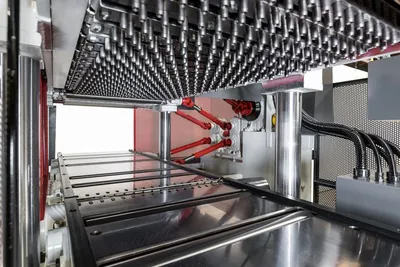

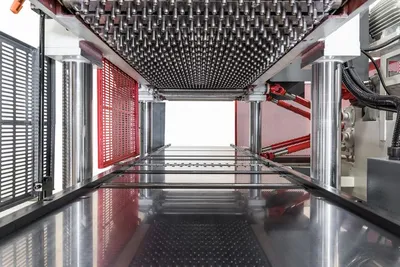

Carpet feeding spike system with 1500 spikes
Feed speed 38 – 115 FPM
Max output part: 16” x 24”
Minimum part thickness 15mm (5/8”)
Dual (8) Row Helical Cutterhead with 30 x 12 x 2.5mm inserts
10HP Carden Shaft Feed with 100-100-80 gearboxes and 15HP VFD
4-column lifting system
1,500 pc. carpet feeding spike system

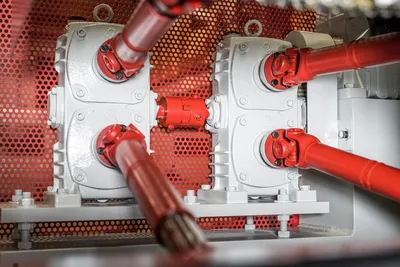

Floor-mounted Cardan shaft drive system
115 FPM maximum feed speed
Chrome bedplate
230V / 460V: 294 / 147

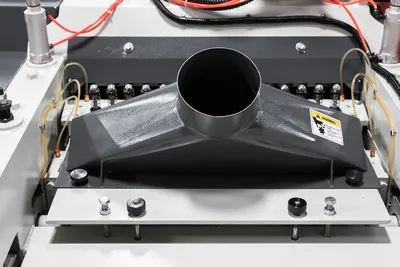

Dust collection requirements: (2) 6” ports, requiring 1,000 CFM at points of extraction
Includes operator’s manual and parts book
Machine dimensions: 115” L x 88” W x 86” H
Machine gross / net weight: 14,960 / 16,060 lbs
One-year parts warranty
All machines are tested at the factory before shipment providing trouble-free start-up.
Top Head Hp. = 50 Hp.
Bottom Head Hp. = 40 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 294/147 Amps
Feed Hp. = 10 Hp.
Feed System = Carpet Feed / Powered Rollers
Drive System = Cardan Shaft Drive System
Feed Speed = 38 – 115 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 2 Hp.

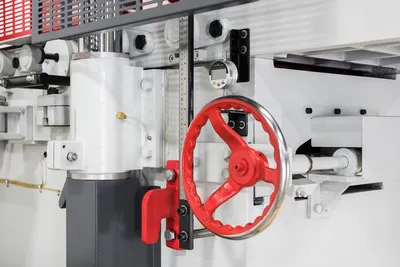

Elevation Style = DP-626S Elevation Control
Elevation Sys. = (4) Post Jack Screw
Total Hp. = 102 Hp.

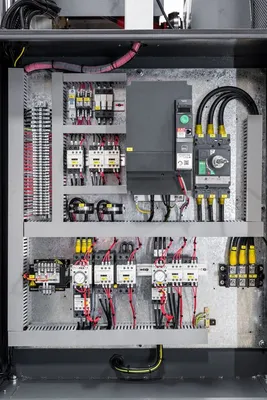

Electronics = UL Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Programmable = Elevation
Operator Panel = Fixed
Pass-Line = 41-1/2”
Min. Length = 12”
Min. Width = 2″
Max. Width = 24”
Min. Thickness = 5/8”
Max. Thickness = 16”
Cutter Head RPM = 4500 Rpm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 6” x 24”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 8 Rows
No. of Inserts = 140 Top 140 Bottom
Insert Size = 30 x 12 x 1.5 mm
No. of Heads = 2
Dust Collection = (2) 6” @ 1962 CFM

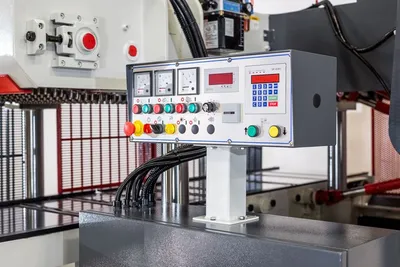

Digital Display = Elevation and Feed Speed
Powered Rollers = 3 Bottom 3 Top Powered Rollers
Idle Rollers = (4) Idle Bed Rollers
Pressure Shoes = (15) 1-1/2” Shoes
No. of Spikes = 1500 Spikes
FLR Included = Filter, Lubricator, Regulator
Recommended CFM = 3/8” Supply Line @ 90 Psi
Rear E Stop = Push Button
Guarding = Full Cabinet Enclosure

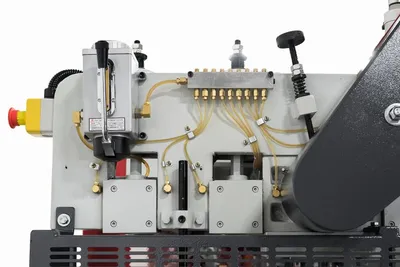

Oiler = (1) Auto (1) Manual Oiler
Low Oil Warning = Low Oil Shut Off / Warning
Frame Const. = Cast/Steel Construction
Chrome Bed = .004” Chrome Plated Bed
Slip Clutch = Clutch on Drive
Decible Rating = 80 dB
Net Weight = 14960 Lbs.
Gross Weight = 16060 Lbs.
Machine Dims. = 88” x 115” x 86”
Packaging Dims = 87” x 122” x 93”
