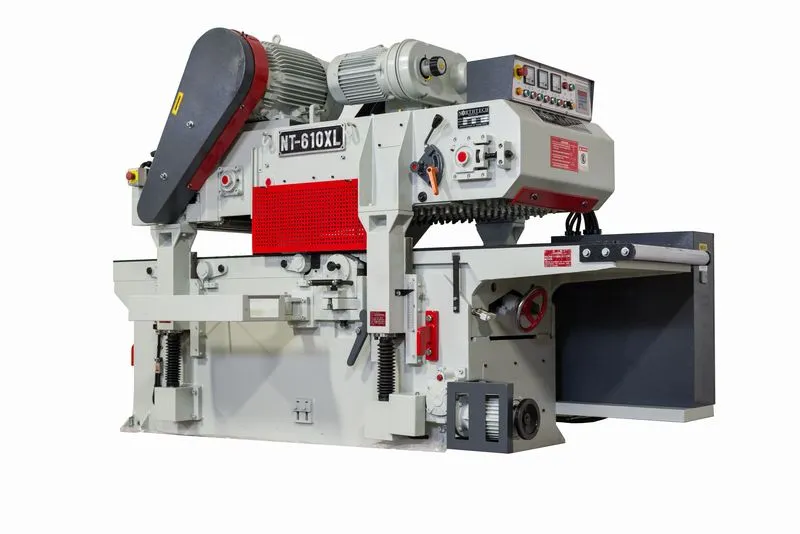

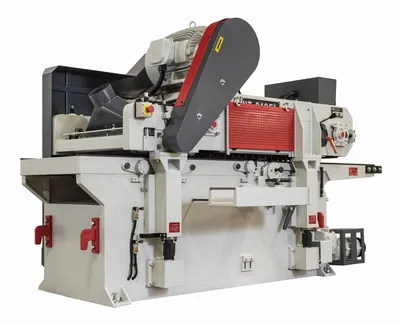

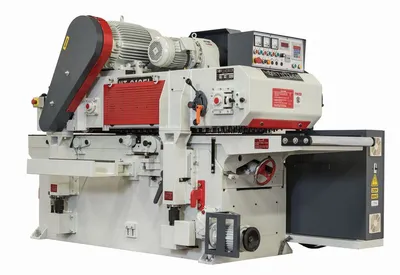

Northtech NT-610XL Heavy Duty Chain Drive 30HP+25HP Double Surface Planer (w/ Helical Cutter Heads)

This double-surface planer from Northtech uses a 30 HP motor on the top cutter and a 25 HP motor on the bottom. Both 5-1/4″ diameter helical insert cutter heads have been dynamically balanced to reduce noise and vibration, resulting in longer life and smoother finish. Material up to 24” (W) by 6-1/2” (H) is precisely pulled through the machine by a 5 HP motor-driven carpet spike feed system with CVT adjustable drive speed. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness settings.

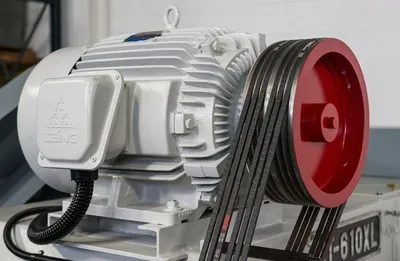

  30HP Top, 25HP Bottom

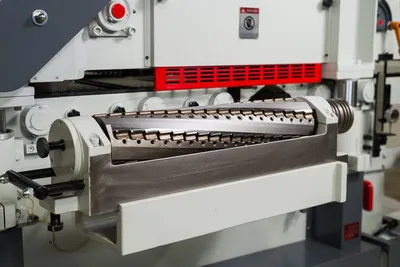

  Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
  5000 RPM solid steel cutter heads with Class 7 NSK bearings
  Cutterhead decibel rating of 75 dB or less
  Working thickness 10 – 155mm (3/8” – 6-1/2”)
  15” min working length
  24” maximum width
  5HP feed motor
  Carpet feeding spike system with 1100 spikes
  Feed speed 25 – 95 ft/min
  Mechanical variable speed

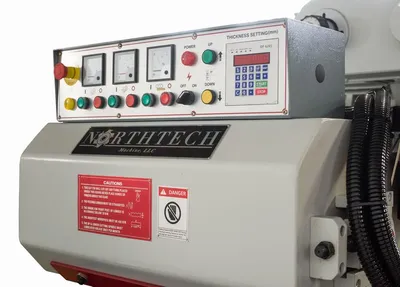

  Digital control panel with 3 amp meters
  Chrome bedplate  .01mm  (.004”) thick
  Amperage requirement:  230V @ 200AMP, 460V @ 100AMP
  (2) 6” dust ports requiring 1000 CFM @ each point of extraction
  Automatic lubricating system with low level shut off

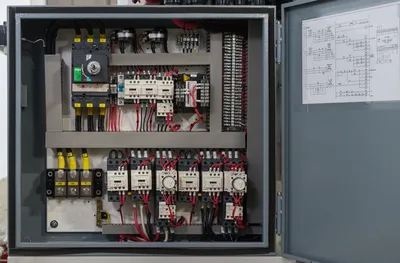

  UL/CE Certified electrical components
  Includes operator’s manual and parts book
  Machine dimensions:  112” L x 46” W x 74” H
  Packing dimensions:  117”L x 52”W x 78”H
  Machine gross / net weight:  7,680 lbs. / 8,300 lbs
  One-year parts warranty
  All machines are tested stateside before shipment providing trouble-free start-up
Top Head Hp. = 30 Hp.
Bottom Head Hp. = 25 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 175/87.5 Amps
Feed Hp. = 5 Hp.
Feed System = Carpet Feed / Powered Rollers

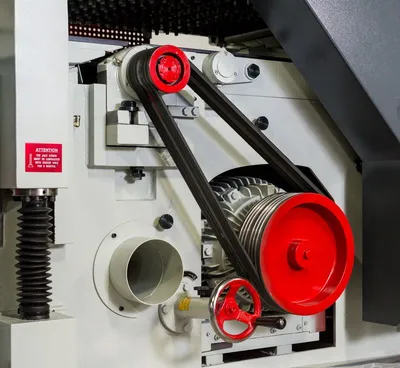

Drive System = Chain with Slip Clutch
Feed Speed = 25 – 95 FPM
Variable Speed = CVT Adjustable Drive
Elevation Hp. = 1 Hp.
Elevation Style = DP-626S Elevation Control
Elevation Sys. = (4) Gibbed Dovetail Slideways
Total Hp. = 61 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Min. Length = 15”
Min. Width = 1.5”
Max. Width = 24”
Min. Thickness = 3/8”
Max. Thickness = 6-1/2”
Cutter Head RPM = 5100 Rpm
Tooling = 30 x 12 x 2.5 mm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 5-1/4” x 25”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 105 Inserts
Insert Size = 30 x 12 x 2.5 mm
No. of Heads = 2
Dust Collection = (2) 6” @ 1962 CFM
Dust Port Out = (2) 6” Ports
Digital Display = Elevation
Powered Rollers = (4) Powered Rollers
Idle Rollers = (1) Idle Roller
Hold Down Style = Chip Breakers/ Pressure Plate
No. of Spikes = 1100 Spikes
Rear E Stop = Push Button
Guarding = High Visibility Guarding
Oiler = Auto Oiler
Low Oil Warning = Low Oil Shut Off / Warning
Frame Const. = 1/2” Steel/Cast Iron Construc
Chrome Bed = .004” Chrome Plated Bed
Decible Rating = 80 dB
Machine Dims. = 112” x 46” x 74”
Packaging Dims = 116” x 51” x 78”
