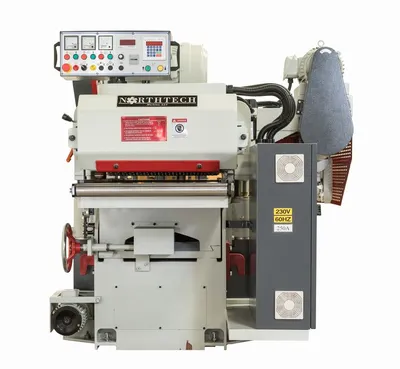

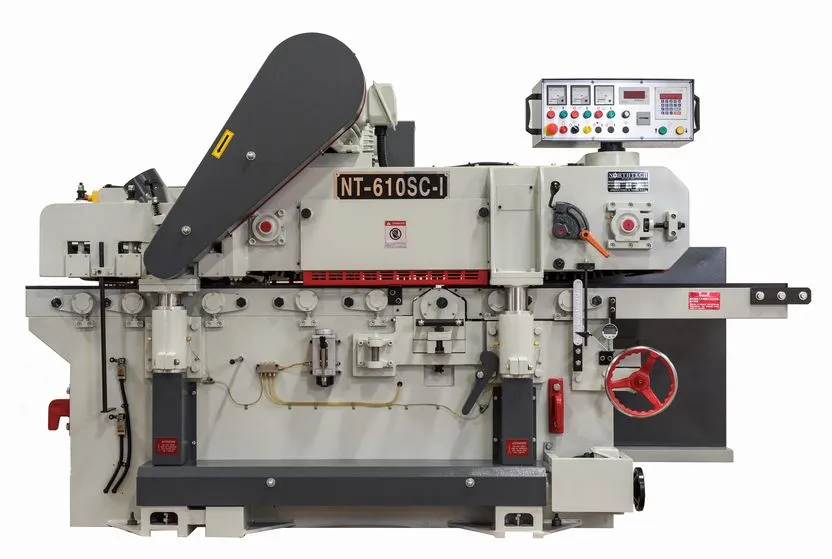

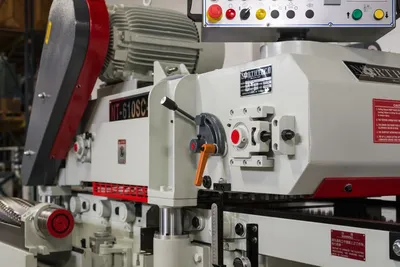

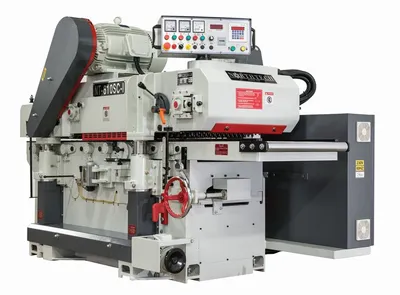

Northtech NT 610SC-I 40HP+30HP Double Surface Planer (w/ Helical Cutter Heads)

This double-surface planer from Northtech uses a 40 HP motor on the top cutter and a 30 HP motor on the bottom cutter. Both 5-1/2″ diameter helical insert cutter heads have been dynamically balanced to reduce noise and vibration, resulting in longer life and smoother finish. Material up to 24” (W) by 7-3/4” (H) is precisely pulled through the machine by a VFD-controlled 5 HP motor driving a carpet spike feed system with 1,500 hardened spikes. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness and speed settings.

40 HP Top, 30 HP Bottom
Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
Max working width 24”
14” min working length
Thickness range  (5/16″ – 7-3/4”)
5HP + 7.5HP inverter feed motor
Elevation motor: 1HP
Carpet feeding spike system with 1500 spikes
Feed speed 30 – 90 FPM
Dual (6) Row Helical Cutterhead with 30 x 12 x 2.5mm inserts
Patented 4-column lifting system •  Carpet feeding spike system
Cardan shaft drive system
100 FPM maximum feed speed •  Chrome bedplate
Amperage requirement at 230 / 460:  247 / 124
(2) 6” dust ports
Dust collection requirements:  1,000 CFM @ points of extraction
Includes operator’s manual and parts book
Machine dimensions:  108” L x 67” W x 73” H
Machine gross / net weight:  9,700 / 9,259 lbs
One-year parts warranty
All machines are tested stateside before shipment providing trouble-free start-up.
Top Head Hp. = 40 Hp.
Bottom Head Hp. = 30 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 218/109 Amps
Feed Hp. = 5 Hp.
Feed System = Carpet Feed / Powered Rollers

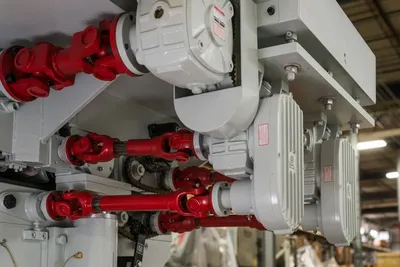

Drive System = Cardan Shaft Drive System
Feed Speed = 30 – 90 FPM
Variable Speed = 7.5 Hp. VFD
Elevation Hp. = 1 Hp.
Elevation Style = DP-626S Elevation Control
Elevation Sys. = (4) 3-1/4” Geared Lifting Columns
Total HP. = 76 HP.

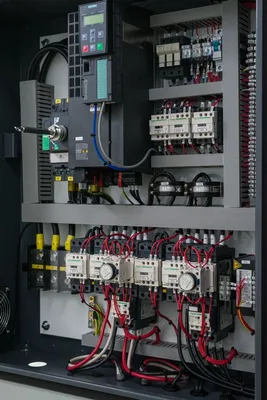

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt

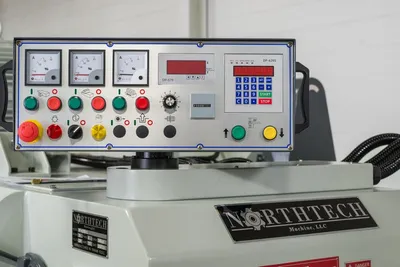

Operator Panel = Adjustable Operator Panel
Min. Length = 14”
Min. Width = 2″
Max. Width = 24”
Min. Thickness = .315”
Max. Thickness = 7-3/4”
Cutter Head RPM = 5100 Rpm

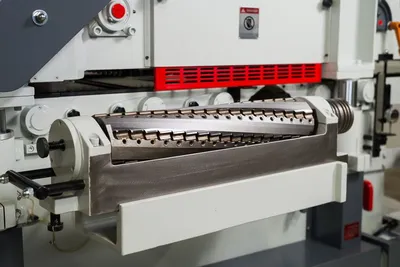

Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 5-1/2” x 24”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 105 Inserts
Insert Size = 30 x 12 x 2.5 mm
Dust Collection = (2) 6” @ 1962 CFM
Dust Port Out = 6” Top 6” Bottom
Powered Rollers = 3 Top 3 Bottom Powered Roller
Idle Rollers = (4) Idle Bed Rollers
Hold Down Style = Chip Breakers/ Pressure Plate
No. of Spikes = 1500 Spikes
Rear E Stop = Push Button
Guarding = High Visibility Guarding

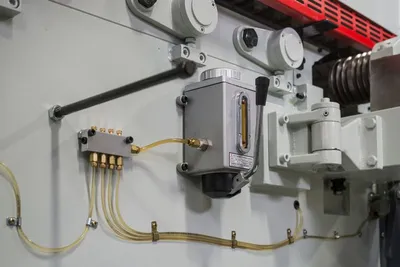

Oiler = Auto Digitally Controlled / Ma
Low Oil Warning = Low Oil Shut Off / Warning
Frame Const. = 1/2” Steel/Cast Iron Construc
Chrome Bed = .004” Chrome Plated Bed
Decible Rating = 80 dB
Net Weight = 9259 Lbs.
Gross Weight = 9700 Lbs.
Machine Dims. = 110” x 67” x 73”
Packaging Dims = 116” x 76” x 78”
