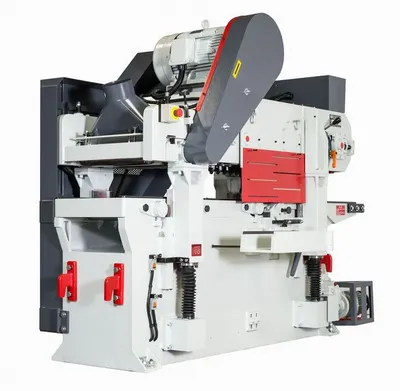

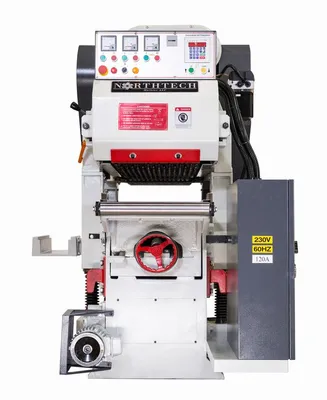

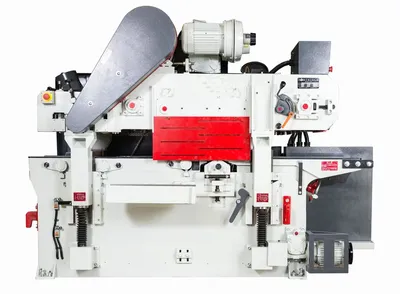

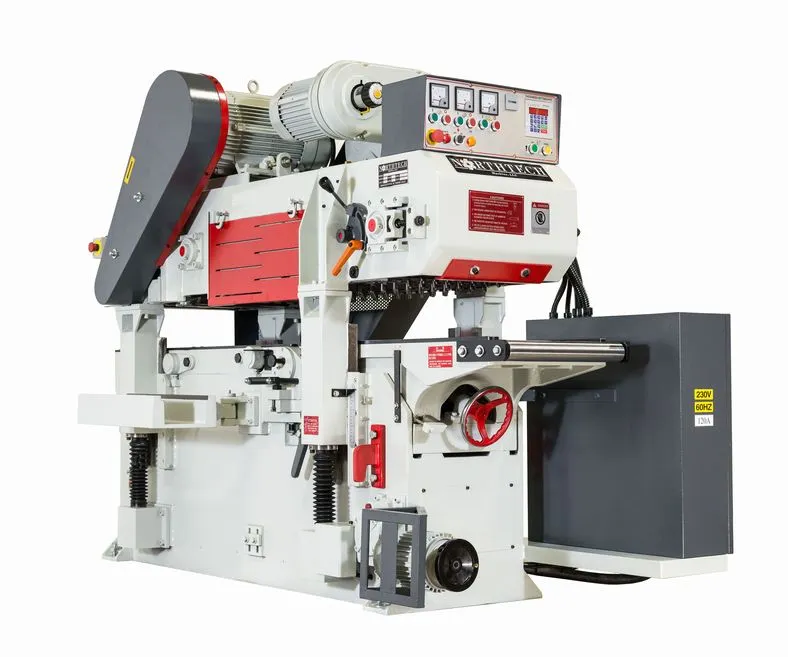

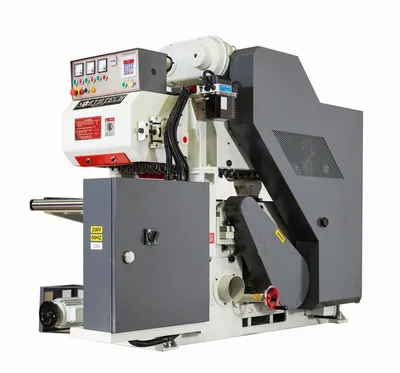

Northtech NT 400XL Heavy Duty Chain Drive 20HP+15HP Double Surface Planer (w/ Helical Cutter Heads)

This double-surface planer from Northtech utilizes a 20 HP motor up top and a 15 HP motor below, each driving a 5″ diameter helical insert cutter heads that have been dynamically balanced to reduce noise and vibration to provide longer life and a smoother finish. Material up to 16” (W) by 6-1/2” (H) is efficiently pulled through the machine by a 2 HP motor-driven carpet spike feed system with CVT adjustable drive speed. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness settings.

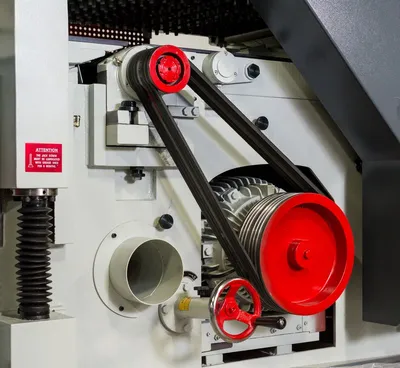

20HP Top, 15HP Bottom
Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm
inserts
5100RPM solid steel cutterheads with Class 7 NSK bearings
Working thickness 10 – 155mm (3/8” – 6-1/2”)
13” min working length
400mm (16”) maximum width
2HP feed motor
Carpet feeding spike system with 644 spikes
Feed speed 25-85 FPM
1HP elevation motor
Mechanical variable speed

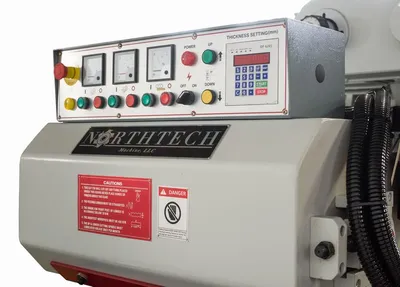

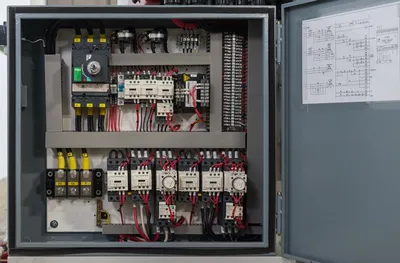

Digital control panel with 3 amp meters
Chrome bedplate .004’’ thick
Amperage requirement: 230V/110 AMPS, 460V/55 AMPS
(2) 6” dust ports requiring 981 CFM @ each point of extraction
Lubricating system included
UL/CE Certified electrical components
Includes operator’s manual and parts book
Net weight: 5,820 lbs.
Gross weight: 6,000 lbs.
Machine dimensions: L99” x W36” x H70”
Packaging dimensions: L99” x W46” x H77”
One-year parts warranty
All machines are tested at our corporate headquarters in Indiana before shipment providing trouble-free start-up.
Top Head Hp. = 20 Hp.
Bottom Head Hp. = 15 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 110/55 Amps
Feed Hp. = 2 Hp.
Feed System = Carpet Feed / Powered Rollers

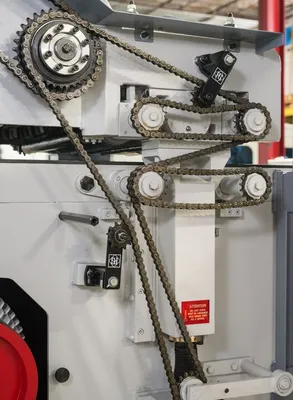

Drive System = Chain Drive
Feed Speed = 25 – 85 FPM
Variable Speed = CVT Adjustable Drive
Elevation Hp. = 1 Hp.
Elevation Style = DP-626S Elevation Control
Elevation Sys. = Jack Screw / Gib System
Total Hp. = 38 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Operator Panel = Fixed
Pass-Line = 32”
Min. Length = 13”
Min. Width = 1-1/2”
Max. Width = 16”
Min. Thickness = 3/8”
Max. Thickness = 6-1/2”
Cutter Head RPM = 5200 RPM
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 5” x 16”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 66 Inserts Per Head
Insert Size = 30 x 12 x 2.5 mm
Dust Collection = (2) 6” @ 1962 CFM
Digital Display = Elevation
Powered Rollers = (2) Top (2) Bottom
Idle Rollers = (1) Top (1) Bottom
Hold Down Style = Chip Breakers/ Pressure Plate
No. of Spikes = 644 Spikes
Oiler = Auto Oiler
Low Oil Warning = Low Oil Shut Off / Warning
Frame Const. = Cast/Steel Construction
Chrome Bed = .004” Chrome Plated Bed
Slip Clutch = Clutch on Chain Drive
Decible Rating = 79 dB
Net Weight = 5820 Lbs.
Gross Weight = 6000 Lbs.
Machine Dims. = 99” x 39” x 70”
Packaging Dims = 99” x 46” x 77”
