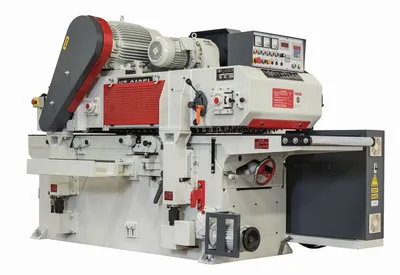

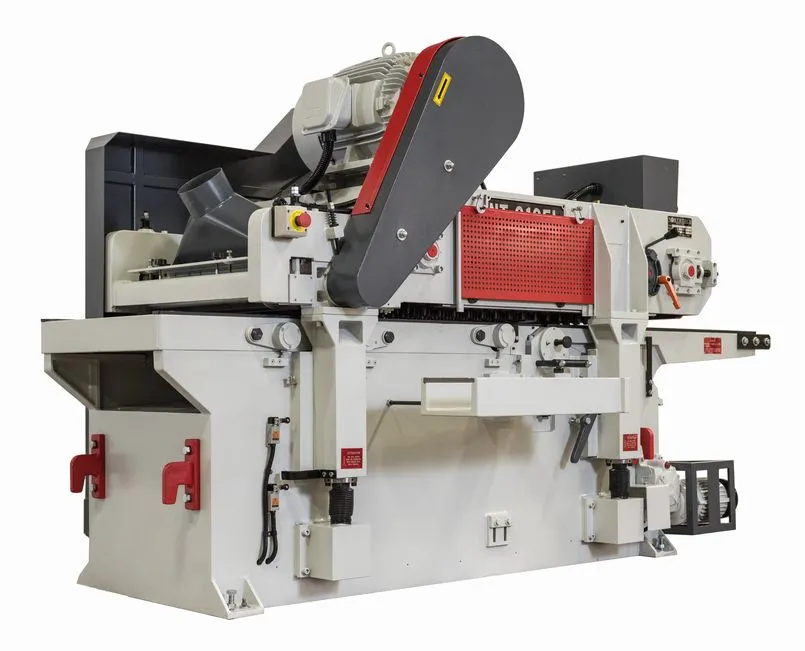

Northtech NT-610EL Heavy Duty 25HP+25HP Double Surface Planer (w/ Helical Cutter Heads)

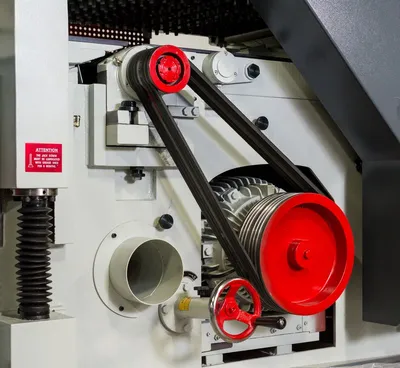

This double-surface planer from Northtech uses dual 25 HP motors, each driving a 5-1/4″ diameter helical insert cutter heads that have been dynamically balanced to reduce noise and vibration to provide longer life and a smoother finish. Material up to 24” (W) by 6-1/2” (H) is precisely pulled through the machine by a 5 HP motor-driven carpet spike feed system with CVT adjustable drive speed. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness settings.

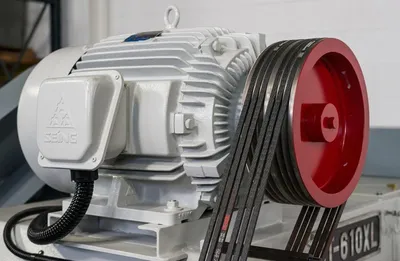

25 HP Top, 25 HP Bottom

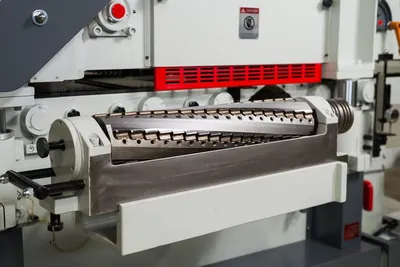

Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
Max working width 24”
15” min working length
Thickness range  (3/8” – 6-1/2”)
5HP feed motor
Elevation motor: 1HP
Carpet feeding spike system with 1100 spikes
Feed speed 25 – 95FPM
Dual (6) Row Helical Cutterhead with 15 x 15 x 2.5 mm inserts
5100 RPM Cutterheads
Working thickness 3/8” – 6-1/2”
15” min working length
Mechanical variable speed

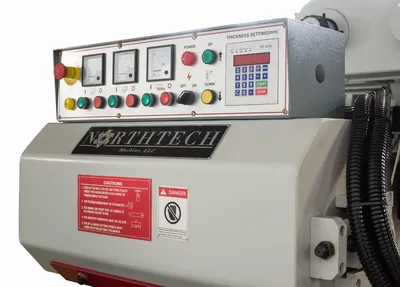

Digital control panel with 3 amp readouts
1100 Spike carpet feed
Feed speed 25-95 ft/min
Chrome bedplate .01mm .0039”
Amperage requirement at 230 / 460: 162 / 81
(2) 6” dust ports
An automatic lubricating system with low level shut off

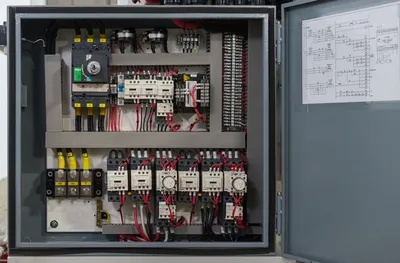

UL/CE Certified electrical components
Includes operator’s manual and parts book
Dust collection requirements: 1,000 CFM @ each point of extraction
Machine dimensions:  112” x 46” x 71”
Packing dimensions: 116” x 51” x 78”
Machine gross / net weight: 7,276 lbs. / 8,158 lbs
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up
Top Head Hp. = 25 Hp.
Bottom Head Hp. = 25 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 162/81 Amps
Feed Hp. = 5 Hp.
Feed System = Carpet Feed / Powered Rollers
Drive System = Chain with Slip Clutch
Feed Speed = 25 – 95 FPM
Variable Speed = CVT Adjustable Drive
Elevation Hp. = 1 Hp.
Elevation Style = DP-626S Elevation Control
Elevation Sys. = (4) Post Jack Screw
Total Hp. = 56 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Min. Length = 15”
Min. Width = 1.5”
Max. Width = 24”
Min. Thickness = 3/8”
Cutter Head RPM = 5100 Rpm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 5-1/4” x 25”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 180 Inserts
Insert Size = 15 x 15 x 2.5 mm
No. of Heads = 2
Dust Collection = 981 CFM @ Extraction Point
Dust Port Out = (2) 6” Ports
Digital Display = Elevation
Powered Rollers = (4) Powered Rollers
Idle Rollers = (1) Top (1) Bottom
Hold Down Style = Chip Breakers/ Pressure Plate
No. of Spikes = 1100 Spikes
Rear E Stop = Push Button
Guarding = High Visibility Guarding
Oiler = Auto Oiler
Low Oil Warning = Low Oil Shut Off / Warning
Frame Const. = 1/2” Steel/Cast Iron Construc
Chrome Bed = .004” Chrome Plated Bed
Decible Rating = 80 dB
Net Weight = 8158 Lbs.
Gross Weight = 7,276 Lbs.
Machine Dims. = 112” x 46” x 74”
Packaging Dims = 116” x 51” x 78”
