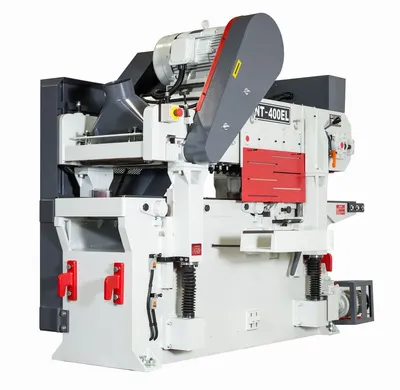

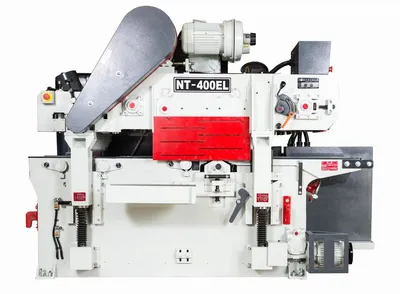

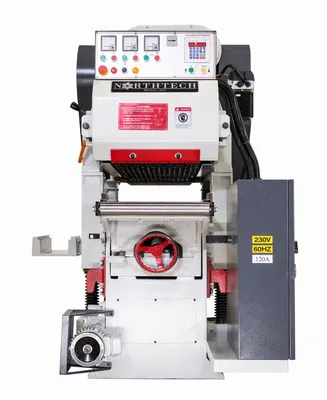

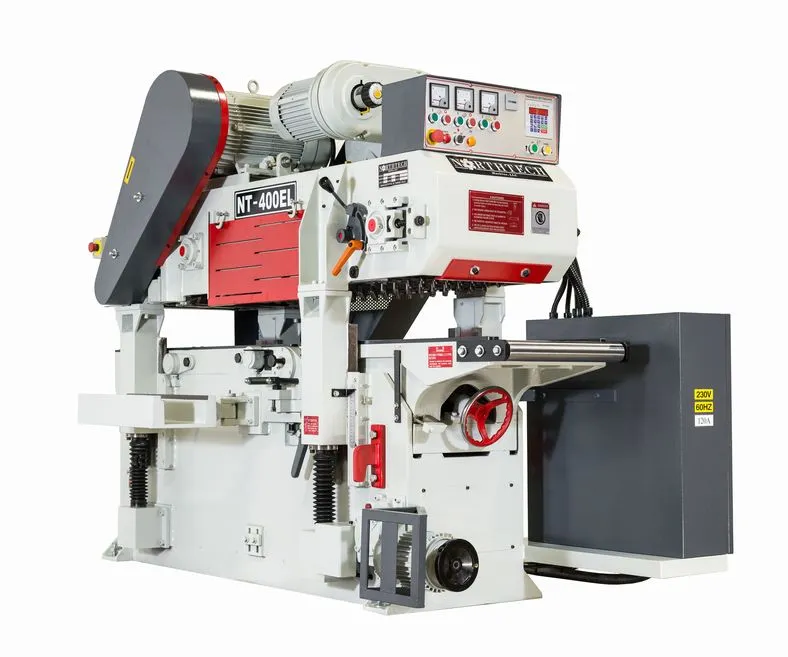

Northtech NT 400EL Heavy Duty Chain Drive 15HP+15HP Double Surface Planer (w/ Helical Cutter Heads)

This double-surface planer from Northtech features dual 15 HP motors, each driving a 5″ diameter helical insert cutter heads that have been dynamically balanced to reduce noise and vibration to provide longer life and a smoother finish. Material up to 16” (W) by 6-1/2” (H) is efficiently pulled through the machine by a 3 HP motor-driven carpet spike feed system with CVT adjustable drive speed. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness settings.

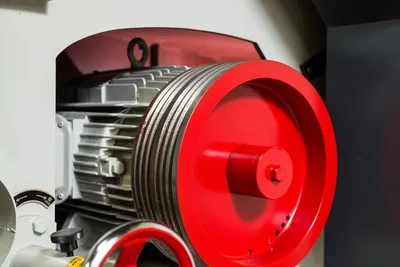

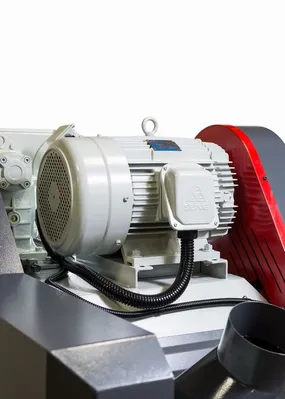

15HP Top, 15HP Bottom

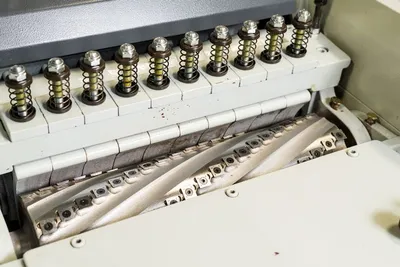

Dual (6) Row Helical Cutterheads with four-sided 15 x 15 x 2.5mm
inserts
5175 RPM solid steel cutterheads with Class 7 NSK bearings
Operating decibel rating of 79 dB
Working thickness  (3/8” – 6-1/2”)
13” min working length
16” maximum width
3HP feed motor
Carpet feeding spike system with 644 spikes
Feed speed 25-85 ft/min
1HP elevation motor
Mechanical variable speed

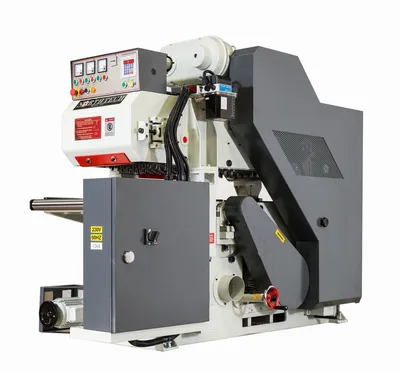

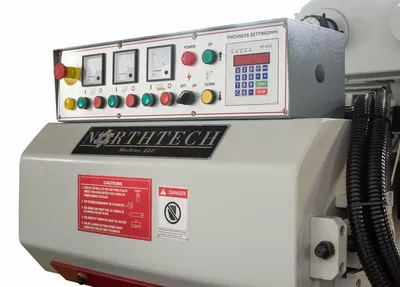

Digital control panel with 3 amp meters
Chrome bedplate .01mm (.004”) thick
Amperage requirement: 230V / 115 AMPS | 460V / 57.5 AMPS
(2) 6” dust ports requiring 981 CFM @ each point of extraction
Automatic lubricating system with low level shut off
UL/CE Certified electrical components
Includes operator’s manual and parts book
Machine dimensions: L98” x W50” x H70”
Machine net weight: 5,990lbs
One-year parts warranty
All machines are tested stateside before shipment providing trouble-free start-up.
Top Head Hp. = 15 Hp.
Bottom Head Hp. = 15 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 115/57.5 Amps
Feed Hp. = 3 Hp.
Feed System = Carpet Feed / Powered Rollers

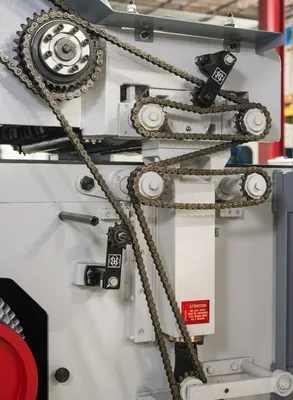

Drive System = Chain Drive
Feed Speed = 25 – 85 FPM
Variable Speed = CVT Adjustable Drive
Elevation Hp. = 1 Hp.
Elevation Style = DP-626S Elevation Control
Elevation Sys. = (4) Post Jack Screw
Total Hp. = 34 Hp.

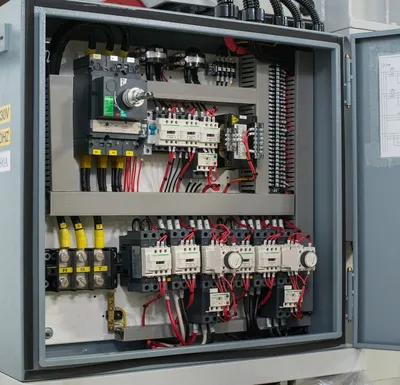

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Operator Panel = Fixed
Pass-Line = 32”
Min. Length = 13”
Min. Width = 1-1/2”
Max. Width = 16”
Min. Thickness = 3/8”
Max. Thickness = 6-1/2”
Cutter Head RPM = 5175 RPM

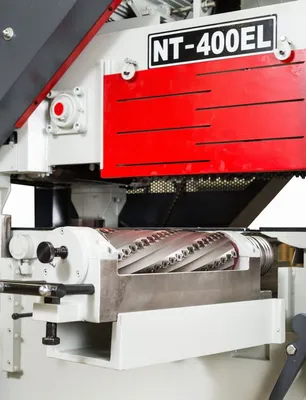

Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 5” x 16”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 110 Inserts
Insert Size = 15 x 15 x 2.5 mm
No. of Heads = 2
Dust Collection = (2) 6” @ 1962 CFM
Digital Display = Elevation
Powered Rollers = (2) Top (2) Bottom
Idle Rollers = (1) Top (1) Bottom
Hold Down Style = Chip Breakers/ Pressure Plate
No. of Spikes = 700 Spikes
Rear E Stop = Push Button
Guarding = High Visibility Guarding
Oiler = Auto Oiler
Low Oil Warning = Low Oil Shut-off
Frame Const. = Cast/Steel Construction
Chrome Bed = .004” Chrome Plated Bed
Slip Clutch = Clutch on Chain Drive
Decible Rating = 79 dB
Net Weight = 5990 Lbs.
Gross Weight = 6195 Lbs.
Machine Dims. = 98” x 50” x 70”
Packaging Dims = 101” x 46” x 80”
