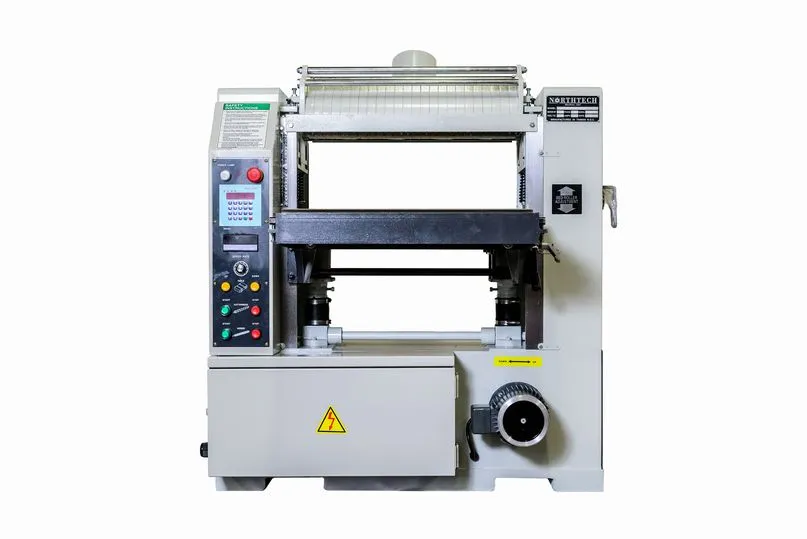

Northtech NT 24-15HCVSXL 15 HP Single Surface Planer (w/ Helical Cutter Head)

This Northtech NT 24-15HCVSXL series single-surface planer accepts material up to 7-3/4″ (H) by 24″ (W). A 15 HP motor drives the 3-3/4″ (diameter) helical cutter head with six (6) rows of 4-way carbide inserts. The cutter head is dynamically balanced to ensure a quieter operation and smoother cuts. An efficient 1 HP motor provides steady feed rates from 0 to 75 FPM, precisely controlled through a variable frequency drive. Digital displays for both the feed-rate and cutter height allow quick set-up and accurate adjustment.

 Cutterhead motor:  15HP, 3PH 230V or 460V
 Stocking thickness range:  3/16″ – 7.874″
 Max depth of cut:  5mm (3/16″)
 Max. width of stock:  610mm (24″)
 Cutterhead diameter:  80mm (3-1/4″)
 Power table motor: 1HP
 Feed drive motor:  1HP

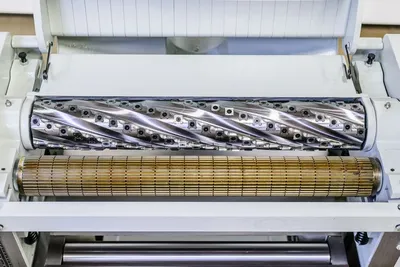

 24″ Helical Head with (6) rows of 15 x 15 x 2.5mm 4-way carbide inserts.
 The spiral cutter head provides a high chip removal rate and superior surface finish at low noise levels.
 Range of feed speed:  0-75 ft./min. variable inverter.

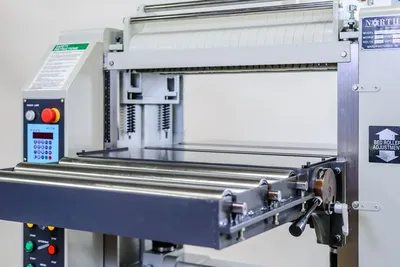

 Quick-adjust bed rollers

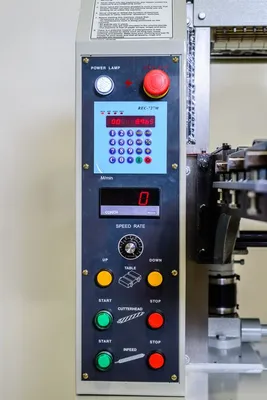

 Powered table elevation for fast and convenient thickness setting via digital control.
 Extra-heavy rib-reinforced cast iron table with a precision ground surface.

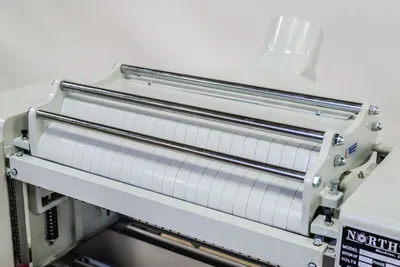

 Corrugated sectional infeed roller has independent sections for running strip stock of varying thicknesses.
 Table area:  25″ x 27-1/4″ (635 x 692mm)
 Net weight 1,525 lbs.  Gross weight 1,630 lbs.
 Packing dimensions:  (L) 49″ x (W) 36″ x (H) 54″
 (1) Toolbox
 The warranty is one-year parts
 All machines are tested stateside prior to shipment providing trouble-free start-up.
Top Head Hp. = 15 Hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 39/19.5 Amps
Feed Hp. = 1 Hp.
Feed System = Segmented Roller / Power Rolle

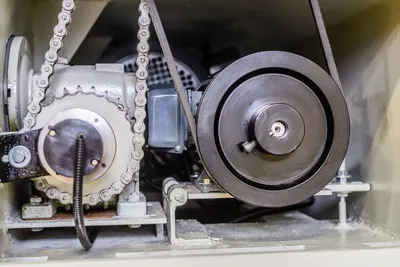

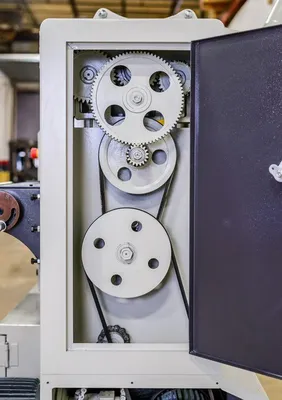

Drive System = Belt
Feed Speed = 5 – 70 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 1 Hp.
Elevation Style = REC 727M Elevation Control

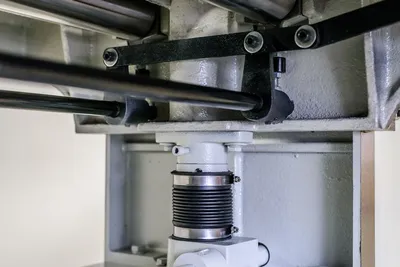

Elevation Sys. = (2) Post Jack Screw
Total Hp. = 17 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Programmable = REC 727M Elevation Control
Min. Length = 10”
Max. Width = 24”
Min. Thickness = 3/16″
Max. Thickness = 7-3/4”
Cutter Head RPM = 5250 Rpm
Tooling = 15 x 15 x 2.5 mm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 3-3/4” x 24”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 144 Inserts
Insert Size = 15 x 15 x 2.5 mm
Dust Collection = 981 CFM @ Extraction Point
Dust Port Out = 6” Top
Digital Display = Elevation and Feed Speed
Powered Rollers = 2 Top Powered Rollers
Idle Rollers = (2) Idle Bed Rollers
Pressure Shoes = 24” Spring Loaded Pressure
Frame Const. = 1/4” Steel/Cast Iron Construc
Infeed Table = 15-1/2” 3 Roll Infeed Table
Decible Rating = 77 dB
Net Weight = 1525 Lbs.
Gross Weight = 1630 Lbs.
Machine Dims. = 43” x 45” x 55”
Packaging Dims = 36” x 49” x 54”
